Automotive

On-Board DC/DC Converter

Wolfspeed Silicon Carbide is ready for the challenges that today’s EVs present, especially when it comes to on-board DC/DC converters.

Past to Present: A Revolution in Automotive Electrical System Design

The electrical systems in vehicles of the past were simple — responsible for basic lighting, providing ignition, and perhaps powering a basic sound system. Modern vehicles, however, have far more complex electrical requirements, including advanced lighting systems, infotainment platforms, navigational and guidance controls, and much more. Electric vehicles (EVs), in particular, have taken power requirements to a new level, and the rise of autonomous vehicles are unlocking even further complications in power design.

What this means for automotive power is changes to the on-board DC/DC converter responsible for providing power to this complex and diverse set of systems.

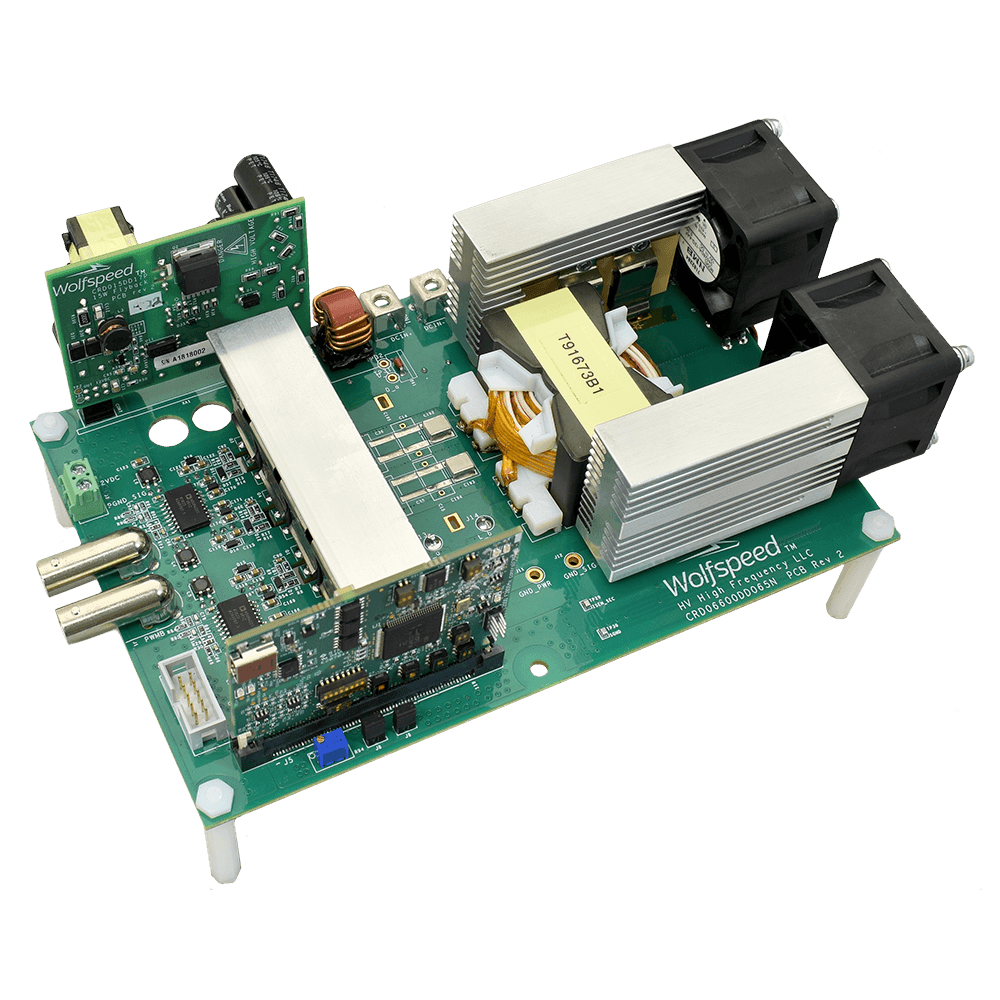

Wolfspeed's 6.6 kW High Frequency DC-DC Converter Reference Design

What Is an On-Board DC/DC Converter?

The on-board DC/DC converter is responsible for taking the DC power from the battery and converting and regulating the voltage to meet the needs of this varying set of systems. It must do so in real time, as many systems have interdependencies that require them to work as a collective unit. Failure can be catastrophic.

Traditional Silicon: Is It Up to the Challenge?

For EVs specifically, the need to have reliable and consistent power is paramount. Traditional silicon is simply not up for the challenges of modern EVs. Wolfspeed Silicon Carbide (SiC) on the other hand, is specially built to meet this need. With greater reliability and improved efficiency over any silicon-based solution, Wolfspeed Silicon Carbide is ready for the challenges that today’s EVs present, especially when it comes to on-board DC/DC converters.

Improved Reliability, Cleaner Power from Wolfspeed Silicon Carbide

Wolfspeed Silicon Carbide is uniquely capable of incredible reliability and efficiency, even in the most demanding power applications. In electric vehicle DC/DC converter applications, this can mean keeping mission-critical systems supplied with the right voltages consistently and sustainably, as well as keeping overall vehicle weight down for improved performance and efficiency.

Up To

30%

Lower Losses

Up To

50%

Higher Power Density

Up To

15%

System Cost Savings

Wolfspeed EV Products to Support On-Board DC/DC Converter Design

Wolfspeed offers a comprehensive portfolio of Silicon Carbide products that offer the capability and performance needed for modern on-board DC/DC converters. At the forefront of this selection of cutting-edge tech is our E-Series, a family of ruggedized SiC components that meet AEC-Q101 automotive standards.

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

View All

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

No filters selected, showing all 34 products

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters - Filter By

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

Product SKU	Blocking Voltage	R_DS(ON) at 25°C	Generation	Current Rating	Gate Charge Total	Output Capacitance	Total Power Dissipation (P_TOT)	T_jmax	Package	Qualification
E3M0060065D	650 V	60 mΩ	Gen 3	37 A	46 nC	72 pF	131 W	175 °C	TO-247-3	Automotive
E3M0060065K	650 V	60 mΩ	Gen 3	37 A	49 nC	72 pF	131 W	175 °C	TO-247-4	Automotive
E3M0045065K	650 V	45 mΩ	Gen 3	46 A	64 nC	99 pF	150 W	175 °C	TO-247-4	Automotive
E4M0015075J2	750 V	15 mΩ	Gen 4	156 A	180 nC	255 pF	554 W	175 °C	TO-263-7 XL	Automotive
E4M0025075J2	750 V	25 mΩ	Gen 4	84 A	114 nC	158 pF	281 W	175 °C	TO-263-7 XL	Automotive
E4M0045075J2	750 V	45 mΩ	Gen 4	46 A	62 nC	95 pF	172 W	175 °C	TO-263-7 XL	Automotive
E4M0060075J2	750 V	60 mΩ	Gen 4	36 A	50 nC	77 pF	131 W	175 °C	TO-263-7 XL	Automotive
E4M0015075K1	750 V	15 mΩ	Gen 4	128 A	191 nC	255 pF	372 W	175 °C	TO-247-4 LP	Automotive
E4M0025075K1	750 V	25 mΩ	Gen 4	80 A	119 nC	158 pF	262 W	175 °C	TO-247-4 LP	Automotive
E4M0045075K1	750 V	45 mΩ	Gen 4	42 A	65 nC	95 pF	139 W	175 °C	TO-247-4 LP	Automotive
E4M0060075K1	750 V	60 mΩ	Gen 4	35 A	52 nC	69 pF	126 W	175 °C	TO-247-4 LP	Automotive
E3M0120090J	900 V	120 mΩ	Gen 3	22 A	18 nC	48 pF	83 W	150 °C	TO-263-7	Automotive
E3M0075120K	1200 V	75 mΩ	Gen 3	32 A	55 nC	58 pF	145 W	175 °C	TO-247-4	Automotive
E3M0075120D	1200 V	75 mΩ	Gen 3	32 A	57 nC	58 pF	145 W	175 °C	TO-247-3	Automotive
E3M0016120K	1200 V	16 mΩ	Gen 3	125 A	223 nC	231 pF	483 W	175 °C	TO-247-4	Automotive
E3M0021120K	1200 V	21 mΩ	Gen 3	104 A	177 nC	174 pF	405 W	175 °C	TO-247-4	Automotive
E3M0032120K	1200 V	32 mΩ	Gen 3	67 A	113 nC	126 pF	278 W	175 °C	TO-247-4	Automotive
E3M0040120K	1200 V	40 mΩ	Gen 3	57 A	94 nC	100 pF	242 W	175 °C	TO-247-4	Automotive
E3M0160120K	1200 V	160 mΩ	Gen 3	17 A	32 nC	31 pF	103 W	175 °C	TO-247-4	Automotive
E3M0160120D	1200 V	160 mΩ	Gen 3	17 A	33 nC	31 pF	103 W	175 °C	TO-247-3	Automotive
E3M0075120J2	1200 V	75 mΩ	Gen 3	34 A	52 nC	58 pF	172 W	175 °C	TO-263-7 XL	Automotive
E3M0021120J2	1200 V	21 mΩ	Gen 3	114 A	169 nC	174 pF	500 W	175 °C	TO-263-7 XL	Automotive
E3M0032120J2	1200 V	32 mΩ	Gen 3	74 A	108 nC	126 pF	341 W	175 °C	TO-263-7 XL	Automotive
E3M0040120J2	1200 V	40 mΩ	Gen 3	63 A	91 nC	100 pF	294 W	175 °C	TO-263-7 XL	Automotive
E3M0160120J2	1200 V	160 mΩ	Gen 3	18 A	28 nC	31 pF	104 W	175 °C	TO-263-7 XL	Automotive
E4M0013120K	1200 V	13 mΩ	Gen 4	153 A	293 nC	202 pF	517 W	175 °C	TO-247-4	Automotive
E3M0016120U2 Coming Soon	1200 V	16 mΩ	Gen 3	125 A				175 °C	TSC (U2)	Automotive
E3M0021120U2 Coming Soon	1200 V	21 mΩ	Gen 3	114 A				175 °C	TSC (U2)	Automotive
E3M0032120U2 Coming Soon	1200 V	32 mΩ	Gen 3	74 A				175 °C	TSC (U2)	Automotive
E3M0040120U2 Coming Soon	1200 V	40 mΩ	Gen 3	63 A				175 °C	TSC (U2)	Automotive
E3M0075120U2 Coming Soon	1200 V	75 mΩ	Gen 3	34 A				175 °C	TSC (U2)	Automotive
E3M0160120U2 Coming Soon	1200 V	160 mΩ	Gen 3	18 A				175 °C	TSC (U2)	Automotive
E3M0900170D New	1700 V	900 mΩ	Gen 3	4.4 A	8 nC	7.96 pF	41 W	175 °C	TO-247-3	Automotive
E3M0900170J New	1700 V	900 mΩ	Gen 3	4.4 A	8 nC	7.96 pF	41 W	175 °C	TO-263-7	Automotive

End of Section

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

View All

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

No filters selected, showing all 12 products

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters - Filter By

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

Product SKU	Blocking Voltage	R_DS(ON) at 25°C	Generation	Current Rating	Gate Charge Total	Output Capacitance	Total Power Dissipation (P_TOT)	T_jmax	Package	Qualification
C3M0025065D	650 V	25 mΩ	Gen 3	97 A	108 nC	178 pF	325 W	175 °C	TO-247-3	Industrial
C3M0025065K	650 V	25 mΩ	Gen 3	97 A	112 nC	178 pF	326 W	175 °C	TO-247-4	Industrial
C3M0045065D	650 V	45 mΩ	Gen 3	49 A	63 nC	101 pF	176 W	175 °C	TO-247-3	Industrial
C3M0045065K	650 V	45 mΩ	Gen 3	49 A	63 nC	101 pF	176 W	175 °C	TO-247-4	Industrial
C3M0120065D	650 V	120 mΩ	Gen 3	22 A	28 nC	45 pF	98 W	175 °C	TO-247-3	Industrial
C3M0120065J	650 V	120 mΩ	Gen 3	21 A	26 nC	45 pF	86 W	175 °C	TO-263-7	Industrial
C3M0120065K	650 V	120 mΩ	Gen 3	22 A	28 nC	45 pF	98 W	175 °C	TO-247-4	Industrial
C3M0060065D	650 V	60 mΩ	Gen 3	29 A	46 nC	80 pF	150 W	175 °C	TO-247-3	Industrial
C3M0060065J	650 V	60 mΩ	Gen 3	36 A	46 nC	80 pF	136 W	175 °C	TO-263-7	Industrial
C3M0060065K	650 V	60 mΩ	Gen 3	37 A	46 nC	80 pF	150 W	175 °C	TO-247-4	Industrial
C3M0280090D	900 V	280 mΩ	Gen 3	11.5 A	9.5 nC	20 pF	54 W	150 °C	TO-247-3	Industrial
C3M0280090J	900 V	280 mΩ	Gen 3	11.5 A	9.5 nC	20 pF	50 W	150 °C	TO-263-7	Industrial

End of Section

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters

View All

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters

No filters selected, showing all 7 products

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters - Filter By

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters

Product SKU	Blocking Voltage	Current Rating	Generation	Forward Voltage(V_F(type))	Maximum Continuous Current (IF)	Total Capacitive Charge (Q_C (typ))	Total Power Dissipation (P_TOT)	Package	Qualification
E3D08065G	650 V	8 A	Gen 3	1.5 V	8 A	50 nC	176 W	TO-263-2	Automotive
E3D20065D	650 V	20 A	Gen 3	1.5 V	20 A	110 nC	250 W	TO-247-3	Automotive
E3D30065D	650 V	30 A	Gen 3	1.5 V	30 A	43 nC	179 W	TO-247-3	Automotive
E4D10120A	1200 V	10 A	Gen 4	1.5 V	10 A	56 nC	166 W	TO-220-2	Automotive
E4D20120A	1200 V	20 A	Gen 4	1.5 V	20 A	99 nC	242 W	TO-220-2	Automotive
E4D20120D	1200 V	20 A	Gen 4	1.5 V	20 A	52 nC per leg	176 W	TO-247-3	Automotive
E4D20120G	1200 V	20 A	Gen 4	1.5 V	20 A	110 nC	250 W	TO-263-2	Automotive

End of Section

Reference Designs to Accelerate Your Time to Market

Wolfspeed not only offers the solutions to bring your design into the future of automotive technology, but our Reference Designs can help you accelerate your design cycle process. Reference Designs include full system design resource package with schematics, BOM, and more.

Featured Reference Designs for On-Board DC/DC Converters

View All

Featured Reference Designs for On-Board DC/DC Converters

No filters selected, showing all 6 products

Featured Reference Designs for On-Board DC/DC Converters - Filter By

Featured Reference Designs for On-Board DC/DC Converters

Product SKU	Name	Type	Topology	Power	Discrete/Module	Package	Device SKU(s)	Designed By
CRD-06600DD065N	6.6 kW High Frequency LLC	DC to DC	LLC	6.6kW	Discrete	TO-247-3	C3M0060065D C6D10065A	Wolfspeed
CRD-06600FF10N	6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Efficiency	AC to DC, DC to DC	Totem-Pole PFC and CLLC	6.6kW	Discrete	TO-247-4	C3M0065100K	Wolfspeed
TIDM-02002	6.6 kW Bi-Directional CLLLC	DC to DC	CLLLC	6.6kW	Discrete	TO-247-4	C3M0030090K	Texas Instruments
CRD-06600FF065N-K	6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Power Density	AC to DC, DC to DC	Totem-Pole PFC and CLLC	6.6kW	Discrete	TO-247-4, TO-247-3	C3M0060065K C3M0060065D	Wolfspeed
TIDA-010054	10 kW Phase Shift DAB	DC to DC	DAB (Dual Active Bridge)	10kW	Discrete	TO-247-4	C3M0016120K C3M0030090K	Texas Instruments
CRD-22DD12N	22 kW Bi-Directional CLLC	DC to DC	CLLC	22kW	Discrete	TO-247-4	C3M0032120K E3M0032120K	Wolfspeed

End of Section
