Industrial

Datacenter & Server Power Supplies

SiC technology: a powerful alternative to inefficient Si components in Server Power Supplies.

Wolfspeed Silicon Carbide: More with Less

When datacenters are fitted with power supplies built with Wolfspeed’s Silicon Carbide (SiC) MOSFETs and diodes, they can deliver more computing power per square foot–with a lower electric bill.

Wolfspeed's 6.6 kW High Frequency DC-DC Converter Reference Design

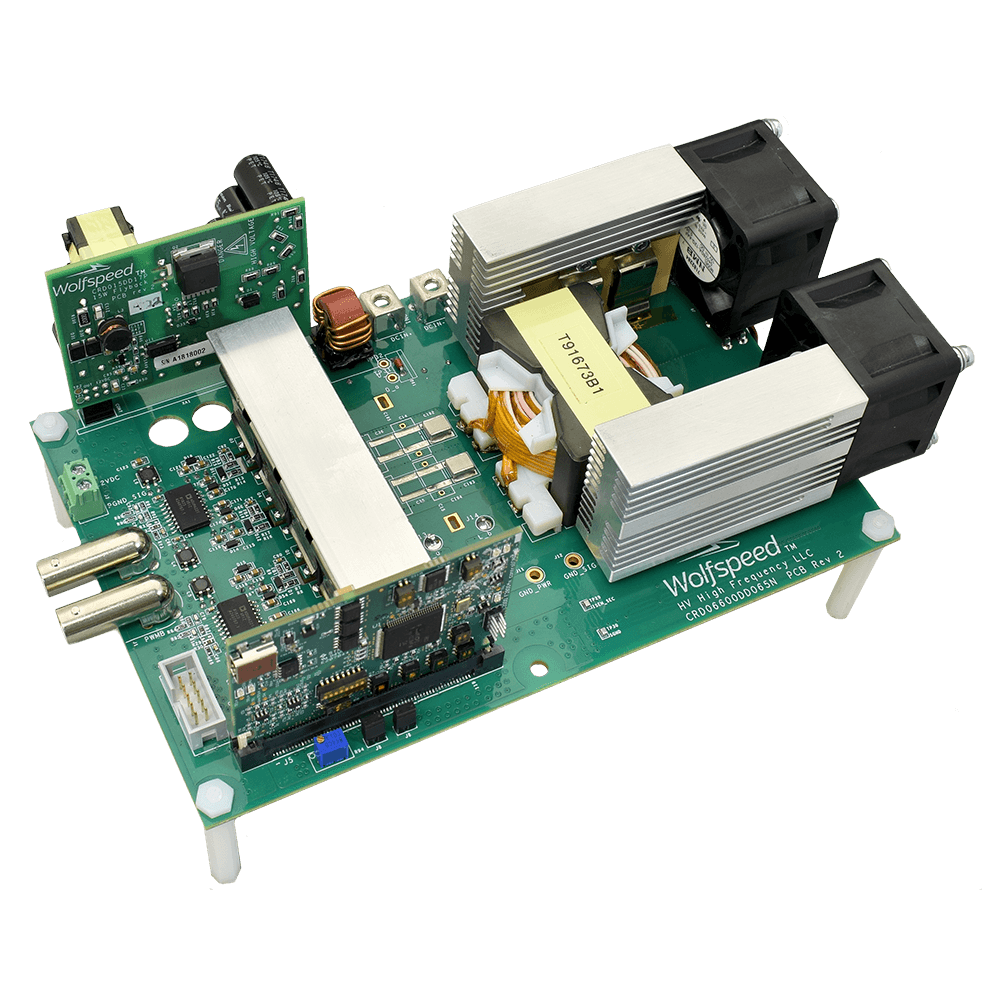

Product shot of Wolfspeed's Reference Design of a 6.6 kW High Frequency DC-DC Converter. — Wolfspeed's 6.6 kW High Frequency DC-DC Converter Reference Design

Server & Telecom Power Supplies

A full 2% of all electrical energy in the U.S. is consumed by data centers, and that number is growing worldwide. Power supplies designed around Wolfspeed’s Silicon Carbide products improve thermal performance sufficiently to create up to 40% savings in energy costs on cooling alone. In the period from 2010 and 2020, servers running SiC devices will have contributed 620 billion kWh in energy savings. Imagine how much more energy can be saved over the next 10 years. Silicon Carbide also enables designers to meet the requirements for the 80+Titanium standard, and Wolfspeed’s products are ready to meet even tougher future standards.

Wolfspeed modules enable Sinexcel to shrink power quality solutions by 50% and improve peak efficiency to 99%

Wolfspeed WolfPACK™ power modules enabled Sinexcel Electric Company, a global power supply manufacturer, to achieve 50% size and 40% weight reductions in two of their products – significantly improving cabinet capacities for the data centers they power.

“To meet the growing need for a power quality solution that has higher efficiency, higher power density, smaller size and lighter weight, we partnered with Wolfspeed to utilize its industry leading Wolfspeed WolfPACK™ Silicon Carbide power modules into our most recently launched P5 series Active Power Filter (APF) and Static Var Generator (SVG). This is a groundbreaking application of high-power silicon carbide in Active Power Filter (APF) and Static Var Generator (SVG) and will dramatically improve performance and market competitiveness of our power quality solution.”

– Mr. Longteng Zhao, General Manager of Power Quality Division, Sinexcel

Read the Case Study

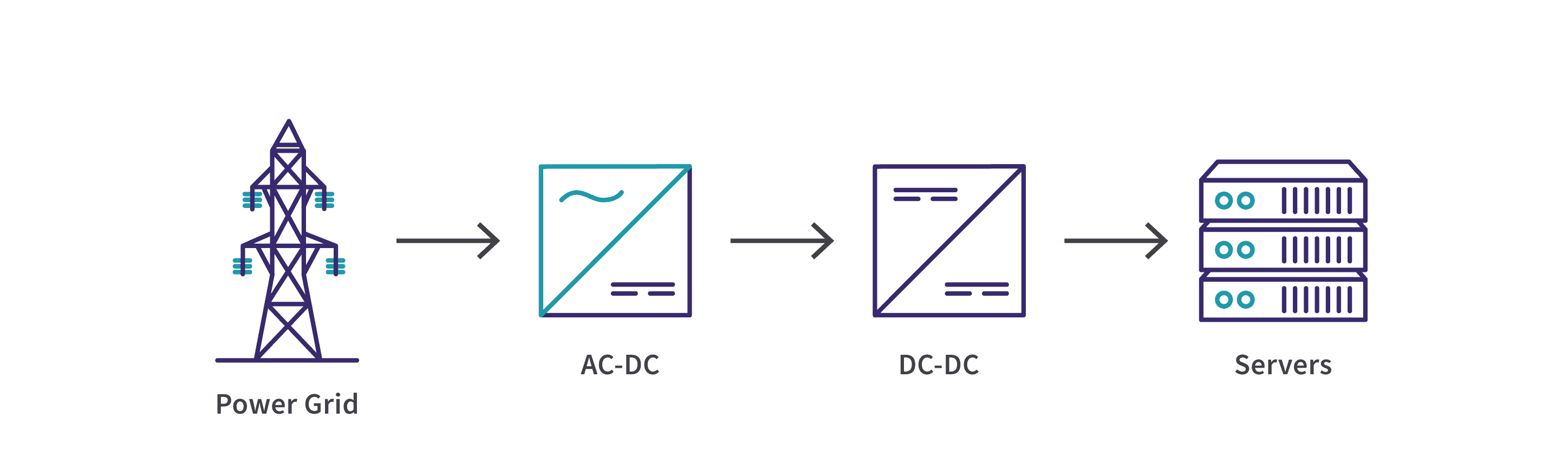

Server Power Supplies Diagram — Server Power Supply

Videos

Now Playing: Exceeding Power Demands for Today’s Enterprise Server Applications

Data centers consume a mind-boggling 2% of all energy in the United States, and that number is expected to escalate worldwide. Learn how Wolfspeed Silicon Carbide helps to meet the emerging global energy standards and dramatically accelerates your design journey in critical applications such as enterprise servers.

Available videos

Wolfspeed Silicon Carbide Components for Server Power Supplies

Wolfspeed products represent the culmination of years of experience and expertise, where quality meets innovation to help bring your design forward. Wolfspeed’s 650V Silicon Carbide MOSFETs and Schottky diodes offer the industry’s lowest drain-to-source on-resistances and forward voltages, enabling the highest levels of efficiency to meet the highest standards of performance.

650V Discrete SiC MOSFETs for Server Power Supplies

View All

650V Discrete SiC MOSFETs for Server Power Supplies

No filters selected, showing all 18 products

650V Discrete SiC MOSFETs for Server Power Supplies - Filter By

650V Discrete SiC MOSFETs for Server Power Supplies

Product SKU	Blocking Voltage	R_DS(ON) at 25°C	Generation	Current Rating	Gate Charge Total	Output Capacitance	Total Power Dissipation (P_TOT)	T_jmax	Package
C3M0120065J	650 V	120 mΩ	Gen 3	21 A	26 nC	45 pF	86 W	175 °C	TO-263-7
C3M0120065L	650 V	120 mΩ	Gen 3	21 A	26 nC	45 pF	86 W	175 °C	TOLL
C3M0120065D	650 V	120 mΩ	Gen 3	22 A	28 nC	45 pF	98 W	175 °C	TO-247-3
C3M0120065K	650 V	120 mΩ	Gen 3	22 A	28 nC	45 pF	98 W	175 °C	TO-247-4
C3M0060065D	650 V	60 mΩ	Gen 3	29 A	46 nC	80 pF	150 W	175 °C	TO-247-3
C3M0060065J	650 V	60 mΩ	Gen 3	36 A	46 nC	80 pF	136 W	175 °C	TO-263-7
C3M0060065K	650 V	60 mΩ	Gen 3	37 A	46 nC	80 pF	150 W	175 °C	TO-247-4
C3M0060065L	650 V	60 mΩ	Gen 3	39 A	46 nC	72 pF	131 W	175 °C	TOLL
C3M0045065J1	650 V	45 mΩ	Gen 3	47 A	61 nC	101 pF	147 W	175 °C	TO-263-7 XL
C3M0045065D	650 V	45 mΩ	Gen 3	49 A	63 nC	101 pF	176 W	175 °C	TO-247-3
C3M0045065K	650 V	45 mΩ	Gen 3	49 A	63 nC	101 pF	176 W	175 °C	TO-247-4
C3M0045065L	650 V	45 mΩ	Gen 3	49 A	59 nC	101 pF	164 W	175 °C	TOLL
C3M0025065L	650 V	25 mΩ	Gen 3	77 A	111 nC	186 pF	326 W	175 °C	TOLL
C3M0025065J1	650 V	25 mΩ	Gen 3	80 A	109 nC	178 pF	271 W	175 °C	TO-263-7 XL
C3M0025065D	650 V	25 mΩ	Gen 3	97 A	108 nC	178 pF	325 W	175 °C	TO-247-3
C3M0025065K	650 V	25 mΩ	Gen 3	97 A	112 nC	178 pF	326 W	175 °C	TO-247-4
C3M0015065D	650 V	15 mΩ	Gen 3	120 A	188 nC	289 pF	416 W	175 °C	TO-247-3
C3M0015065K	650 V	15 mΩ	Gen 3	120 A	188 nC	289 pF	416 W	175 °C	TO-247-4

End of Section

Discrete SiC Schottky Diodes for Server Power Supplies

View All

Discrete SiC Schottky Diodes for Server Power Supplies

No filters selected, showing all 13 products

Discrete SiC Schottky Diodes for Server Power Supplies - Filter By

Discrete SiC Schottky Diodes for Server Power Supplies

Product SKU	Blocking Voltage	Current Rating	Generation	Forward Voltage(V_F(type))	Maximum Continuous Current (IF)	Total Capacitive Charge (Q_C (typ))	Total Power Dissipation (P_TOT)	Package
C6D04065A	650 V	4 A	Gen 6	1.27 V	4 A	16 nC	73 W	TO-220-2
C6D04065E	650 V	4 A	Gen 6	1.27 V	4 A	16 nC	52 W	TO-252-2
C6D06065A	650 V	6 A	Gen 6	1.27 V	6 A	23 nC	73 W	TO-220-2
C6D06065E	650 V	6 A	Gen 6	1.27 V	6 A	23 nC	68 W	TO-252-2
C6D06065Q	650 V	6 A	Gen 6	1.27 V	6 A	23 nC	69 W	QFN 8x8
C6D08065A	650 V	8 A	Gen 6	1.27 V	8 A	29 nC	92.6 W	TO-220-2
C6D08065E	650 V	8 A	Gen 6	1.27 V	8 A	29 nC	85 W	TO-252-2
C6D08065Q	650 V	8 A	Gen 6	1.27 V	8 A	29 nC	92 W	QFN 8x8
C6D10065A	650 V	10 A	Gen 6	1.27 V	10 A	35 nC	109 W	TO-220-2
C6D10065E	650 V	10 A	Gen 6	1.27 V	10 A	34 nC	99 W	TO-252-2
C6D10065Q	650 V	10 A	Gen 6	1.27 V	10 A	34 nC	119 W	QFN 8x8
C6D16065D	650 V	16 A	Gen 6	1.27 V	16 A	29 nC	100 W	TO-247-3
C6D20065D	650 V	20 A	Gen 6	1.27 V	20 A	35 nC	116 W	TO-247-3

End of Section

Reference Designs to Accelerate Your Time to Market

Wolfspeed not only offers the solutions to bring your design into the future of automotive technology, but our Reference Designs can help you accelerate your design cycle process. Reference Designs include full system design resource package with schematics, BOM, and more.

Featured Reference Designs for Server Power Supplies

View All

Featured Reference Designs for Server Power Supplies

No filters selected, showing all 5 products

Featured Reference Designs for Server Power Supplies - Filter By

Featured Reference Designs for Server Power Supplies

Product SKU	Name	Type	Topology	Power	Discrete/Module	Package	Device SKU(s)	Designed By
CRD-02AD065N	2.2 kW Bridgeless Totem-Pole PFC	AC to DC	Totem-Pole PFC	2.2kW	Discrete	TO-247-3, TO-263-7	C3M0060065D C3M0060065J	Wolfspeed
CRD-03600AD065E-L	3.6 kW Bridgeless Totem-Pole PFC with Synchronous SiC MOSFETs	AC to DC	Totem-Pole PFC	3.6kW	Discrete	TOLL, TO-247-3	C3M0045065L C3M0015065D	Wolfspeed
CRD-06600DD065N	6.6 kW High Frequency LLC	DC to DC	LLC	6.6kW	Discrete	TO-247-3	C3M0060065D C6D10065A	Wolfspeed
TIDA-01604	6.6 kW Bridgeless Totem-Pole PFC	AC to DC	Interleaved Totem-Pole PFC	6.6kW	Discrete	TO-247-3, TO-247-4	C3M0065100K	Texas Instruments
CRD-22AD12N	22 kW Bi-Directional Active Front End (AFE)	AC to DC	Three-Phase, 2-Level	22kW	Discrete	TO-247-4	C3M0032120K	Wolfspeed

End of Section
