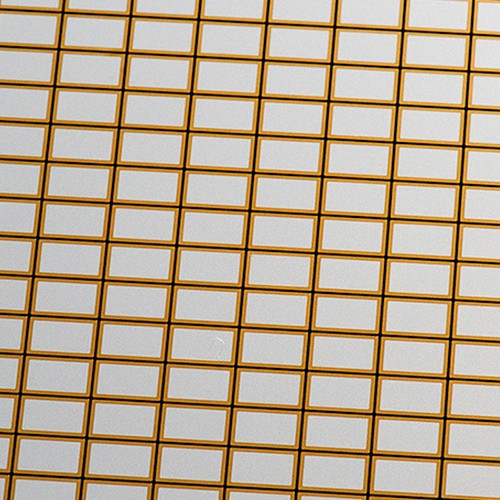

裸晶片碳化矽肖特基二極體

將封裝客製化擴展至 650 V 或 1200 V 系統，使用 Wolfspeed 碳化矽裸晶片肖特基二極體，其採用混合 Pin 肖特基 (MPS) 設計，可實現更強的突波能力。

功率應用論壇

產品

No filters selected, showing all 8 products

Filter By

產品SKU	在線購買	數據表	Status	認證	阻斷電壓	額定電流	總電容電荷 (Q[[C (typ)]])	最大結溫	世代
CPW6-1200-Z010A	Purchase CPW6-1200-Z010A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1200 V	10 A	42 nC	175 °C	Gen 6
CPW6-1200-Z015A	Purchase CPW6-1200-Z015A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1200 V	15 A	90 nC	175 °C	Gen 6
CPW6-1200-Z020A	Purchase CPW6-1200-Z020A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1200 V	20 A	119 nC	175 °C	Gen 6
CPW6-1200-Z050A	Purchase CPW6-1200-Z050A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1200 V	50 A	279 nC	175 °C	Gen 6
CPW6-1700-Z005A	Purchase CPW6-1700-Z005A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1700 V	5 A	79 nC	175 °C	Gen 6
CPW6-1700-Z010A	Purchase CPW6-1700-Z010A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1700 V	10 A	126 nC	175 °C	Gen 6
CPW6-1700-Z025A	Purchase CPW6-1700-Z025A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1700 V	25 A	325 nC	175 °C	Gen 6
CPW6-1700-Z050A	Purchase CPW6-1700-Z050A Create a BOM or add to cart on arrow.com Arrow Electronics Richardson RFPD Semi Dice Inc MEV Elektronik Service GmbH ATM Electronic Corp Changnam INT LTD		Active	Industrial	1700 V	50 A	479 nC	175 °C	Gen 6

產品系列

600 V Bare Die Silicon Carbide Schottky Diodes – Gen 2

600 V Bare Die Silicon Carbide Schottky Diodes – Gen 3

650 V Bare Die Silicon Carbide Schottky Diodes – Gen 2

650 V Bare Die Silicon Carbide Schottky Diode – Gen 3
