    碳化矽功率模塊

    採用我們符合業界標準封裝和針對碳化矽優化封裝的功率模組，可提高系統級效率，縮小系統尺寸並減輕重量，這些模組專為嚴峻的高電壓環境所設計。
    • 概述
    • 產品
    • 特色資源
    • 檔案、工具和支援
    • 概述
    • 產品
    • 特色資源
    • 檔案、工具和支援

    功率模組封裝

    瀏覽我們的產品組合，涵蓋業界標準的功率模組封裝與應用優化的功率模組封裝，並選擇尺寸規格符合您設計需求的產品。

    產品

    No filters selected, showing all 50 products

    Filter By

    產品SKU
    在線購買
    索取樣品
    數據表
    CAD模型
    Status
    封裝
    配置
    阻斷電壓
    額定電流
    RDS(ON) 在 25°C
    最大結溫
    模組尺寸
    Pre-Applied TIM
    認證
    世代
    瀏覽產品
    ECB2R1M12YM3L
    下載
    下載
    Active
    Y
    Six-pack (three-phase)
    1200 V
    600 A
    2.1 mΩ
    175 °C
    154.5 x 126.5 x 32 mm
    No
    Automotive
    Gen 3
    Front & bottom view of the Wolfspeed YM3L silicon carbide power module.
    ECB2R8M12YM3L
    下載
    下載
    Active
    Y
    Six-pack (three-phase)
    1200 V
    460 A
    2.8 mΩ
    175 °C
    154.5 x 126.5 x 32 mm
    No
    Automotive
    Gen 3
    Front & bottom view of the Wolfspeed YM3L silicon carbide power module.
    ECB4R3M12YM3L
    下載
    下載
    Active
    Y
    Six-pack (three-phase)
    1200 V
    330 A
    4.3 mΩ
    175 °C
    154.5 x 126.5 x 32 mm
    No
    Automotive
    Gen 3
    Front & bottom view of the Wolfspeed YM3L silicon carbide power module.
    ECB4R3M12YM3
    下載
    下載
    Active
    Y
    Six-pack (three-phase)
    1200 V
    330 A
    4.3 mΩ
    175 °C
    154.5 x 126.5 x 32 mm
    No
    Automotive
    Gen 3
    Front & bottom view of the Wolfspeed YM3 silicon carbide power module.
    ECB2R8M12YM3
    下載
    下載
    Active
    Y
    Six-pack (three-phase)
    1200 V
    460 A
    2.8 mΩ
    175 °C
    154.5 x 126.5 x 32 mm
    No
    Automotive
    Gen 3
    Front & bottom view of the Wolfspeed YM3 silicon carbide power module.
    ECB2R1M12YM3
    下載
    下載
    Active
    Y
    Six-pack (three-phase)
    1200 V
    600 A
    2.1 mΩ
    175 °C
    154.5 x 126.5 x 32 mm
    No
    Automotive
    Gen 3
    Front & bottom view of the Wolfspeed YM3 silicon carbide power module.
    CAB525F12XM3
    下載
    下載
    Active
    X
    Half-Bridge
    1200 V
    525 A
    2.6 mΩ
    175 °C
    80 x 53 x 23.3 mm
    No
    Industrial
    Gen 3
    Product shot of Wolfspeed's XM3 Half-bridge SiC power module package
    EDB010M12TM4L
    下載
    下載
    Active
    T
    Single Switch
    1200 V
    160 A
    9.3 mΩ
    175 °C
    43.65 x 18.9 x 19 mm
    No
    Automotive
    Gen 4
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB010M12TM4
    下載
    下載
    Active
    T
    Single Switch
    1200 V
    160 A
    9.3 mΩ
    175 °C
    43.65 x 18.9 x 18.5 mm
    No
    Automotive
    Gen 4
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB007M12TM4L
    下載
    下載
    Active
    T
    Single Switch
    1200 V
    250 A
    6.2 mΩ
    175 °C
    43.65 x 18.9 x 19 mm
    No
    Automotive
    Gen 4
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB007M12TM4
    下載
    下載
    Active
    T
    Single Switch
    1200 V
    250 A
    6.2 mΩ
    175 °C
    43.65 x 18.9 x 18.5 mm
    No
    Automotive
    Gen 4
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB005M12TM4L
    下載
    下載
    Active
    T
    Single Switch
    1200 V
    320 A
    4.6 mΩ
    175 °C
    43.65 x 18.9 x 19 mm
    No
    Automotive
    Gen 4
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB005M12TM4
    下載
    下載
    Active
    T
    Single Switch
    1200 V
    320 A
    4.6 mΩ
    175 °C
    43.65 x 18.9 x 18.5 mm
    No
    Automotive
    Gen 4
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB003M06TM3L
    下載
    下載
    Active
    T
    Single Switch
    650 V
    440 A
    3.3 mΩ
    175 °C
    43.65 x 18.9 x 19 mm
    No
    Automotive
    Gen 3
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB003M06TM3
    下載
    下載
    Active
    T
    Single Switch
    650 V
    440 A
    3.3 mΩ
    175 °C
    43.65 x 18.9 x 18.5 mm
    No
    Automotive
    Gen 3
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB007M06TM3L
    下載
    下載
    Active
    T
    Single Switch
    650 V
    220 A
    6.5 mΩ
    175 °C
    43.65 x 18.9 x 19 mm
    No
    Automotive
    Gen 3
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB007M06TM3
    下載
    下載
    Active
    T
    Single Switch
    650 V
    220 A
    6.5 mΩ
    175 °C
    43.65 x 18.9 x 18.5 mm
    No
    Automotive
    Gen 3
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB004M06TM3
    下載
    下載
    Active
    T
    Single Switch
    650 V
    330 A
    4.4 mΩ
    175 °C
    43.65 x 18.9 x 18.5 mm
    No
    Automotive
    Gen 3
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    EDB004M06TM3L
    下載
    下載
    Active
    T
    Single Switch
    650 V
    330 A
    4.4 mΩ
    175 °C
    43.65 x 18.9 x 19 mm
    No
    Automotive
    Gen 3
    Composite image of the top and bottom of a Wolfspeed silicon carbide (SiC) power module in a TM package.
    HAB900C33LM4
    新的
    下載
    Active
    L
    Half-Bridge
    3300 V
    900 A
    2 mΩ
    175 °C
    144 x 100 x 40 mm
    No
    Industrial
    Gen 4
    Mid-angle product photography of Wolfspeed's LM Power Module
    CAB760M12HM3T
    下載
    下載
    Active
    H
    Half-Bridge
    1200 V
    760 A
    1.33 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 3

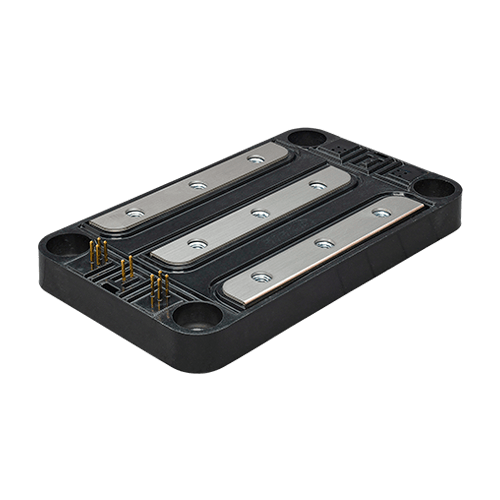

    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CAS480M12HM3T
    下載
    下載
    Active
    H
    Half-Bridge
    1200 V
    480 A
    2.29 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 3
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CAS380M17HM3T
    下載
    下載
    Active
    H
    Half-Bridge
    1700 V
    380 A
    3.3 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 3
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CAB500M17HM3T
    下載
    下載
    Active
    H
    Half-Bridge
    1700 V
    500 A
    2.5 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 3
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CAB650M17HM3T
    下載
    下載
    Active
    H
    Half-Bridge
    1700 V
    650 A
    1.67 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 3
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CAB760M12HM3RT
    下載
    下載
    Active
    H
    Half-Bridge Right GK for Paralleling
    1200 V
    760 A
    1.33 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 3
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CAR600M17HN6T
    下載
    下載
    Active
    H
    Half-Bridge Rectifier
    1700 V
    600 A
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CAR600M12HN6T
    下載
    下載
    Active
    H
    Half-Bridge Rectifier
    1200 V
    600 A
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CLB650M17HM3
    下載
    下載
    Active
    H
    Common-Source
    1700 V
    650 A
    1.42 mΩ
    175 °C
    110 x 65 x 12.2 mm
    No
    Industrial
    Gen 3
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CLB650M17HM3T
    下載
    下載
    Active
    H
    Common-Source
    1700 V
    650 A
    1.42 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 3
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CLB800M12HM3P
    下載
    下載
    Active
    H
    Common-Source
    1200 V
    800 A
    1.3 mΩ
    175 °C
    110 x 65 x 12.2 mm
    No
    Industrial
    Gen 4
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    CLB800M12HM3PT
    下載
    下載
    Active
    H
    Common-Source
    1200 V
    800 A
    1.3 mΩ
    175 °C
    110 x 65 x 12.2 mm
    Yes
    Industrial
    Gen 4
    Product image of a Wolfspeed HM High Performance 62 mm SiC Power Module in the HM3 package.
    IBB020A33GM4T
    新的
    下載
    下載
    Active
    G
    Full-Bridge
    3300 V
    100 A
    20 mΩ
    175 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Product photo of the the Wolfspeed WolfPACK™ Silicon Carbide Power Module with a high current pin
    IBB020A33GM4
    新的
    下載
    下載
    Active
    G
    Full-Bridge
    3300 V
    100 A
    20 mΩ
    175 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Product photo of the the Wolfspeed WolfPACK™ Silicon Carbide Power Module with a high current pin
    CAB004A12GM4T
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    1200 V
    200 A
    4.1 mΩ
    175 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CAB004A12GM4
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    1200 V
    200 A
    4.1 mΩ
    175 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CAB006A12GM4T
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    1200 V
    200 A
    5.3 mΩ
    175 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CAB006A12GM4
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    1200 V
    200 A
    5.3 mΩ
    175 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CHB011M12GM4T
    申請
    下載
    下載
    Active
    G
    T-Type
    1200 V
    100 A
    11 mΩ
    175 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CHB011M12GM4
    申請
    下載
    下載
    Active
    G
    T-Type
    1200 V
    100 A
    11 mΩ
    175 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CBB011M12GM4T
    申請
    下載
    下載
    Active
    G
    Full-Bridge
    1200 V
    100 A
    11 mΩ
    175 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CBB011M12GM4
    申請
    下載
    下載
    Active
    G
    Full-Bridge
    1200 V
    100 A
    11 mΩ
    175 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CAB004M12GM4
    申請
    下載
    下載
    Active
    G
    Half-Bridge
    1200 V
    200 A
    4.1 mΩ
    175 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CAB004M12GM4T
    申請
    下載
    下載
    Active
    G
    Half-Bridge
    1200 V
    200 A
    4.1 mΩ
    175 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Product shot of the Wolfspeed WolfPACK SiC Power Module in the GM3 package.
    CAB5R0A23GM4
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    2300 V
    200 A
    5 mΩ
    150 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Wolfspeed WolfPACK™ 2.3 kV Silicon Carbide power module GM4 & GM4T package
    CAB6R0A23GM4T
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    2300 V
    200 A
    6 mΩ
    150 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Wolfspeed WolfPACK™ 2.3 kV Silicon Carbide power module GM4 & GM4T package
    CAB7R5A23GM4
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    2300 V
    170 A
    7.5 mΩ
    150 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Wolfspeed WolfPACK™ 2.3 kV Silicon Carbide power module GM4 & GM4T package
    CAB6R0A23GM4
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    2300 V
    200 A
    6 mΩ
    150 °C
    62.8 x 56.7 mm
    No
    Industrial
    Gen 4
    Wolfspeed WolfPACK™ 2.3 kV Silicon Carbide power module GM4 & GM4T package
    CAB7R5A23GM4T
    申請
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    2300 V
    170 A
    7.5 mΩ
    150 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Wolfspeed WolfPACK™ 2.3 kV Silicon Carbide power module GM4 & GM4T package
    CAB5R0A23GM4T
    下載
    下載
    Active
    G
    Half-Bridge (AIN Substrate)
    2300 V
    200 A
    5 mΩ
    150 °C
    62.8 x 56.7 mm
    Yes
    Industrial
    Gen 4
    Wolfspeed WolfPACK™ 2.3 kV Silicon Carbide power module GM4 & GM4T package

    Purchase

    Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.

    產品系列

    特色資源

    設計工具

    SpeedFit 設計模擬器LTspice & PLECS 模型SpeedVal Kit™ 模块化评估平台

    技術支援

    功率应用在线讨论平台

    特色應用記錄

    PRD-07933: Power Module Thermal Interface Material Application User Guide
    PRD-08376: Thermal Characterization Methods and Applications
    PRD-07913: Wolfspeed Power Module SPICE Models User Guide

    知識中心

    查看全部

    響應市場需求，以可靠的碳化矽基固態變壓器為 AI 人工智慧賦能

    繼續閱讀 白皮書

    為您的下一代 800V 電動車牽引逆變器平台增添里程與使用年限

    繼續閱讀 部落格

    運用 Wolfspeed 全新 1700 V MOSFET 科技，全面革新輔助電源系統的耐用性與成本效益

    繼續閱讀 技術文章

    支援

    技術支援功率應用論壇
    在線購買查詢代理商
    索取樣品參觀樣品中心

    Footer

    Wolfspeed Logo

    Social Media

    • Facebook

    Footer Navigation

    • 聯繫
    • 去哪裡買
    • 授權
    • 供應商和承包商

    Legal

    • 隱私權政策
    • Cookie 政策
    • 使用條款
    • 無障礙
    版權 © 2026 Wolfspeed, Inc.

    檔案、工具和支援

    • 技術和銷售檔案
    • 工具與支援
    • 合規

    文件

    19 Documents Available
    檔案類型
    檔案名稱
    最近更新
    用戶指南
    PRD-07913: Wolfspeed Power Module SPICE Models User Guide (PDF)
    		08/2026
    用戶指南
    PRD-07128: XM Module Signal Pinout Clarification Guide (PDF)
    		12/2025
    用戶指南
    PRD-02302: Wolfspeed Wolfpack® Mounting Instructions & PCB Requirements User Guide (PDF)
    		04/2025
    用戶指南
    PRD-08333: Wolfspeed Module CIL Evaluation Kits User Guide (PDF)
    		03/2025
    用戶指南
    PRD-07933: Power Module Thermal Interface Material Application User Guide (PDF)
    		03/2025
    用戶指南
    PRD-06975: XM3 Three Phase Inverter Reference Design User Guide (PDF)
    		01/2024
    用戶指南
    PRD-06976: XM3 Three-Phase Dual Inverter Reference Design User Guide (PDF)
    		01/2024
    用戶指南
    PRD-06983: BM Module Platform Mounting User Guide (PDF)
    		12/2023
    用戶指南
    PRD-07745: XM Module Platform Mounting User Guide (PDF)
    		10/2023
    應用筆記
    PRD-07968: Wolfspeed WolfPACK® Dynamic Performance (PDF)
    		08/2026
    應用筆記
    PRD-07845: Power Module Baseplate Capacitance and Electromagnetic Compatibility (PDF)
    		03/2025
    應用筆記
    PRD-03043: Measuring Switching and Conduction Losses in LTspice® Simulation Software (PDF)
    		01/2024
    應用筆記
    PRD-08376: Thermal Characterization Methods and Applications (PDF)
    		01/2024
    應用筆記
    PRD-08296: SiC MOSFET Short Circuit Events (PDF)
    		11/2023
    應用筆記
    PRD-06379: Environmental Considerations for Power Electronics Systems (PDF)
    		08/2023
    應用筆記
    PRD-06933: Capacitance Ratio and Parasitic Turn-on (PDF)
    		01/2023
    銷售表和傳單
    Wolfspeed WolfPACK® Pre-Applied Thermal Interface Material (PATIM) Product Brief (PDF)
    		05/2023
    銷售表和傳單
    Wolfspeed WolfPACK® GM3 SiC Power Modules with AlN Product Brief (PDF)
    		12/2022
    銷售條款
    Wolfspeed, Inc. Sales Terms and Conditions (PDF)
    		04/2025
