Wolfspeed SiC Power for Automotive On-Board DC/DC Converter Applications
Automotive

On-Board DC/DC Converter

Wolfspeed Silicon Carbide is ready for the challenges that today’s EVs present, especially when it comes to on-board DC/DC converters.

  • Overview
  • Products
  • Reference Designs
  • Overview
  • Products
  • Reference Designs

Past to Present: A Revolution in Automotive Electrical System Design

The electrical systems in vehicles of the past were simple — responsible for basic lighting, providing ignition, and perhaps powering a basic sound system. Modern vehicles, however, have far more complex electrical requirements, including advanced lighting systems, infotainment platforms, navigational and guidance controls, and much more. Electric vehicles (EVs), in particular, have taken power requirements to a new level, and the rise of autonomous vehicles are unlocking even further complications in power design.

What this means for automotive power is changes to the on-board DC/DC converter responsible for providing power to this complex and diverse set of systems.

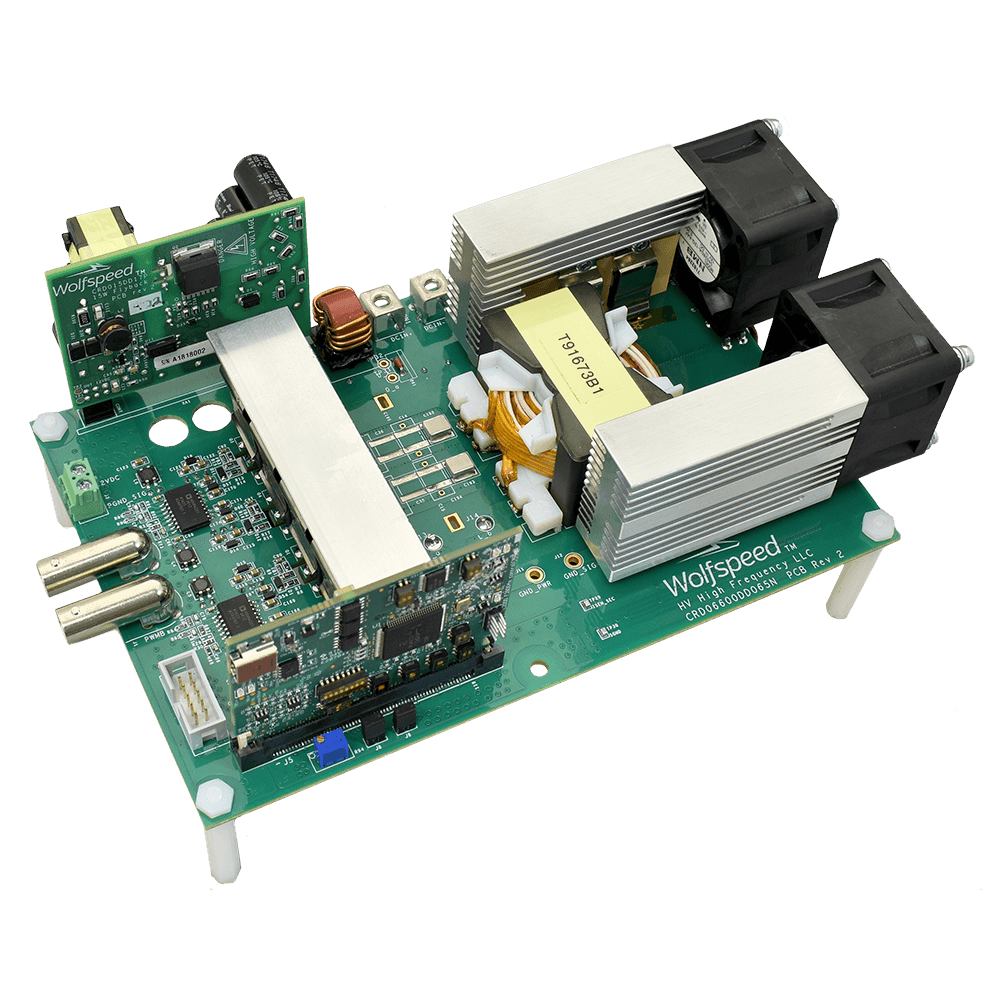

Wolfspeed's 6.6 kW High Frequency DC-DC Converter Reference Design
Wolfspeed's 6.6 kW High Frequency DC-DC Converter Reference Design

What Is an On-Board DC/DC Converter?

The on-board DC/DC converter is responsible for taking the DC power from the battery and converting and regulating the voltage to meet the needs of this varying set of systems. It must do so in real time, as many systems have interdependencies that require them to work as a collective unit. Failure can be catastrophic.

Traditional Silicon: Is It Up to the Challenge?

For EVs specifically, the need to have reliable and consistent power is paramount. Traditional silicon is simply not up for the challenges of modern EVs. Wolfspeed Silicon Carbide (SiC) on the other hand, is specially built to meet this need. With greater reliability and improved efficiency over any silicon-based solution, Wolfspeed Silicon Carbide is ready for the challenges that today’s EVs present, especially when it comes to on-board DC/DC converters.

Diagram of a car with On-Board DC/DC Converter applications
On-Board DC/DC Converter

Improved Reliability, Cleaner Power from Wolfspeed Silicon Carbide

Wolfspeed Silicon Carbide is uniquely capable of incredible reliability and efficiency, even in the most demanding power applications. In electric vehicle DC/DC converter applications, this can mean keeping mission-critical systems supplied with the right voltages consistently and sustainably, as well as keeping overall vehicle weight down for improved performance and efficiency.

Up To
30%
Lower Losses
Up To
50%
Higher Power Density
Up To
15%
System Cost Savings

Wolfspeed EV Products to Support On-Board DC/DC Converter Design

Wolfspeed offers a comprehensive portfolio of Silicon Carbide products that offer the capability and performance needed for modern on-board DC/DC converters. At the forefront of this selection of cutting-edge tech is our E-Series, a family of ruggedized SiC components that meet AEC-Q101 automotive standards.

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

View All

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

No filters selected, showing all 28 products

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters - Filter By

E-Series Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Blocking Voltage
RDS(ON) at 25°C
Generation
Current Rating
Gate Charge Total
Output Capacitance
Total Power Dissipation (PTOT)
Tjmax
Package
Qualification
E3M0060065D
650 V
60 mΩ
Gen 3
37 A
46 nC
72 pF
131 W
175 °C
TO-247-3
Automotive
E3M0060065K
650 V
60 mΩ
Gen 3
37 A
49 nC
72 pF
131 W
175 °C
TO-247-4
Automotive
E3M0045065K
650 V
45 mΩ
Gen 3
46 A
64 nC
99 pF
150 W
175 °C
TO-247-4
Automotive
E4M0015075J2
750 V
15 mΩ
Gen 4
156 A
180 nC
255 pF
554 W
175 °C
TO-263-7 XL
Automotive
E4M0025075J2
750 V
25 mΩ
Gen 4
84 A
114 nC
158 pF
281 W
175 °C
TO-263-7 XL
Automotive
E4M0045075J2
750 V
45 mΩ
Gen 4
46 A
62 nC
95 pF
172 W
175 °C
TO-263-7 XL
Automotive
E4M0060075J2
750 V
60 mΩ
Gen 4
36 A
50 nC
77 pF
131 W
175 °C
TO-263-7 XL
Automotive
E4M0015075K1
750 V
15 mΩ
Gen 4
128 A
191 nC
255 pF
372 W
175 °C
TO-247-4 LP
Automotive
E4M0025075K1
750 V
25 mΩ
Gen 4
80 A
119 nC
158 pF
262 W
175 °C
TO-247-4 LP
Automotive
E4M0045075K1
750 V
45 mΩ
Gen 4
42 A
65 nC
95 pF
139 W
175 °C
TO-247-4 LP
Automotive
E4M0060075K1
750 V
60 mΩ
Gen 4
35 A
52 nC
69 pF
126 W
175 °C
TO-247-4 LP
Automotive
E3M0120090J
900 V
120 mΩ
Gen 3
22 A
18 nC
48 pF
83 W
150 °C
TO-263-7
Automotive
E3M0075120K
1200 V
75 mΩ
Gen 3
32 A
55 nC
58 pF
145 W
175 °C
TO-247-4
Automotive
E3M0075120D
1200 V
75 mΩ
Gen 3
32 A
57 nC
58 pF
145 W
175 °C
TO-247-3
Automotive
E3M0016120K
1200 V
16 mΩ
Gen 3
125 A
223 nC
231 pF
483 W
175 °C
TO-247-4
Automotive
E3M0021120K
1200 V
21 mΩ
Gen 3
104 A
177 nC
174 pF
405 W
175 °C
TO-247-4
Automotive
E3M0032120K
1200 V
32 mΩ
Gen 3
67 A
113 nC
126 pF
278 W
175 °C
TO-247-4
Automotive
E3M0040120K
1200 V
40 mΩ
Gen 3
57 A
94 nC
100 pF
242 W
175 °C
TO-247-4
Automotive
E3M0160120K
1200 V
160 mΩ
Gen 3
17 A
32 nC
31 pF
103 W
175 °C
TO-247-4
Automotive
E3M0160120D
1200 V
160 mΩ
Gen 3
17 A
33 nC
31 pF
103 W
175 °C
TO-247-3
Automotive
E3M0075120J2
1200 V
75 mΩ
Gen 3
34 A
52 nC
58 pF
172 W
175 °C
TO-263-7 XL
Automotive
E3M0021120J2
1200 V
21 mΩ
Gen 3
114 A
169 nC
174 pF
500 W
175 °C
TO-263-7 XL
Automotive
E3M0032120J2
1200 V
32 mΩ
Gen 3
74 A
108 nC
126 pF
341 W
175 °C
TO-263-7 XL
Automotive
E3M0040120J2
1200 V
40 mΩ
Gen 3
63 A
91 nC
100 pF
294 W
175 °C
TO-263-7 XL
Automotive
E3M0160120J2
1200 V
160 mΩ
Gen 3
18 A
28 nC
31 pF
104 W
175 °C
TO-263-7 XL
Automotive
E4M0013120K
1200 V
13 mΩ
Gen 4
153 A
293 nC
202 pF
517 W
175 °C
TO-247-4
Automotive
E3M0900170D
New
1700 V
900 mΩ
Gen 3
4.4 A
8 nC
7.96 pF
41 W
175 °C
TO-247-3
Automotive
E3M0900170J
New
1700 V
900 mΩ
Gen 3
4.4 A
8 nC
7.96 pF
41 W
175 °C
TO-263-7
Automotive

End of Section

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

View All

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

No filters selected, showing all 12 products

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters - Filter By

Additional Discrete Silicon Carbide MOSFETs for On-Board DC/DC Converters

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Blocking Voltage
RDS(ON) at 25°C
Generation
Current Rating
Gate Charge Total
Output Capacitance
Total Power Dissipation (PTOT)
Tjmax
Package
Qualification
C3M0025065D
650 V
25 mΩ
Gen 3
97 A
108 nC
178 pF
325 W
175 °C
TO-247-3
Industrial
C3M0025065K
650 V
25 mΩ
Gen 3
97 A
112 nC
178 pF
326 W
175 °C
TO-247-4
Industrial
C3M0045065D
650 V
45 mΩ
Gen 3
49 A
63 nC
101 pF
176 W
175 °C
TO-247-3
Industrial
C3M0045065K
650 V
45 mΩ
Gen 3
49 A
63 nC
101 pF
176 W
175 °C
TO-247-4
Industrial
C3M0120065D
650 V
120 mΩ
Gen 3
22 A
28 nC
45 pF
98 W
175 °C
TO-247-3
Industrial
C3M0120065J
650 V
120 mΩ
Gen 3
21 A
26 nC
45 pF
86 W
175 °C
TO-263-7
Industrial
C3M0120065K
650 V
120 mΩ
Gen 3
22 A
28 nC
45 pF
98 W
175 °C
TO-247-4
Industrial
C3M0060065D
650 V
60 mΩ
Gen 3
29 A
46 nC
80 pF
150 W
175 °C
TO-247-3
Industrial
C3M0060065J
650 V
60 mΩ
Gen 3
36 A
46 nC
80 pF
136 W
175 °C
TO-263-7
Industrial
C3M0060065K
650 V
60 mΩ
Gen 3
37 A
46 nC
80 pF
150 W
175 °C
TO-247-4
Industrial
C3M0280090D
900 V
280 mΩ
Gen 3
11.5 A
9.5 nC
20 pF
54 W
150 °C
TO-247-3
Industrial
C3M0280090J
900 V
280 mΩ
Gen 3
11.5 A
9.5 nC
20 pF
50 W
150 °C
TO-263-7
Industrial

End of Section

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters

View All

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters

No filters selected, showing all 7 products

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters - Filter By

E-Series Discrete Silicon Carbide Schottky Diodes for On-Board DC/DC Converters

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Blocking Voltage
Current Rating
Generation
Forward Voltage(VF(type))
Maximum Continuous Current (IF)
Total Capacitive Charge (QC (typ))
Total Power Dissipation (PTOT)
Package
Qualification
E3D08065G
650 V
8 A
Gen 3
1.5 V
8 A
50 nC
176 W
TO-263-2
Automotive
E3D20065D
650 V
20 A
Gen 3
1.5 V
20 A
110 nC
250 W
TO-247-3
Automotive
E3D30065D
650 V
30 A
Gen 3
1.5 V
30 A
43 nC
179 W
TO-247-3
Automotive
E4D10120A
1200 V
10 A
Gen 4
1.5 V
10 A
56 nC
166 W
TO-220-2
Automotive
E4D20120A
1200 V
20 A
Gen 4
1.5 V
20 A
99 nC
242 W
TO-220-2
Automotive
E4D20120D
1200 V
20 A
Gen 4
1.5 V
20 A
52 nC per leg
176 W
TO-247-3
Automotive
E4D20120G
1200 V
20 A
Gen 4
1.5 V
20 A
110 nC
250 W
TO-263-2
Automotive

End of Section

Reference Designs to Accelerate Your Time to Market

Wolfspeed not only offers the solutions to bring your design into the future of automotive technology, but our Reference Designs can help you accelerate your design cycle process. Reference Designs include full system design resource package with schematics, BOM, and more.

Featured Reference Designs for On-Board DC/DC Converters

View All

Featured Reference Designs for On-Board DC/DC Converters

No filters selected, showing all 6 products

Featured Reference Designs for On-Board DC/DC Converters - Filter By

Featured Reference Designs for On-Board DC/DC Converters

Product SKU
Name
Type
Topology
Power
Discrete/Module
Package
Device SKU(s)
Designed By
View Product
CRD-06600DD065N
6.6 kW High Frequency LLC
DC to DC
LLC
6.6kW
Discrete
TO-247-3
C3M0060065D
C6D10065A
Wolfspeed
CRD-06600FF10N
6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Efficiency
AC to DC, DC to DC
Totem-Pole PFC and CLLC
6.6kW
Discrete
TO-247-4
C3M0065100K
Wolfspeed
TIDM-02002
6.6 kW Bi-Directional CLLLC
DC to DC
CLLLC
6.6kW
Discrete
TO-247-4
C3M0030090K
Texas Instruments
CRD-06600FF065N-K
6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Power Density
AC to DC, DC to DC
Totem-Pole PFC and CLLC
6.6kW
Discrete
TO-247-4, TO-247-3
C3M0060065K
C3M0060065D
Wolfspeed
TIDA-010054
10 kW Phase Shift DAB
DC to DC
DAB (Dual Active Bridge)
10kW
Discrete
TO-247-4
C3M0016120K​
C3M0030090K
Texas Instruments
CRD-22DD12N
22 kW Bi-Directional CLLC
DC to DC
CLLC
22kW
Discrete
TO-247-4
C3M0032120K
E3M0032120K
Wolfspeed

End of Section

Knowledge Center

View All
Powertrain Inverters

Add Miles and Years of Performance to Your Next 800-V EV Traction Inverter Platform

Continue Reading  Blog
Powerful Perspectives

Ramped + Ready: Silicon Carbide Supply Rises to Meet Innovation Demand

Continue Reading  Thought Leadership
Design Resources

Gen 4 Silicon Carbide Technology: Redefining Performance and Durability in High-Power Applications

Continue Reading  White Paper

Support

Technical SupportPower Applications Forum
Buy OnlineFind a Distributor
Request SamplesVisit the Sample Center

Footer

Wolfspeed Logo

Social Media

  • Instagram
  • X
  • LinkedIn
  • YouTube

Footer Navigation

  • Contact
  • Where to Buy
  • Licensing
  • Suppliers & Contractors

Legal

  • Privacy Policy
  • Cookie Policy
  • Terms Of Use
  • Accessibility
Copyright © 2025 Wolfspeed, Inc.
