Wolfspeed SiC for Energy Storage Systems

Wind and solar power paired with lithium-ion battery installations is one of the fastest-growing solutions in the category, and Wolfspeed’s wide-bandgap Silicon Carbide (SiC) technology is in the core of these solutions. Studies by the Advanced Research Projects Agency-Energy (ARPA-E) have established that Wolfspeed’s Silicon Carbide power semiconductors enable solutions that are more efficient than silicon and can handle grid-scale voltages with increased reliability and performance.

Wolfspeed CRD300DA12E-XM3 - 300kW Three-Phase Inverter
Wolfspeed's 300kW XM3 Three-Phase Inverter Reference Design

Improved Reliability, Cleaner Power from Wolfspeed Silicon Carbide

Modern energy storage systems must be able to handle an incredibly high level of current and do so reliably and consistently. They must also be able to release this power when it’s needed, an action that requires outstanding performance. Wolfspeed SiC is the gold-standard technology for energy storage systems because when compared with traditional silicon, Wolfspeed Silicon Carbide MOSFETs and diodes offer higher performance and lower losses while allowing engineers to create systems that use fewer components, thereby keeping overall system size and cost down.

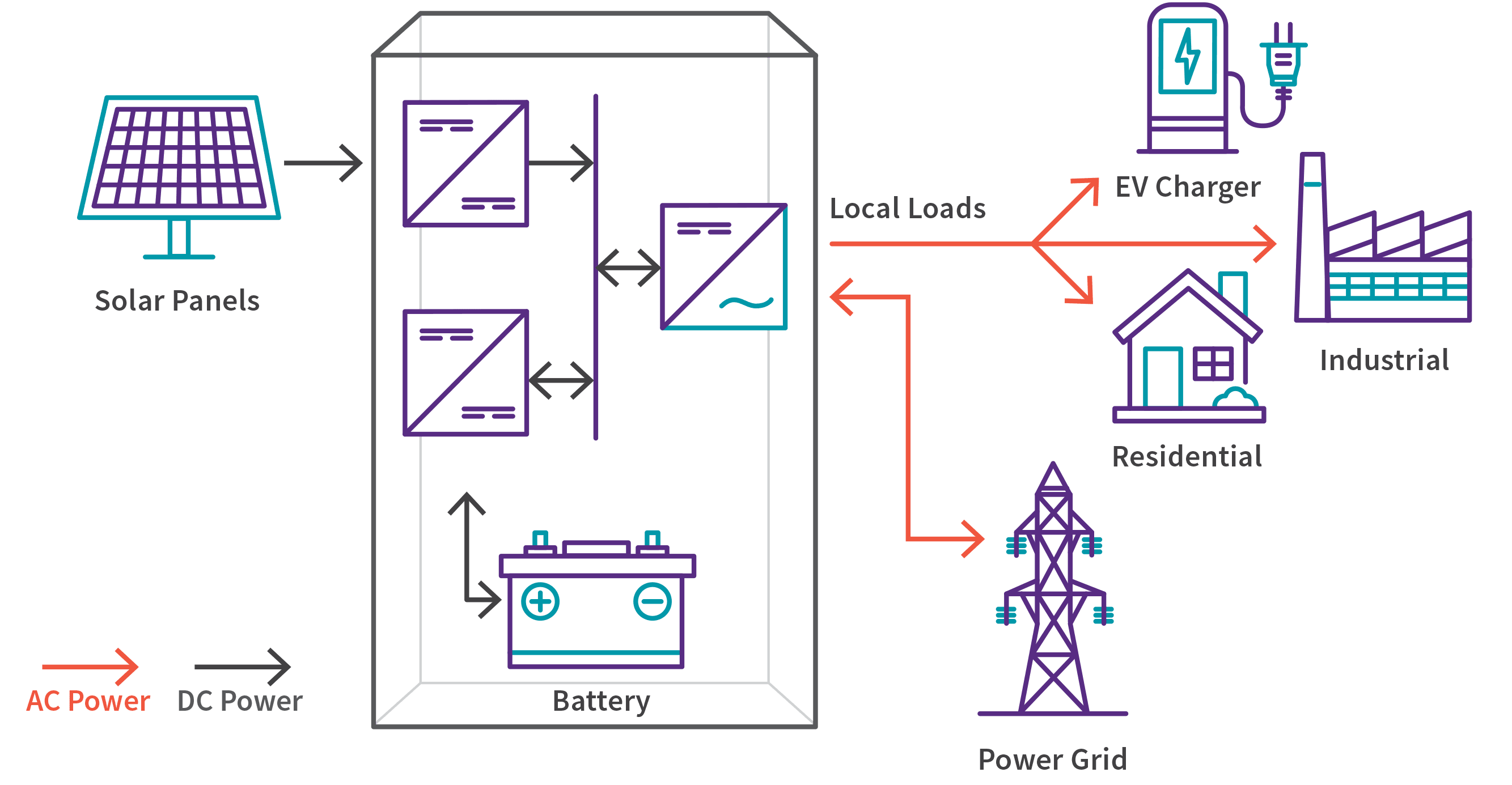

Illustrated flow chart that shows how Wolfspeed silicon carbide is used to store solar energy for use in home appliances
Energy Storage System

When You Need Power You Can Rely on, Choose Wolfspeed

Alternative energy systems are an alternative only when they can be counted on, which is why Wolfspeed is a great choice. Wolfspeed SiC’s robust performance has proven its value time and again, with billions of field hours for our most popular SiC components.
Up To
30%
Lower Losses
Up To
50%
Higher Power Density
Up To
15%
System Cost Savings

1200V Discrete Silicon Carbide MOSFETs for Energy Storage Systems

View All Discrete SiC MOSFETs
Product SKU
Buy Online
Request Sample
Data Sheet
Blocking Voltage
RDS(ON) at 25°C
Generation
Current Rating
Gate Charge Total
Output Capacitance
Total Power Dissipation (PTOT)
Maximum Junction Temperature
Package
CAD Model
C3M0160120D
1200 V
160 mΩ
Gen 3
38 nC
39 pF
97 W
150 °C
TO-247-3
C3M0160120J
1200 V
160 mΩ
Gen 3
24 nC
39 pF
90 W
150 °C
TO-263-7
C3M0350120D
1200 V
350 mΩ
Gen 3
19 nC
20 pF
50 W
150 °C
TO-247-3
C3M0350120J
1200 V
350 mΩ
Gen 3
13 nC
20 pF
40.8 W
150 °C
TO-263-7
C3M0075120D
1200 V
75 mΩ
Gen 3
30 A
54 nC
58 pF
113.6 W
150 °C
TO-247-3
C3M0075120J
1200 V
75 mΩ
Gen 3
30 A
51 nC
58 pF
113.6 W
150 °C
TO-263-7
C3M0075120K
1200 V
75 mΩ
Gen 3
30 A
51 nC
58 pF
113.6 W
150 °C
TO-247-4
C3M0032120D
1200 V
32 mΩ
Gen 3
63 A
114 nC
129 pF
283 W
175 °C
TO-247-3
C3M0032120K
1200 V
32 mΩ
Gen 3
63 A
118 nC
129 pF
283 W
175 °C
TO-247-4
C3M0040120J1
New
1200 V
40 mΩ
Gen 3
64 A
61 nC
94 pF
272 W
150 °C
TO-263-7
C3M0040120D
1200 V
40 mΩ
Gen 3
66 A
101 nC
103 pF
326 W
175 °C
TO-247-3
C3M0040120K
1200 V
40 mΩ
Gen 3
66 A
99 nC
103 pF
326 W
175 °C
TO-247-4
C3M0032120J1
1200 V
32 mΩ
Gen 3
68 A
111 nC
133 pF
277 W
150 °C
TO-263-7
C3M0025065J1
New
650 V
25 mΩ
Gen 3
80 A
109 nC
178 pF
271 W
150 °C
TO-263-7
C3M0021120D
1200 V
21 mΩ
Gen 3
81 A
160 nC
180 pF
469 W
175 °C
TO-247-3
C3M0021120K
1200 V
21 mΩ
Gen 3
100 A
162 nC
180 pF
469 W
175 °C
TO-247-4
C3M0016120D
1200 V
16 mΩ
Gen 3
115 A
207 nC
230 pF
556 W
175 °C
TO-247-3
C3M0016120K
1200 V
16 mΩ
Gen 3
115 A
211 nC
230 pF
556 W
175 °C
TO-247-4
