60 kW Interleaved Boost Converter

Product Shot of Wolfspeed's Reference Design of a 60 kW Interleaved Boost Converter

Product Shot of Wolfspeed's Reference Design of a 60 kW Interleaved Boost Converter

CRD-60DD12N

This reference design demonstrates the application of Wolfspeed’s C3M™ Silicon Carbide MOSFETs in a 4-phase interleaved boost converter. This topology is ideal for high efficiency solar power generation systems to boost the output voltage of the solar panel to a consistent DC bus voltage, which can be fed into a grid-tied inverter. The design uses parallel Silicon Carbide MOSFETs and parallel Silicon Carbide Schottky diodes to achieve a high-power density using discrete devices. The TO-247-4 package with a Kelvin source pin enables high frequency switching with reduced losses compared to 3-lead devices.

Specifications

Input Voltage: 470-800V DC
Output Voltage: 850V DC
Power Max: 60 kW
Switching Frequency: 78kHz
Peak Efficiency: 99.5%
Power Density: 127W/in³

Applications

Solar boost converter

What's Included

Complete design files including schematic, PCB layout and BOM

Product Compatibility

Documents, Tools & Support

Block Diagram
Technical & Sales Documents
Tools & Support

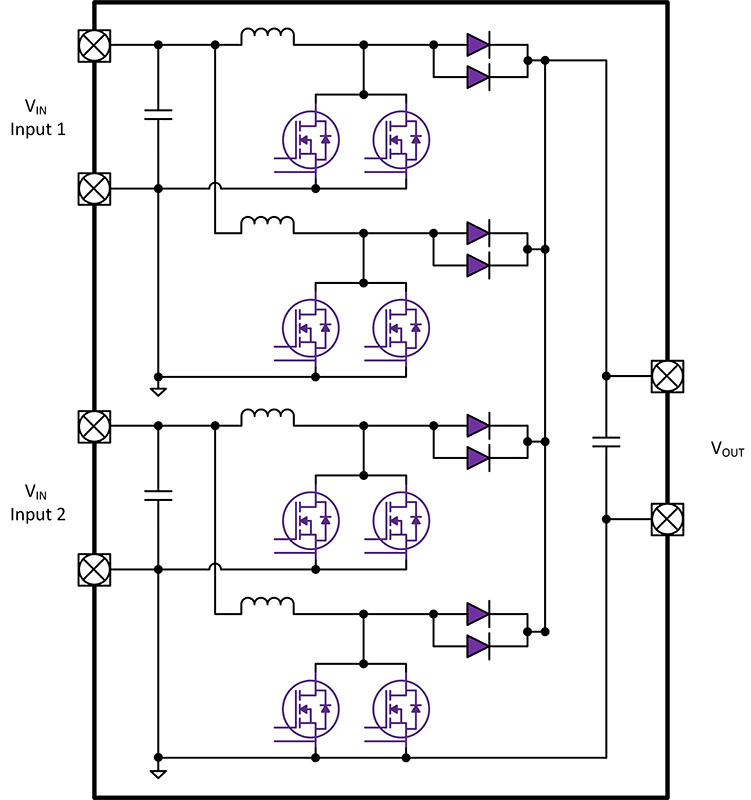

Block diagram for CRD-60DD12N
