CRD 06600DD065N

6.6 kW High Frequency DC-DC Converter

Wolfspeed's CRD-06600DD065N 6.6 kW High Frequency DC-DC Converter
CRD-06600DD065N
  • Demonstration of Wolfspeed’s 650 V; 60 mΩ (C3M™) SiC MOSFETs in a 6.6 kW High Frequency DC-DC converter targeting high power density applications
  • The demo board consist of a DC-DC LLC topology in which primary side is based on a Full bridge stage while the secondary side is based on a asynchronous rectification stage
  • Utilization of high frequency operation allow the demo board to be smaller; lighter and overall more cost effective
  • Wolfspeed’s 6.6 kW high frequency demo board can accept 380 VDC – 420 VDC as an input and provide 400 VDC at the output with > 96 % efficiency
  • Main target application of this demo board include: Industrial power supplies and EV Chargers
  • Documentation includes a bill of materials (BOM); schematic; board layout and the application note

Specifications

  • Input Voltage: 380VDC → 420VDC
  • Output Voltage 400VDC
  • -Max current: 16.5A
  • -Output Power: 6.6kW
  • Switching Frequency: 500kHz – 1 MHz
  • Closed loop control for regulated output
  • -Optional external PWM inputs for open loop testing
Applications
  • EV On-Board Charger
  • EV Off-Board Charger
  • Industrial Charging
  • Industrial Power Supplies
What's Included

Reference Design Files for

  • Main board
  • Aux Power Board
Request Separately
  • Texas Instruments Control Board for closed loop control

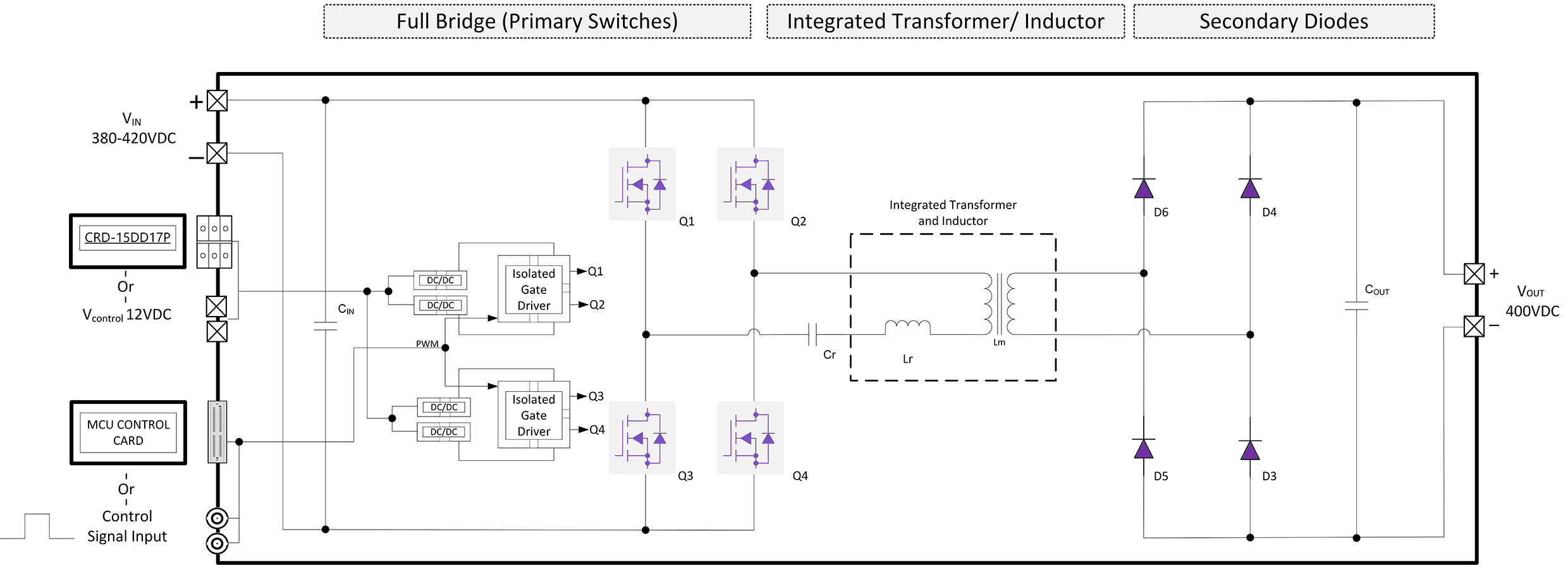

crd_006600dd065n_block_diagram
CRD-15DD17P

Wide Input Voltage Range (300V-1200VDC) 15W Flyback Auxiliary Power Supply Board

View Product
F28004x C2000 real-time microcontroller

MCU with control algorithms for the DC-DC Stage

View Product
