工業

工業馬達

在同等成本下,Wolfspeed 碳化矽 MOSFET 和肖特基二極體比任何矽解決方案運行速度更快、溫度更低且耗能更少。

  • English
  • 简体中文
  • 繁體中文

由 Wolfspeed 碳化矽提供動力的工業馬達符合領先的效率標準

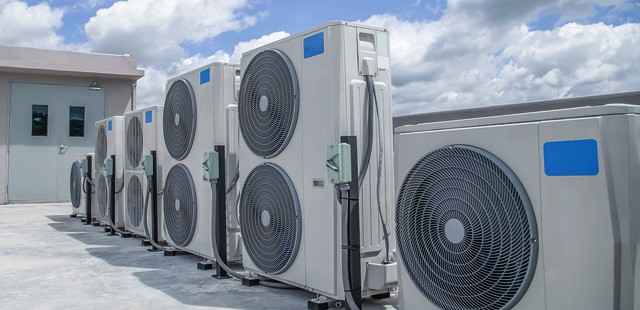

電動機,包括工業低壓驅動器、伺服驅動器以及熱泵和空調,合計佔全球每年總電力消耗的 45% 以上。 Wolfspeed 碳化矽 (SiC) MOSFET、蕭特基二極體和功率模組可將整體馬達效率提高高達 2.6%,並將整體系統損耗降低高達 50%。 使用 Wolfspeed SiC 設計於工業馬達還可以達到最嚴格的效率標準,包括 IE4、美國 SEER; 歐洲、中東和非洲的ESEER和SCOP水準; 和中國GB21455標準。

具有最高性能和功率的緊湊型驅動器

Wolfspeed 碳化矽技術比傳統矽 IGBT 在更高的溫度下保持穩定,並允許工程師將驅動電子元件整合到馬達外殼中。 這些「嵌入式驅動器」縮小了驅動器的整體尺寸,並在不犧牲品質的情況下提供高功率密度、性能和效率。


工業馬達應用

Stock image of multiple Industrial Low Voltage Motor Drives in action representing Wolfspeed's Silicon Carbide (SiC) parts being used in industrial low voltage motor drives designs.

低壓馬達驅動器

在工業低電壓馬達驅動器中使用完整的 Wolfspeed 碳化矽解決方案使設計人員能夠達到 IE4 效率標準,並將整體系統效率提高 2.6%。

了解更多

用於工業馬達的 Wolfspeed 碳化矽部件

Wolfspeed 產品擁有多年經驗和專業知識的巔峰,品質與創新相結合,有助於推動您的設計向前發展。 Wolfspeed 的 1200V 碳化矽 MOSFET 和模組具有業界最低的導通電阻,與伺服驅動應用中的矽相比,總損耗最多可降低 80%。

用於工業馬達驅動的 1200 V 分立式碳化矽 MOSEFT

查看全部

用於工業馬達驅動的 1200 V 分立式碳化矽 MOSEFT

No filters selected, showing all 19 products

用於工業馬達驅動的 1200 V 分立式碳化矽 MOSEFT - Filter By

用於工業馬達驅動的 1200 V 分立式碳化矽 MOSEFT

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Blocking Voltage
RDS(ON) at 25°C
Generation
Current Rating
Gate Charge Total
Output Capacitance
Total Power Dissipation (PTOT)
Maximum Junction Temperature
Package
C3M0350120J
1200 V
350 mΩ
Gen 3
7.2 A
13 nC
20 pF
40.8 W
150 °C
TO-263-7
1200 V
350 mΩ
Gen 3
7.6 A
19 nC
20 pF
50 W
150 °C
TO-247-3
1200 V
160 mΩ
Gen 3
17 A
38 nC
39 pF
97 W
150 °C
TO-247-3
1200 V
160 mΩ
Gen 3
17 A
24 nC
39 pF
90 W
150 °C
TO-263-7
1200 V
75 mΩ
Gen 3
30 A
54 nC
58 pF
113.6 W
150 °C
TO-247-3
1200 V
75 mΩ
Gen 3
30 A
51 nC
58 pF
113.6 W
150 °C
TO-263-7
1200 V
75 mΩ
Gen 3
32 A
51 nC
58 pF
113.6 W
150 °C
TO-247-4
1200 V
75 mΩ
Gen 3
32 A
57 nC
58 pF
145 W
175 °C
TO-247-3
1200 V
75 mΩ
Gen 3
32 A
55 nC
58 pF
145 W
175 °C
TO-247-4
1200 V
32 mΩ
Gen 3
63 A
114 nC
129 pF
283 W
175 °C
TO-247-3
1200 V
32 mΩ
Gen 3
63 A
118 nC
129 pF
283 W
175 °C
TO-247-4
1200 V
40 mΩ
Gen 3
64 A
61 nC
94 pF
272 W
150 °C
TO-263-7
1200 V
40 mΩ
Gen 3
66 A
101 nC
103 pF
326 W
175 °C
TO-247-3
1200 V
40 mΩ
Gen 3
66 A
99 nC
103 pF
326 W
175 °C
TO-247-4
1200 V
32 mΩ
Gen 3
68 A
111 nC
133 pF
277 W
150 °C
TO-263-7
1200 V
21 mΩ
Gen 3
81 A
160 nC
180 pF
469 W
175 °C
TO-247-3
1200 V
21 mΩ
Gen 3
100 A
162 nC
180 pF
469 W
175 °C
TO-247-4
1200 V
16 mΩ
Gen 3
115 A
207 nC
230 pF
556 W
175 °C
TO-247-3
1200 V
16 mΩ
Gen 3
115 A
211 nC
230 pF
556 W
175 °C
TO-247-4

用於工業馬達驅動的 1200 V 分立式碳化矽肖特基二極體

用於工業馬達驅動的 1200 V 分立式碳化矽肖特基二極體

No filters selected, showing all 15 products

用於工業馬達驅動的 1200 V 分立式碳化矽肖特基二極體 - Filter By

用於工業馬達驅動的 1200 V 分立式碳化矽肖特基二極體

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Blocking Voltage
Current Rating
Generation
Forward Voltage(VF(type))
Maximum Continuous Current (IF)
Total Capacitive Charge (QC (typ))
Total Power Dissipation (PTOT)
Package
Qualification
Recommended For New Design?
1200 V
10 A
Gen 4
1.5 V
10 A
52 nC
136 W
TO-220-2
Industrial
Yes
1200 V
10 A
Gen 4
1.4 V
10 A
54 nC
187 W
TO-247-3
Industrial
Yes
1200 V
10 A
Gen 4
1.5 V
10 A
52 nC per leg
170 W
TO-252-2
Industrial
Yes
1200 V
10 A
Gen 4
1.4 V
10 A
52 nC
136 W
TO-247-2
Industrial
Yes
1200 V
10 A
Gen 4
1.5 V
10 A
56 nC
166 W
TO-220-2
Automotive
Yes
1200 V
15 A
Gen 4
1.6 V
15 A
77.5 nC
192 W
TO-220-2
Industrial
Yes
1200 V
15 A
Gen 4
1.5 V
15 A
37 nC per leg
270 W
TO-247-3
Industrial
Yes
1200 V
15 A
Gen 4
1.5 V
15 A
77.5 nC
174.5 W
TO-247-2
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
99 nC
242 W
TO-220-2
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V per leg
20 A
52 nC per leg
352 W
TO-247-3
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
99 nC
246 W
TO-247-2
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
52 nC per leg
176 W
TO-247-3
Automotive
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
110 nC
250 W
TO-263-2
Automotive
Yes
1200 V
30 A
Gen 4
1.6 V per leg
30 A
77.5 nC per leg
440 W
TO-247-3
Industrial
Yes
1200 V
40 A
Gen 4
1.5 V per leg
40 A
99 nC per leg
532 W
TO-247-3
Industrial
Yes

XM3半橋碳化矽功率模組

XM3半橋碳化矽功率模組

No filters selected, showing all 5 products

XM3半橋碳化矽功率模組 - Filter By

XM3半橋碳化矽功率模組

Product SKU
Buy Online
Data Sheet
CAD Model
Package
Configuration
Blocking Voltage
Current Rating
RDS(ON) at 25°C
Generation
Maximum Junction Temperature
Module Size
Recommended For New Design?
Qualification
View Product
XM3
Half-Bridge
1700 V
320 A
3.5 mΩ
Gen 3
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
400 A
4 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
425 A
3.2 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
450 A
2.6 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
450 A
2.6 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Automotive

Wolfspeed WolfPACK™ 碳化矽功率模組

Wolfspeed WolfPACK™ 碳化矽功率模組

No filters selected, showing all 24 products

Wolfspeed WolfPACK™ 碳化矽功率模組 - Filter By

Wolfspeed WolfPACK™ 碳化矽功率模組

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Package
Configuration
Blocking Voltage
Current Rating
RDS(ON) at 25°C
Generation
Maximum Junction Temperature
Module Size
Recommended For New Design?
Qualification
View Product
GM3
Half-Bridge
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
181 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
160 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
160 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
181 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
117 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
117 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
141 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
CAB011A12GM3T
New
GM3
Half-Bridge
1200 V
141 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
84 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
84 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
GM3
Six-pack (three-phase)
1200 V
50 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Six-pack (three-phase)
1200 V
50 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
21 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
48 A
21 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
21 mΩ
Gen 3
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
48 A
21 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
37 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
37 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial

工業馬達驅動器特色參考設計

工業馬達驅動器特色參考設計

No filters selected, showing all 4 products

工業馬達驅動器特色參考設計 - Filter By

工業馬達驅動器特色參考設計

Product SKU
Name
Buy Online
Type
Topology
Power
Discrete/Module
Package
Device SKU(s)
Designed By
View Product
CRD200DA12E-XM3
200 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
200kW
Module
XM3
Wolfspeed
CRD250DA12E-XM3
250 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
250kW
Module
XM3
Wolfspeed
CRD300DA12E-XM3
300 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
300kW
Module
XM3
Wolfspeed
CRD600DA12E-XM3
600 kW XM3 High Performance Dual Three-Phase Inverter
DC to AC
Dual Three-Phase, 2-Level
600kW
Module
XM3
Wolfspeed
