由 Wolfspeed 碳化硅赋能的工业电机 符合前沿效率标准

电机,包括工业低电压驱动器、伺服驱动器以及热泵和空调,每年消耗的电量占全球总耗电量的 45% 以上。Wolfspeed 碳化硅 (SiC) MOSFET、肖特基二极管和功率模块可将总体电机效率提高 2.6%,并将总体系统损耗降低 50%。使用 Wolfspeed SiC 设计的工业电机还能达到最严格的能效标准,包括 IE4 等级、美国 SEER、欧洲、中东和非洲的 ESEER 和 SCOP 等级,以及中国的 GB21455 标准。

性能卓越、功率强劲的紧凑型驱动器

与传统的硅 IGBT 相比,Wolfspeed 的碳化硅技术在较高温度下也能保持稳定性能,以便工程师将驱动电子器件集成到电机外壳中。这些“嵌入式驱动器”缩小了驱动器的整体尺寸,并在不降低质量的前提下提供同类最佳的功率密度、性能和效率。


工业电机应用

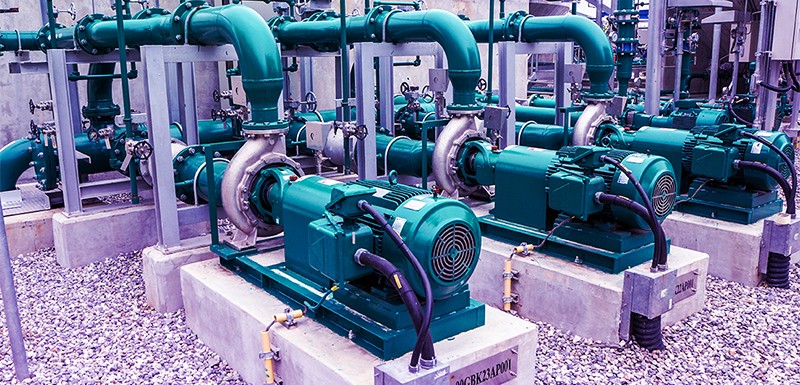

Stock image of multiple Industrial Low Voltage Motor Drives in action representing Wolfspeed's Silicon Carbide (SiC) parts being used in industrial low voltage motor drives designs.

低电压电机驱动

在工业低电压电机驱动中采用全 Wolfspeed 碳化硅解决方案,可以帮助设计人员满足 IE4 效率标准并实现总体系统效率 2.6% 提升。

了解更多

用于工业电机的 Wolfspeed 碳化硅器件

Wolfspeed 产品凝聚多年丰富经验和专精技术,质量与创新的完美结合将帮助您的设计更上一层楼。

Wolfspeed 1200 V 碳化硅 MOSFET 和模块提供业界最低的漏极至源极导通电阻,相比于硅基伺服驱动应用,可以降低最高 80% 总体损耗。

用于工业电机驱动的 1200 V 分立碳化硅 MOSEFT

查看所有

用于工业电机驱动的 1200 V 分立碳化硅 MOSEFT

No filters selected, showing all 19 products

用于工业电机驱动的 1200 V 分立碳化硅 MOSEFT - Filter By

用于工业电机驱动的 1200 V 分立碳化硅 MOSEFT

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Blocking Voltage
RDS(ON) at 25°C
Generation
Current Rating
Gate Charge Total
Output Capacitance
Total Power Dissipation (PTOT)
Maximum Junction Temperature
Package
C3M0350120J
1200 V
350 mΩ
Gen 3
7.2 A
13 nC
20 pF
40.8 W
150 °C
TO-263-7
1200 V
350 mΩ
Gen 3
7.6 A
19 nC
20 pF
50 W
150 °C
TO-247-3
1200 V
160 mΩ
Gen 3
17 A
38 nC
39 pF
97 W
150 °C
TO-247-3
1200 V
160 mΩ
Gen 3
17 A
24 nC
39 pF
90 W
150 °C
TO-263-7
1200 V
75 mΩ
Gen 3
30 A
54 nC
58 pF
113.6 W
150 °C
TO-247-3
1200 V
75 mΩ
Gen 3
30 A
51 nC
58 pF
113.6 W
150 °C
TO-263-7
1200 V
75 mΩ
Gen 3
32 A
51 nC
58 pF
113.6 W
150 °C
TO-247-4
1200 V
75 mΩ
Gen 3
32 A
57 nC
58 pF
145 W
175 °C
TO-247-3
1200 V
75 mΩ
Gen 3
32 A
55 nC
58 pF
145 W
175 °C
TO-247-4
1200 V
32 mΩ
Gen 3
63 A
114 nC
129 pF
283 W
175 °C
TO-247-3
1200 V
32 mΩ
Gen 3
63 A
118 nC
129 pF
283 W
175 °C
TO-247-4
1200 V
40 mΩ
Gen 3
64 A
61 nC
94 pF
272 W
150 °C
TO-263-7
1200 V
40 mΩ
Gen 3
66 A
101 nC
103 pF
326 W
175 °C
TO-247-3
1200 V
40 mΩ
Gen 3
66 A
99 nC
103 pF
326 W
175 °C
TO-247-4
1200 V
32 mΩ
Gen 3
68 A
111 nC
133 pF
277 W
150 °C
TO-263-7
1200 V
21 mΩ
Gen 3
81 A
160 nC
180 pF
469 W
175 °C
TO-247-3
1200 V
21 mΩ
Gen 3
100 A
162 nC
180 pF
469 W
175 °C
TO-247-4
1200 V
16 mΩ
Gen 3
115 A
207 nC
230 pF
556 W
175 °C
TO-247-3
1200 V
16 mΩ
Gen 3
115 A
211 nC
230 pF
556 W
175 °C
TO-247-4

用于工业电机驱动的 1200 V 分立碳化硅肖特基二极管

用于工业电机驱动的 1200 V 分立碳化硅肖特基二极管

No filters selected, showing all 15 products

用于工业电机驱动的 1200 V 分立碳化硅肖特基二极管 - Filter By

用于工业电机驱动的 1200 V 分立碳化硅肖特基二极管

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Blocking Voltage
Current Rating
Generation
Forward Voltage(VF(type))
Maximum Continuous Current (IF)
Total Capacitive Charge (QC (typ))
Total Power Dissipation (PTOT)
Package
Qualification
Recommended For New Design?
1200 V
10 A
Gen 4
1.5 V
10 A
52 nC
136 W
TO-220-2
Industrial
Yes
1200 V
10 A
Gen 4
1.4 V
10 A
54 nC
187 W
TO-247-3
Industrial
Yes
1200 V
10 A
Gen 4
1.5 V
10 A
52 nC per leg
170 W
TO-252-2
Industrial
Yes
1200 V
10 A
Gen 4
1.4 V
10 A
52 nC
136 W
TO-247-2
Industrial
Yes
1200 V
10 A
Gen 4
1.5 V
10 A
56 nC
166 W
TO-220-2
Automotive
Yes
1200 V
15 A
Gen 4
1.6 V
15 A
77.5 nC
192 W
TO-220-2
Industrial
Yes
1200 V
15 A
Gen 4
1.5 V
15 A
37 nC per leg
270 W
TO-247-3
Industrial
Yes
1200 V
15 A
Gen 4
1.5 V
15 A
77.5 nC
174.5 W
TO-247-2
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
99 nC
242 W
TO-220-2
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V per leg
20 A
52 nC per leg
352 W
TO-247-3
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
99 nC
246 W
TO-247-2
Industrial
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
52 nC per leg
176 W
TO-247-3
Automotive
Yes
1200 V
20 A
Gen 4
1.5 V
20 A
110 nC
250 W
TO-263-2
Automotive
Yes
1200 V
30 A
Gen 4
1.6 V per leg
30 A
77.5 nC per leg
440 W
TO-247-3
Industrial
Yes
1200 V
40 A
Gen 4
1.5 V per leg
40 A
99 nC per leg
532 W
TO-247-3
Industrial
Yes

XM3 半桥碳化硅功率模块

XM3 半桥碳化硅功率模块

No filters selected, showing all 5 products

XM3 半桥碳化硅功率模块 - Filter By

XM3 半桥碳化硅功率模块

Product SKU
Buy Online
Data Sheet
CAD Model
Package
Configuration
Blocking Voltage
Current Rating
RDS(ON) at 25°C
Generation
Maximum Junction Temperature
Module Size
Recommended For New Design?
Qualification
View Product
XM3
Half-Bridge
1700 V
320 A
3.5 mΩ
Gen 3
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
400 A
4 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
425 A
3.2 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
450 A
2.6 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Industrial
XM3
Half-Bridge
1200 V
450 A
2.6 mΩ
Gen 3 MOS
175 °C
80 x 53 x 19 mm
Yes
Automotive

Wolfspeed WolfPACK™ 碳化硅功率模块

Wolfspeed WolfPACK™ 碳化硅功率模块

No filters selected, showing all 24 products

Wolfspeed WolfPACK™ 碳化硅功率模块 - Filter By

Wolfspeed WolfPACK™ 碳化硅功率模块

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Package
Configuration
Blocking Voltage
Current Rating
RDS(ON) at 25°C
Generation
Maximum Junction Temperature
Module Size
Recommended For New Design?
Qualification
View Product
GM3
Half-Bridge
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
200 A
6 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
181 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
160 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
160 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Half Bridge (AlN substrate)
1200 V
181 A
8 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
117 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
117 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
GM3
Half-Bridge
1200 V
141 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
CAB011A12GM3T
New
GM3
Half-Bridge
1200 V
141 A
11 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
84 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Half-Bridge
1200 V
84 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
GM3
Six-pack (three-phase)
1200 V
50 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
GM3
Six-pack (three-phase)
1200 V
50 A
16 mΩ
Gen 3 MOS
150 °C
62.8 mm x 56.7 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
21 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
48 A
21 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
21 mΩ
Gen 3
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
48 A
21 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
37 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Six-pack (three-phase)
1200 V
30 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial
FM3
Full-Bridge
1200 V
37 A
32 mΩ
Gen 3 MOS
150 °C
62.8 mm x 33.8 mm
Yes
Industrial

用于工业电机驱动的特色参考设计

用于工业电机驱动的特色参考设计

No filters selected, showing all 4 products

用于工业电机驱动的特色参考设计 - Filter By

用于工业电机驱动的特色参考设计

Product SKU
Name
Buy Online
Type
Topology
Power
Discrete/Module
Package
Device SKU(s)
Designed By
View Product
CRD200DA12E-XM3
200 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
200kW
Module
XM3
Wolfspeed
CRD250DA12E-XM3
250 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
250kW
Module
XM3
Wolfspeed
CRD300DA12E-XM3
300 kW XM3 Three-Phase Inverter
DC to AC
Three-Phase, 2-Level
300kW
Module
XM3
Wolfspeed
CRD600DA12E-XM3
600 kW XM3 High Performance Dual Three-Phase Inverter
DC to AC
Dual Three-Phase, 2-Level
600kW
Module
XM3
Wolfspeed
