Wolfspeed's Gen 5 SiC MOSFETs are engineered for real-world performance — not just ideal conditions. Built on optimized planar MOSFET design, Gen 5 achieves better RDS(ON) through tightened epitaxy, increased active area, and enhanced soft body diode technology. The result: lower losses, higher reliability, and greater design confidence for automotive and industrial applications.
第四代1200 V 车规级裸芯片碳化硅 MOSFET

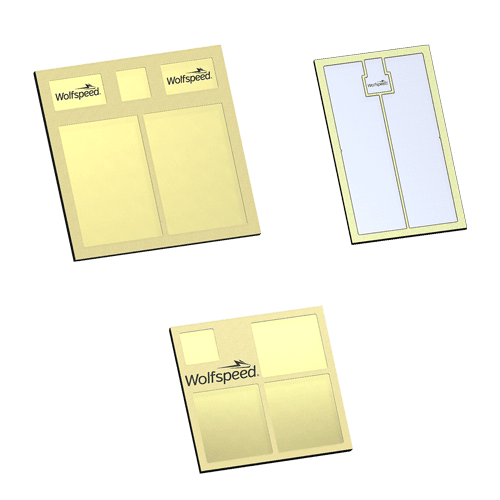

Wolfspeed 推出第四代1200 V 车规级碳化硅裸芯片 MOSFET 系列 。
这是Wolfspeed 推出的第四代高性能碳化硅 MOSFET，采用无封装裸芯片设计，可灵活集成于各类定制模块中。凭借高阻断电压、低导通电阻、高速开关及低电容等卓越特性，该器件成为汽车动力总成系统与电机驱动应用的理想解决方案。
参数数据
No filters selected, showing all 5 products
产品SKU | 在线购买 | 数据手册 | Status | 阻断电压 | 导通电阻 RDS(ON) @ 25°C | 额定电流 | 输出电容 | 反向恢复电荷 (Qrr) | 反向恢复时间 (Trr) | 最高结点温度 | 代际 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1200 V | 9.6 mΩ | 202 A | 259 pF | 2184 nC | 45 ns | 185 °C | Gen 4 | Automotive | |||
Active | 1200 V | 11.4 mΩ | 166 A | 203 pF | 512 nC | 17 ns | 185 °C | Gen 4 | Automotive | |||
Active | 1200 V | 11.6 mΩ | 166 A | 220 pF | 700 nC | 31 ns | 185 °C | Gen 4 | Automotive | |||
Active | 1200 V | 12.5 mΩ | 159 A | 206 pF | 1180 nC | 40 ns | 185 °C | Gen 4 | Automotive | |||
Active | 1200 V | 13 mΩ | 149 A | 210 pF | 1133 nC | 33 ns | 185 °C | Gen 4 | Automotive |
