SpeedVal Kit™ Modular Evaluation Platform
Coming Soon – January 2023
Speed the transition from silicon to Silicon Carbide with the industry’s first modular Silicon Carbide evaluation platform providing a flexible set of building blocks for in-circuit evaluation of system performance.
With Wolfspeed’s SpeedVal Kit you can quickly evaluate and optimize the high-speed dynamic switching performance of Wolfspeed Silicon Carbide MOSFETs paired with your choice of a range of gate driver options from our industry-leading partners. The platform can also be used for performing high-power thermal testing to evaluate operation at real operating points. Additionally, to compliment the hardware testing, an accurate modular spice model has been developed for each block in the system to allow engineers to compare test data with simulation and build upon the simulation file to model their own system.
Flexibility Without Compromise
SpeedVal Kit’s unique card-edge connection to the power daughter card enables users to change Silicon Carbide devices in seconds while maintaining a low-inductance connection to the DC bus, meaning testing that once took weeks can now be completed in minutes. The power daughter card approach allows the same platform to be used for evaluating Silicon Carbide devices in a range of packages from surface mount TOLL devices up through TO-247 packages.

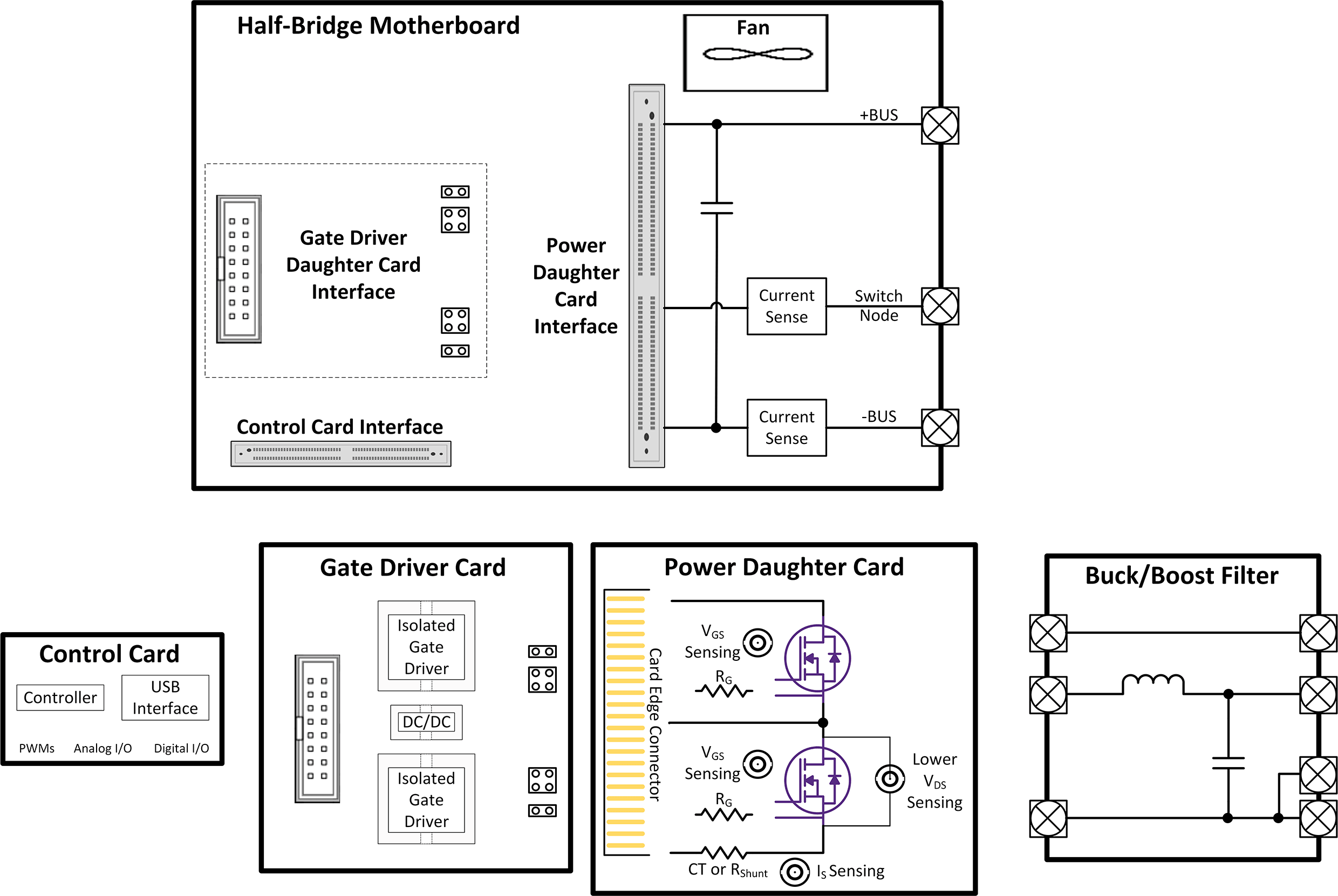

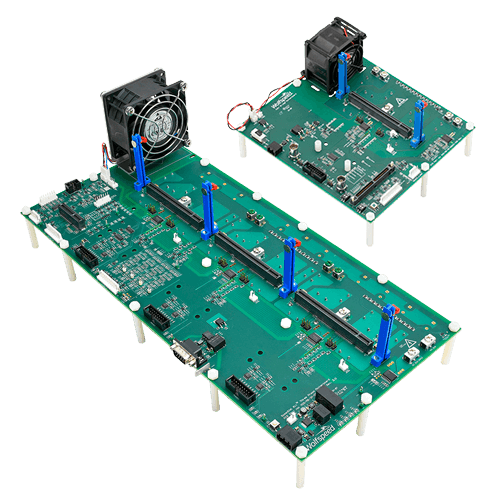

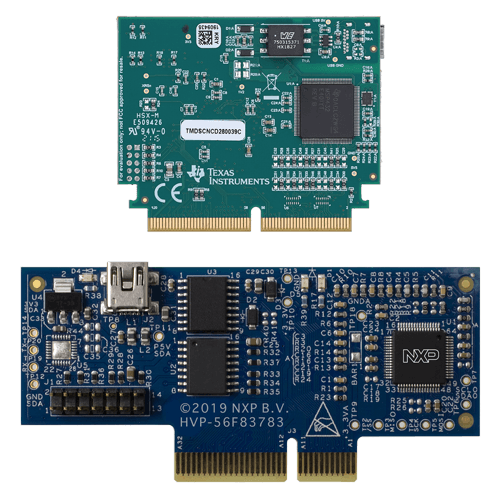

The SpeedVal Kit platform enables testing Silicon Carbide devices, gate drivers, and controls at real operating conditions, allowing you to make the transition to your own design with confidence. This evaluation platform supports a range of voltages, package types, and power topologies to support almost any application. The platform consists of a motherboard, power daughter card, gate driver card, an optional control card, and other optional accessories.
This system enables users to:
- Measure Switching Loss (Eon, Eoff, Qrr)
- Select from a range of gate driver options to suit your needs
- Adjust Rg to optimize switching behavior
- Evaluate discrete Silicon Carbide MOSFETs <1200V
- Operate as a buck or boost converter using the Half-Bridge Motherboard
Explore The Options
Unboxing Wolfspeed’s SpeedVal Kit
What's in the box? Join Wolfspeed Global Distribution Technical Manager Nick Powers as he unboxes the SpeedVal Kit Modular Evaluation Platform and highlights the advantages of using this flexible set of power building blocks for in-circuit evaluation of power system performance.
