15 W Flyback Auxiliary Power Supply

CRD-15DD17P
Note Obsolete.
  • Device SKU Obsolete: C2M1000170J
  • Demonstration of the efficient operation of Wolfspeed's 1700 V; 1Ω Silicon Carbide (SiC) MOSFET with an availability of high blocking voltage and high creepage distance (~7mm)
  • Wolfspeed's 15 W flyback auxiliary power supply board can accept a wide range of AC or DC input voltage (480 VAC – 530 VAC) or (300 VDC—1200 VDC) and provide 12 VDC at the output with an exceptional efficiency of 85%
  • Simple control approach has been utilized to reduce the overall complexity and cost of the system
  • High-frequency operation of Wolfspeed's 1700 V; 1Ω Silicon Carbide MOSFET has been demonstrated as well that helps in reducing form factor of the board significantly.
  • Targeting high voltage applications such as motor drives; solar power; traction; and energy storage
  • Documentation includes bill of materials (BOM); schematic; board layout; application note and a power point presentation

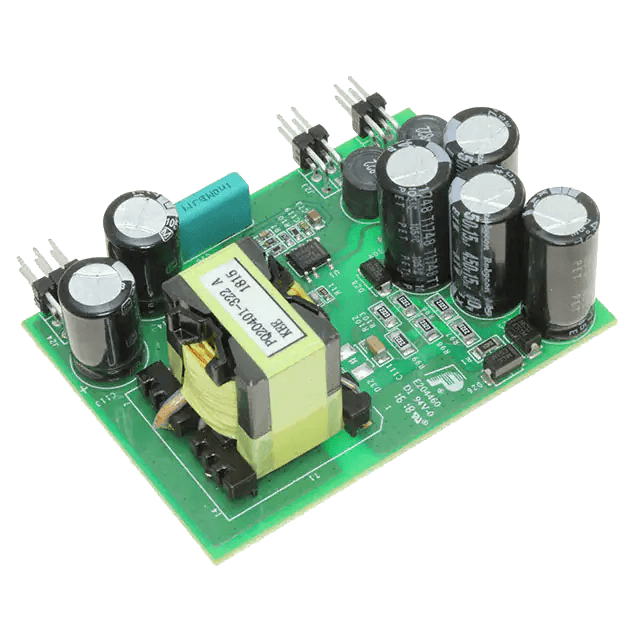

Product Shot of Wolfspeed's Reference Design of a Wide Input Voltage Range (300 VDC – 1200 VDC) 15W Flyback Auxiliary Power Supply Board

Documents, Tools & Support

  • Technical & Sales Documents
  • Tools & Support

Documents

7 Documents Available
Document Type
Document Name
Last Updated
User Guide
PRD-06980: CRD-15DD17P 15 W Flyback Auxiliary Power Supply User Guide
01/2024
Application Notes
PRD-05652: Mounting Recommendations and Thermal Measurement for Wolfspeed® SiC Power Devices in Through-Hole Packages
02/2025
Application Notes
PRD-06701: Thermal Management of Bottom-Side Cooled Surface-Mount Devices & Design Considerations
12/2023
Application Notes
PRD-08296: SiC MOSFET Short Circuit Events
11/2023
Application Notes
PRD-06933: Capacitance Ratio and Parasitic Turn-on
01/2023
White Papers
Driving Industrial E-Mobility With Silicon Carbide Semiconductors
11/2024
Product Catalog
Power Product Line Card
01/2025
