KIT CRD CIL12N GMA

Dynamic Characterization Evaluation Tool Optimized for the Wolfspeed WolfPACK™ GM3 Half Bridge Module Platform

kit_crd_cil12n_gma_product

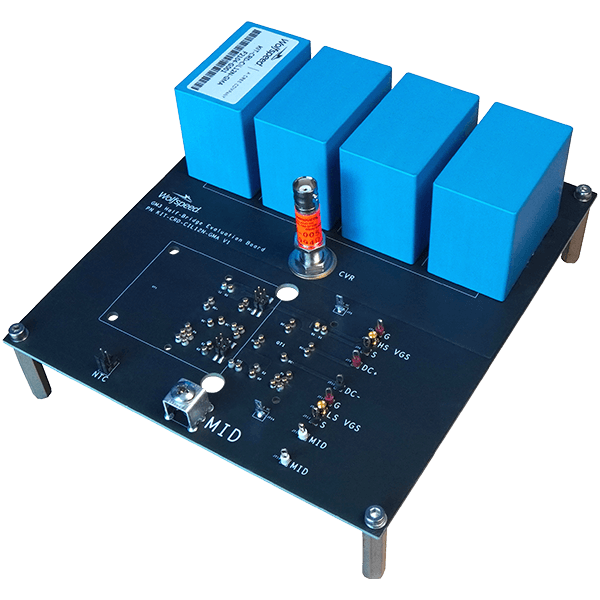

KIT-CRD-CIL12N-GMA
Request Sample

Wolfspeed’s KIT-CRD-CIL12N-GMA is a dynamic characterization tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK™ GM3 Silicon Carbide (SiC) half-bridge power modules. A clamped inductive load (CIL) test circuit with current measurement provides a high speed; low inductance test fixture for double pulse testing. This test fixture in conjuction with a choice of gate driver boards options allows measurement of:

  • Timing (TDelay-On; TDelay-Off; TRise; TFall)
  • Overshoot (VDS-Max; ID-Max)
  • Speed (di/dt; dv/dt)
  • Switching Loss (EON; EOFF; ERR)

Specifications

  • Optimized for Wolfspeed’s WolfPack GM3 SiC half bridge power modules
  • DC bus voltage up to 1000V
  • On Board 200uF Bulk Capacitor and High Frequency Film Capacitor Bank
  • High speed; low inductance layout with stray inductance of 4.9nH @10Mhz
  • On-board Current Viewing Resistor (CVR)
  • Screw terminal‘s for supply; midpoint and load inductor connections
Applications
  • EV Fast Charging
  • Industrial Power
  • UPS
  • Induction Heating Welding
  • Industrial Motor Drives
  • Power Supplies
  • Solar & Renewable Energy
  • Grid Infrastructure
What's Included
  • Fully assembled PCB board
  • Reference Design Files
kit_crd_cil12n_fma_block_diagram
Film Bulk Cap

200uF, 1100V VDC film bulk cap to charge up load inductor to desired current without significantly discharging dc bus

Current Viewing Resistor

Current Viewing resistor enables high‐fidelity, high‐accuracy current measurements

wolfpack_block_diagram
Wolfspeed WolfPACK™

1200 V, All-Silicon Carbide High-Performance, Half-Bridge Module

View Products
Gate Driver Board

Analog Devices EVAL-ADUM4146WHB1Z

Silicon labs S823H-AAWA-KIT

Texas Instruments CGD1700HB2M-UNA (Paper Design Only)
