    Gate Driver Board for 3rd Generation (C3M™) Silicon Carbide MOSFETs

    CGD15SG00D2
    Request Sample

    Features:

    • Supports 650 V and 1200 V (C3M™) Silicon Carbide MOSFETs
    • Gate driver output voltage = +15 V(max) / -3.3 V(min)
    • Low capacitance LLC isolated power supply
    • High Creepage (8mm) clearance
    • Resistor network allows user friendly optimization of gate signals
    • Full reference design files available for download
    • Available for purchase

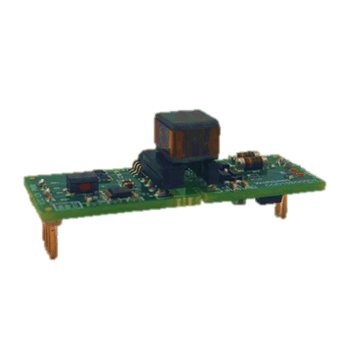

    Product shot of the Gate Driver Board for 3rd Generation (C3M™) SiC MOSFETs
