2.2 kW Bridgeless Totem-Pole PFC

CRD-02AD065N

Download Design Files

Highly efficient and low cost solution of 2.2 kW bridgeless totem-pole PFC topology based on Wolfspeed’s latest (C3M™) 650 V 60 mΩ SiC MOSFETs
Comfortably achieve Titanium standard by having > 98.5% efficiency while THD < 4% under all load conditions
Innovative resistor based current sensing solution
Distortion less inductor current at zero crossing during all load conditions
Reduced Bill of Material (BOM) by the use of general purpose diodes in place of low frequency switches
Main target applications of this demo board include: Server; Telecom and Industrial power supply units (PSU)
Documentation includes bill of materials (BOM); schematic; board layout; application note

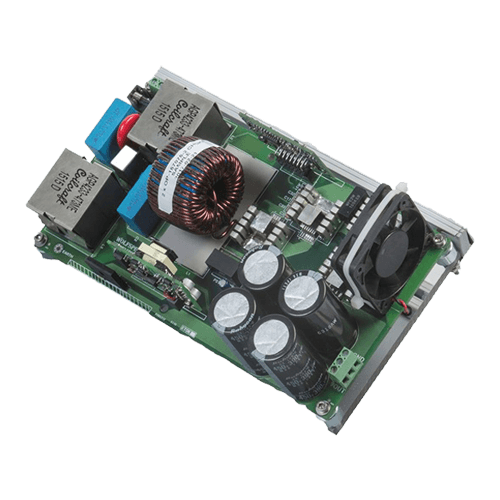

Product Shot of Wolfspeed's Reference Design of a 2.2 kW High Efficiency (80+ Titanium) Bridgeless Totem-Pole PFC with SiC MOSFET

Documents, Tools & Support

Technical & Sales Documents
Tools & Support

Documents

11 Documents Available

Document Type	Document Name	Last Updated
User Guide	PRD-06982: CRD-02AD065N 2.2 kW Bridgeless Totem-Pole PFC User Guide (PDF)	01/2024
Design Files	CRD-02AD065N ALL Design Files (ZIP)	03/2020
Application Notes	PRD-05652: Mounting Recommendations and Thermal Measurement for Wolfspeed® SiC Power Devices in Through-Hole Packages (PDF)	02/2025
Application Notes	PRD-08367: EV Charging Power Topologies Design Guidebook (PDF)	01/2024
Application Notes	PRD-06701: Thermal Management of Bottom-Side Cooled Surface-Mount Devices & Design Considerations (PDF)	12/2023
Application Notes	PRD-08296: SiC MOSFET Short Circuit Events (PDF)	11/2023
Application Notes	PRD-06933: Capacitance Ratio and Parasitic Turn-on (PDF)	01/2023
White Papers	Designed to Last, Even in the Harshest Environments (PDF) New	11/2025
White Papers	Enhancing System Durability with Advanced Packaging for Silicon Carbide (PDF)	11/2025
White Papers	SiC Power Module Reliability: Wolfspeed’s Power Cycling and Lifetime Modeling Approach (PDF) New	11/2025
Product Catalog	Power Product Line Card (PDF)	01/2025
