3.6 kW Bridgeless Totem-Pole PFC with Synchronous SiC MOSFETs

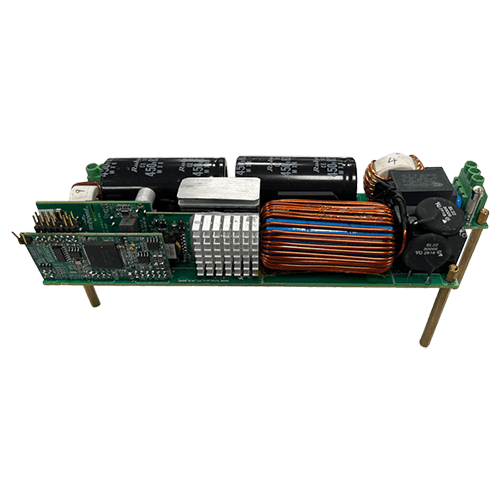

Product shot of Wolfspeed's 3.6kW Bridgeless Totem-Pole PFC reference design.
CRD-03600AD065E-L
This reference design demonstrates the application of Wolfspeed’s C3M™ 650 V Silicon Carbide MOSFET Technology in TOLL (TO - Leadless) Package to create a 3.6kW bridgeless totem-pole PFC for server power supply, data center power supply, mining power supply, and telecom systems. Wolfspeed’s C3M™ 650 V Silicon Carbide MOSFET in a TOLL package offers low conduction and switching losses, which further enables smaller, lighter and highly efficient power conversion systems. The design accomplishes:
  • Peak efficiencies of 99%
  • Suitable for use in 80+ Platinum/Titanium, Energy Star, Lot9, and OCP3.0 supplies
  • Power density of 92 W/in3
  • 60 kHz switching frequency
This reference design is offered as a comprehensive design package which can be used as a starting point for new designs with Silicon Carbide power devices.

Ratings

  • Input voltage range: 180-305VAC
  • Output Voltage: 440VDC
  • Output Power: 3.6kW (Derated at low line)
  • Switching Frequency: 60kHz
  • Peak Efficiency: 99%
  • Forced air cooling
Applications
  • Enterprise power supplies
  • Server and telecom power supplies
  • Mining power supplies
  • Battery Management Systems
What's Included

Reference Design Files for:

  • Main board
  • High Frequency MOSFET board
  • Flyback power supply board
  • Controller board
Request Separately
  • Mechanical Specifications

Documents, Tools, & Support

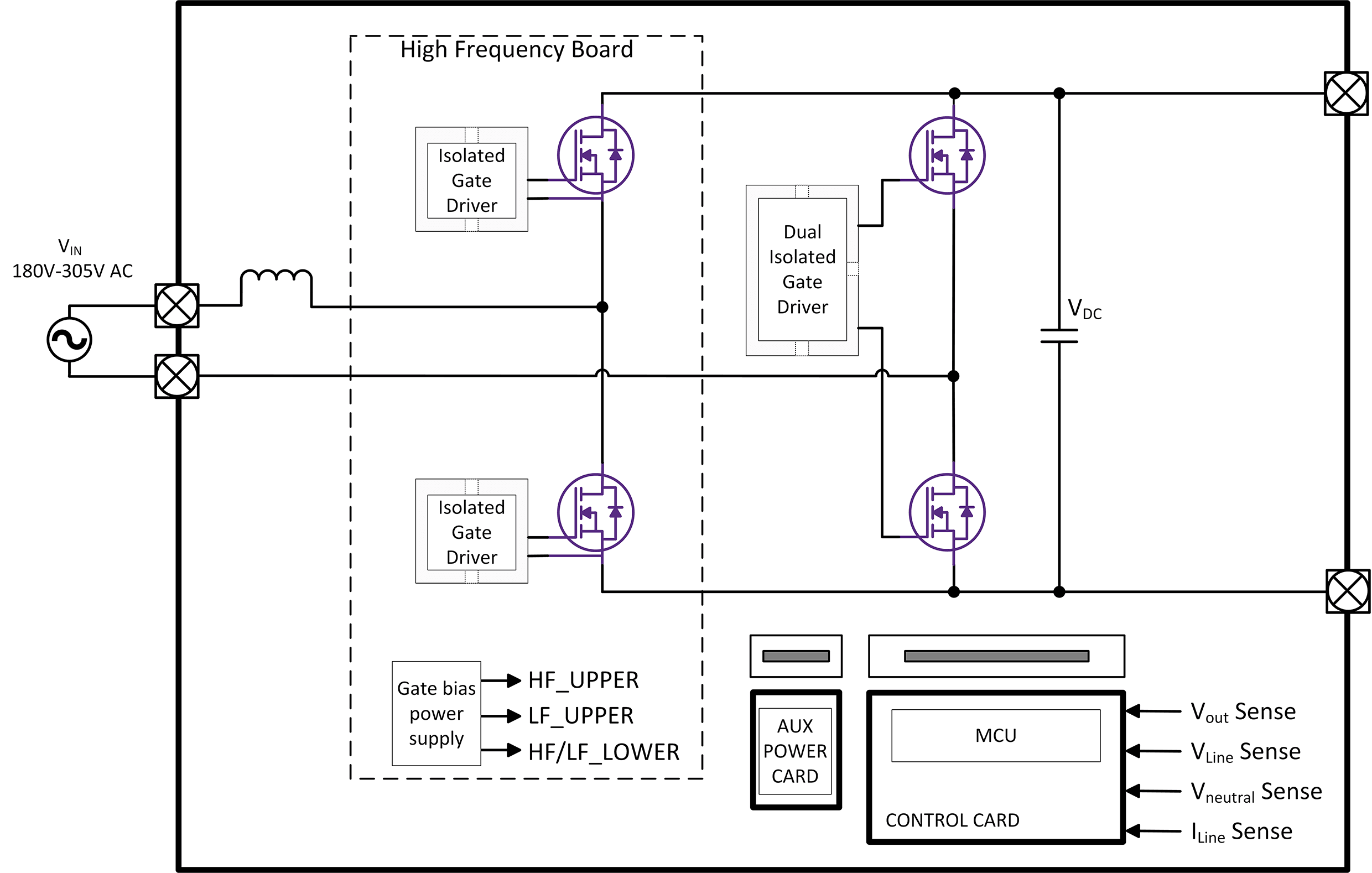

crd-03600ad065n-l block diagram
C3M0045065L

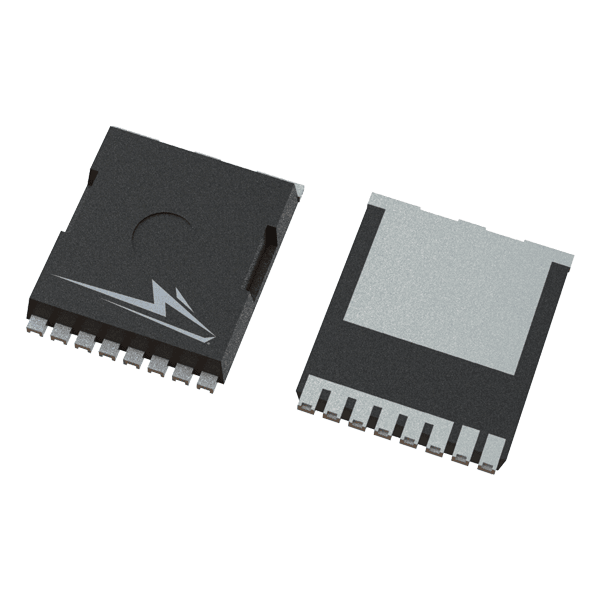

TOLL package C3M™ 650V Silicon Carbide Power MOSFET

View Product
C3M0045065L

TOLL package C3M™ 650V Silicon Carbide Power MOSFET

View Product
Angled product photo of the front and back of the TO-247-3 package used for Wolfspeed's Discrete Silicon Carbide MOSFETs.
C3M0015065D

TO-247 package C3M™ 650V Silicon Carbide Power MOSFET

View Product
Angled product photo of the front and back of the TO-247-3 package used for Wolfspeed's Discrete Silicon Carbide MOSFETs.
C3M0015065D

TO-247 package C3M™ 650V Silicon Carbide Power MOSFET

View Product
UCC5350

5A, High Voltage, Isolated Gate Driver with Internal Miller Clamp

View Product
UCC5350

5A, High Voltage, Isolated Gate Driver with Internal Miller Clamp

View Product
Si8233BB

4A , 2.5kV Isolated Dual Channel gate Driver

View Product
TMS320F280049C

C2000 real-time microcontroller MCU with digital control algorithms

View Product
MAX13256

36V H-Bridge Transformer Driver for Isolated Supplies

View Product
