    • 7.5 kW FM3 Three-Phase Motor Drive

    7.5 kW FM3 Three-Phase Motor Drive

    CRD07500AA12N-FMC
    Download Design Files

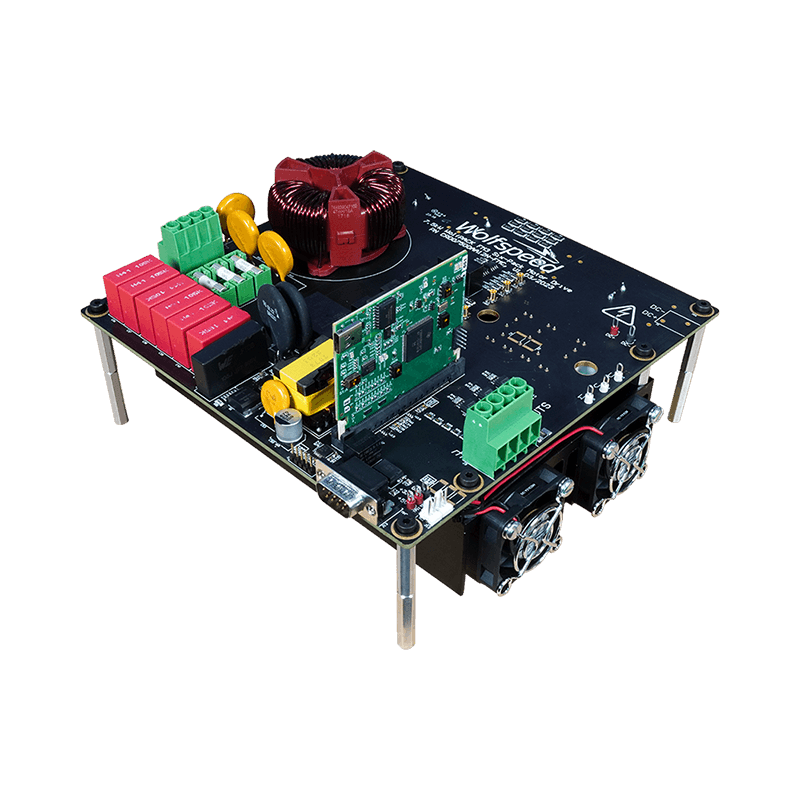

    This reference design demonstrates the application of Wolfspeed’s WolfPACK™ FM3 power modules to create a high power density three-phase inverter acting as the output stage of a complete industrial motor drive solution. The Wolfspeed WolfPACK™ FM3 power module platform is optimized for Silicon Carbide MOSFETs in a high-density, low-inductance footrpint, which reduces system level losses and simplifies the overall system design. As a complete industrial motor drive solution, this design includes everything you need to quickly implement closed-loop motor control to achieve your design goals.

    Flexible Operating Conditions

    • AC to AC with DC link
    • General purpose controller
    • Customizable firmware
    • Integrated encoder feedback measurement
    • Isolated CAN communication
    • Integrated EMI filter

    Single Power Module Solution

    • 32 mΩ six-pack module
    • All Silicon Carbide MOSFETs
    • Integrated temperature sensor
    • Baseplateless package with isolated alumina substrate
    Wolfspeed Reference Design CRD07500AA12N-FMC 7.5 kW FM3 Three-Phase Motor Drive

    Knowledge Center

    View All

    PowerMakers:
    How Wolfspeed’s Fayetteville Team Turns Silicon Carbide Expertise into Customer Momentum

    At our Fayetteville site, Ty McNutt and his team don’t just solve for specs —they rethink systems. That’s the difference between supplying parts and becoming the partner customers rely on.
    Continue Reading  Thought Leadership

    Beyond Silicon’s Limits:
    How High‑Voltage Silicon Carbide is Redefining Critical Power

    Continue Reading  Thought Leadership

    Wolfspeed’s 300 mm Silicon Carbide Technology as a Materials Foundation for Next-Generation AI and HPC Advanced Packaging

    Continue Reading  Technical Articles

    Footer

    Wolfspeed Logo

    Social Media

    • Instagram
    • X
    • LinkedIn
    • YouTube

    Footer Navigation

    • Contact
    • Where to Buy
    • Licensing
    • Suppliers & Contractors

    Legal

    • Privacy Policy
    • Cookie Policy
    • Terms Of Use
    • Accessibility
    Copyright © 2026 Wolfspeed, Inc.

    Specifications

    • Output power of 7.5 kW
    • Switching frequency of 100 kHz
    • Input/output voltage of 480 VAC

    Applications

    • Industrial Motor Drives
    • Heat Pump and Air Conditioning

    What's Included

    • User Guide
    • Schematics
    • PCB Layout
    • BOM
    • 3D Model

    Product Compatibility

    • CCB032M12FM3

    Documents, Tools & Support

    • Technical & Sales Documents
    • Tools & Support

    Documents

    18 Documents Available
    Document Type
    Document Name
    Last Updated
    User Guide
    PRD-02302: Wolfspeed Wolfpack Mounting Instructions & PCB Requirements User Guide (PDF)
    		04/2025
    User Guide
    PRD-07933: Power Module Thermal Interface Material Application User Guide (PDF)
    		03/2025
    User Guide
    PRD-07561: CRD07500AA12N-FMC 7.5 kW Motor Drive User Guide (PDF)
    		01/2024
    Design Files
    CRD07500AA12N-FMC Gerber File (ZIP)
    		05/2023
    Design Files
    CRD07500AA12N-FMC BOM (ZIP)
    		05/2023
    Design Files
    CRD07500AA12N-FMC Schematic (ZIP)
    		05/2023
    Design Files
    CRD07500AA12N-FMC Altium (ZIP)
    		05/2023
    Design Files
    CRD07500AA12N-FMC ALL Design Files (ZIP)
    		05/2023
    Application Notes
    PRD-08376: Thermal Characterization Methods and Applications (PDF)
    		01/2024
    Application Notes
    PRD-07968: Wolfspeed WolfPACK™ Dynamic Performance (PDF)
    		01/2024
    Application Notes
    PRD-08296: SiC MOSFET Short Circuit Events (PDF)
    		11/2023
    Application Notes
    PRD-06933: Capacitance Ratio and Parasitic Turn-on (PDF)
    		01/2023
    White Papers
    Designed to Last, Even in the Harshest Environments (PDF)
    		11/2025
    White Papers
    Enhancing System Durability with Advanced Packaging for Silicon Carbide (PDF)
    		11/2025
    White Papers
    SiC Power Module Reliability: Wolfspeed’s Power Cycling and Lifetime Modeling Approach (PDF)
    		11/2025
    White Papers
    Driving Industrial E-Mobility With Silicon Carbide Semiconductors (Link)
    		11/2024
    Sales Sheets & Flyers
    7.5 kW FM3 Three-Phase Motor Drive Product Brief (PDF)
    		05/2023
    Sales Terms
    Wolfspeed, Inc. Sales Terms and Conditions (PDF)
    		04/2025

    Support

    Technical SupportPower Applications Forum
    Buy OnlineFind a Distributor
    Request SamplesVisit the Sample Center
