    CPM3-6500-R100A

    6500 V, 105 mΩ, 30 A, Industrial qualified, Bare Die Silicon Carbide (SiC) MOSFET
    Download Data Sheet

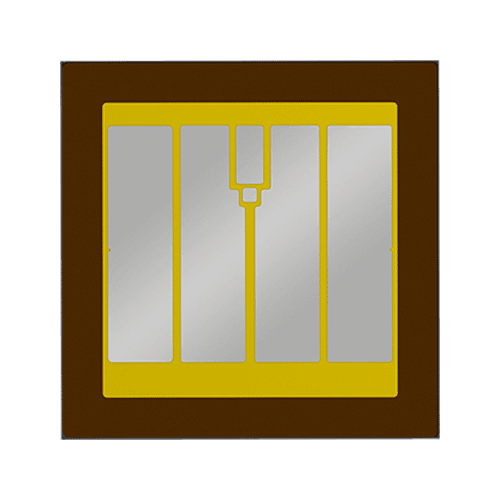

    Rendering of Wolfspeed's 6500 V silicon carbide (SiC) bare die MOSFET
    • Overview
    • Parametric Data
    • Order Details
    • Product Details
    • Tools & Support
    • Overview
    • Parametric Data
    • Order Details
    • Product Details
    • Tools & Support

    Parametric Data

    Display All SKUs in Product Family (1)
    No filters selected, showing all 1 products
    Product SKU
    Buy Online
    Request Sample
    Data Sheet
    Status
    Blocking Voltage
    RDS(ON) at 25°C
    Current Rating
    Gate Charge Total
    Output Capacitance
    Reverse Recovery Charge (Qrr)
    Reverse Recovery Time (Trr)
    Tjmin
    Tjmax
    Generation
    Qualification
    CPM3-6500-R100A
    New
    Download
    Active
    6500 V
    105 mΩ
    30 A
    365 nC
    71 pF
    379 nC
    56.6 ns
    -55 °C
    175 °C
    Gen 3
    Industrial

    Purchase

    Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.

    Knowledge Center

    View All

    Engineering for Outcomes:
    Three Ways Wolfspeed Gen 5 Achieves Real-World Performance

    Continue Reading Thought Leadership

    A New Foundation for Critical Power Conversion

    As AI scales, a greater lens is on the upstream power sources that are expected to keep up with rapidly expanding data center deployments. Amperesand is helping build the cornerstone of tomorrow’s grid by developing highly reliable, medium voltage (MV) SiC-based solid state transformers. Read more to learn how Amperesand and Wolfspeed partnered to make it happen.
    Continue Reading Case Study

    PowerMakers:
    How Wolfspeed’s Fayetteville Team Turns Silicon Carbide Expertise into Customer Momentum

    Continue Reading Thought Leadership

    Footer

    Wolfspeed Logo

    Social Media

    • Instagram
    • X
    • LinkedIn
    • YouTube

    Footer Navigation

    • Contact
    • Where to Buy
    • Intellectual Property
    • Suppliers & Contractors

    Legal

    • Privacy Policy
    • Cookie Policy
    • Terms Of Use
    • Accessibility
    Copyright © 2026 Wolfspeed, Inc.

    Ordering & Compliance

    CPM3-6500-R100A Ordering

    Part Number
    CPM3-6500-R100A
    New
    Order Status
    		Active
    Buy Online
    Container Type
    		Film Frame

    CPM3-6500-R100A Compliance

    Halogen Free
    		Yes
    Lead Free
    		Yes
    California Prop 65
    		Learn More
    ECCN
    		EAR99

    Product Details

    Features

    • Easy to parallel and simple to drive
    • Temperature-independent high-speed switching
    • Integrated lumped gate resistance
    • Enhanced reliability
    • Maintains reliable performance during reverse power flow

    Typical Applications

    • Pulsed Power
    • Medium-Voltage Drives
    • Solid-State Transformers
    • Smart Grid/Grid-Tie Distributed Generation
    • High-Voltage Power Supplies

    Tools & Support

    • Technical & Sales Documents
    • Tools & Support

    Documents

    11 Documents Available
    Document Type
    Document Name
    Last Updated
    Data Sheets
    CPM3-6500-R100A (PDF)
    		03/2026
    Application Notes
    PRD-09129: Mitigating Package Induced Failures (PDF)
    		05/2025
    Application Notes
    PRD-08937: Impact of VGS on SiC MOSFET Characteristics (PDF)
    		11/2024
    Application Notes
    PRD-08296: SiC MOSFET Short Circuit Events (PDF)
    		11/2023
    Application Notes
    PRD-06933: Capacitance Ratio and Parasitic Turn-on (PDF)
    		01/2023
    White Papers
    Answering the call: Powering AI with reliable silicon carbide-based solid-state transformers (PDF)
    		03/2026
    White Papers
    Designed to Last, Even in the Harshest Environments (PDF)
    		11/2025
    White Papers
    Enhancing System Durability with Advanced Packaging for Silicon Carbide (PDF)
    		11/2025
    White Papers
    SiC Power Module Reliability: Wolfspeed’s Power Cycling and Lifetime Modeling Approach (PDF)
    		11/2025
    Sales Terms
    Wolfspeed, Inc. Sales Terms and Conditions (PDF)
    		04/2025
    Product Catalog
    Power Product Line Card (PDF)
    		07/2026

    Support

    Technical SupportPower Applications Forum
    Buy OnlineFind a Distributor
