Features
- Automotive Qualified
- High blocking voltage with industry leading low RDS(on) over temperature stability
- Resistant to latch-up
- High gate resistance for drives

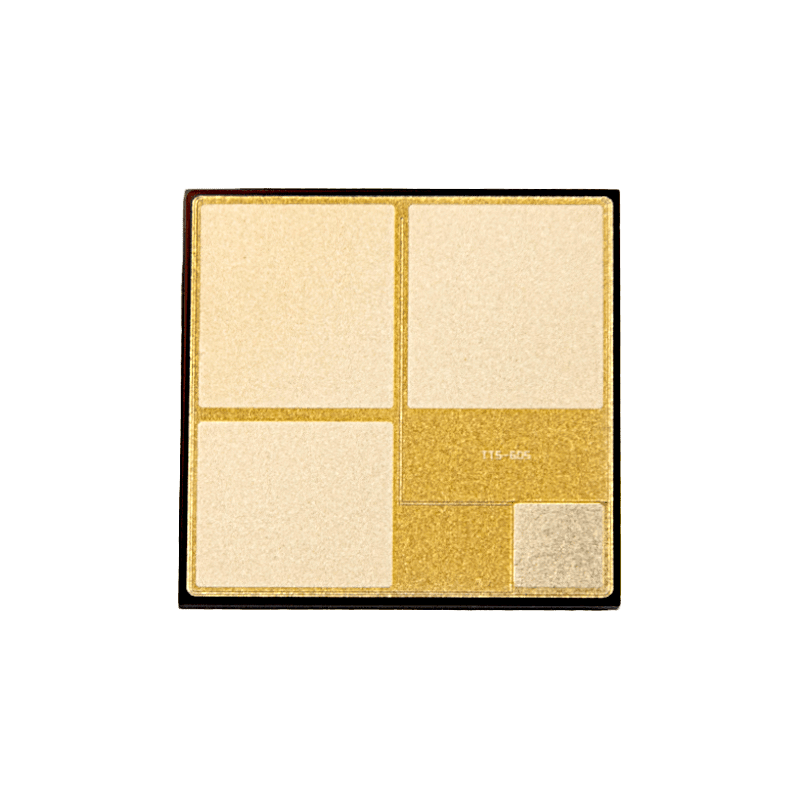

750 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 3+
EPM3-0750-0010D
750 V; 10 mΩ; 178 A; Gen3+ Bare Die Silicon Carbide (SiC) MOSFET
Wolfspeed continues to lead in Silicon Carbide with the Automotive 750 V E-Series Bare Die Silicon Carbide MOSFET. The product is fully automotive qualified, with high blocking voltage with the industry-leading low RDS(ON) over temperature stability, enabling low conduction losses and highest figures of merit in the most demanding applications. This device is optimized for use in high power applications such as automotive drive trains, motor drives, solid state circuit breakers, and more.
The 750 V MOSFET is designed for low RDS(ON), are easy to parallel and compatible with standard gate drive design. The efficiency gained by moving from a silicon-based solution to Silicon Carbide can help reduce system size, weight, and cooling requirements.
Products
750 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 3+
No filters selected, showing all 1 products
750 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 3+
Product SKU | Buy Online | Data Sheet | Blocking Voltage | RDS(ON) at 25°C | Current Rating | Gate Charge Total | Output Capacitance | Reverse Recovery Charge (Qrr) | Reverse Recovery Time (Trr) | Maximum Junction Temperature | Generation | Recommended For New Design? |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
EPM3-0750-0010D New | 750 V | 10 mΩ | 178 A | 267 nC | 340 pF | 737 nC | 25 ns | 175 °C | Gen 3+ | Yes |
Benefits
- Improves System Efficiency with lower switching and conduction losses
- Reduces System Size, Weight, and Cooling Requirements
- Enables high switching frequency operation
- Easy to parallel and compatible with standard gate drive design
Applications
- Automotive Drivetrain
- Motor Drives
- Solid State Circuit Breaker
Documents, Tools & Support
- Technical & Sales Documents
- Tools & Support
- Compliance
Documents
Document Type | Document Name |
|---|---|
| Application Notes | |
| Product Catalog | |
| Sales Sheets & Flyers | |
| Sales Terms | |
| Sales Terms | This document details the production packaging details including container type, quantity, MOQ, and dimensions as well as the moisture sensitivity level (MSL) for discrete SiC Schottky Diodes and MOSFETs
|
