Features
- 650-Volt Schottky Rectifier
- Zero Forward and Reverse Recovery
- High-Frequency Operation
- Temperature-Independent Switching Behavior
- Extremely Fast Switching
- Positive temperature coefficient on VF

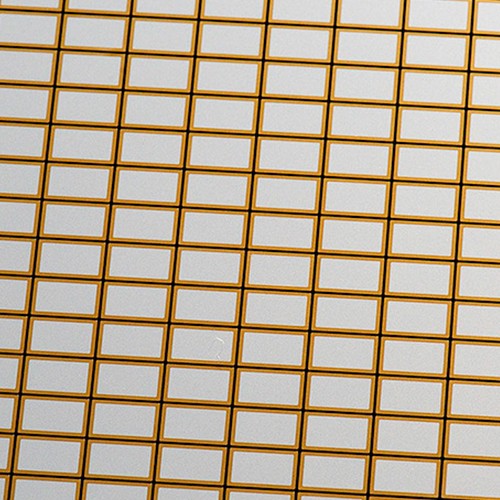

650 V Bare Die Silicon Carbide Schottky Diodes – Gen 2
Wolfspeed’s Gen 2 Family of 650 V Silicon Carbide Schottky Diodes
Wolfspeed's Gen 2 family of 650 V Silicon Carbide (SiC) Schottky diodes feature extremely fast switching; zero forward & reverse recovery; temperature-independent switcing behavior; and high-frequency operation. Optimized for use in high power applications like Switch Mode Power Supplies (SMPS); Boost diodes in PFC or DC/DC stages; Free Wheeling Diodes in Inverter stages; AC/DC converters; solar energy; and more.
Products
650 V Bare Die Silicon Carbide Schottky Diodes – Gen 2
No filters selected, showing all 5 products
650 V Bare Die Silicon Carbide Schottky Diodes – Gen 2
Product SKU | Buy Online | Data Sheet | Qualification | Blocking Voltage | Current Rating | Total Capacitive Charge (QC (typ)) | Maximum Junction Temperature | Generation | Recommended For New Design? |
|---|---|---|---|---|---|---|---|---|---|
Industrial | 650 V | 10 A | 24 nC | 175 °C | Gen 2 | Yes | |||
Industrial | 650 V | 8 A | 20 nC | 175 °C | Gen 2 | Yes | |||
Industrial | 650 V | 12 A | 34 nC | 175 °C | Gen 2 | Yes | |||
Industrial | 650 V | 6 A | 15 nC | 175 °C | Gen 2 | Yes | |||
Industrial | 650 V | 16 A | 44.5 nC | 175 °C | Gen 2 | Yes |
Product Details
Benefits
- Reduces system size; weight; and cooling requirements
- Increased power density
- Parallel mode operation possible
Applications
- Switch Mode Power Supplies (SMPS)
- Boost diodes in PFC or DC/DC stages
- Free Wheeling Diodes in Inverter stages
- AC/DC converters
- Solar energy systems
Documents, Tools & Support
- Technical & Sales Documents
- Tools & Support
- Compliance
Documents
Document Type | Document Name |
|---|---|
| Application Notes | |
| Data Sheets | |
| Data Sheets | |
| Data Sheets | |
| Data Sheets | |
| Data Sheets | |
| Sales Terms | This document details the production packaging details including container type, quantity, MOQ, and dimensions as well as the moisture sensitivity level (MSL) for discrete SiC Schottky Diodes and MOSFETs
|
| Sales Terms |
