HAS350M12BM3

1200 V, 4 mΩ, 62 mm, Half-Bridge, Industrial + HV-H3TRB qualified, CTI 600, SiC Power Module

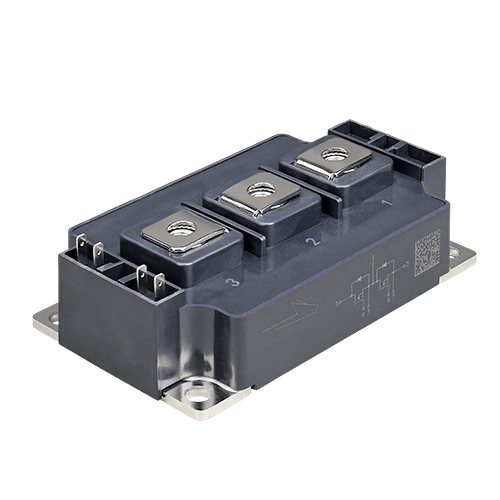

Product shot of Wolfspeed's HAS BM3 Half-bridge SiC power module package

Parametric Data

No filters selected, showing all 1 products

Product SKU	Buy Online	Data Sheet	Status	Package	Configuration	Blocking Voltage	Current Rating	R_DS(ON) at 25°C	T_jmax	Module Size	Pre-Applied TIM	Qualification	Generation	View Product
HAS350M12BM3	Purchase HAS350M12BM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.		Active	62 mm	Half-Bridge	1200 V	350 A	4 mΩ	150 °C	105 x 62 x 31 mm	No	Industrial + HV-H3TRB	Gen 3

Ordering & Compliance

HAS350M12BM3 Ordering

Part Number	HAS350M12BM3
Order Status	Active
Buy Online
Package	62 mm
Container Type	Unit Box
Container Qty.	1
Standard Packing Qty.	10
Minimum Order Qty.	10

HAS350M12BM3 Compliance

RoHS Declaration	Download
REACH Declaration	Download
California Prop 65	Learn More
ECCN	EAR99
UL Recognized	Yes(Learn More)

Product Details

Features

Industry-Leading
Reliable silicon carbide MOSFET Technology in Robust
Well-Established 62mm Form Factor
Strong Thermal Performance + Material Selections Optimized for Industrial & Harsh Environment Applications
Low-Inductance Design (10 – 15 nH) for Fast Switching with Low Power Losses
MOSFET Die and Selected Modules Qualified to HV-H3TRB
CTI 600

Benefits

Broad Portfolio of Current and Voltage Ratings Available to Fit Diverse Industrial Application Requirements
Fast Time to Market with Minimal Development Required for Transition from 62 mm IGBT Packages
Reduced Cooling Requirements & Overall System Cost
Optimized Internal Layout for Low Power Losses & Minimal Overshoot for Maximum Voltage Utilization

Applications

Induction Heating
Motor Drives
Energy Generation / Smart Grids / Smart Energy
Railway
EV Fast Charging
UPS and SMPS

Featured Resources

Documents, Tools & Support

Technical & Sales Documents
Tools & Support
Compliance

Documents

28 Documents Available

Document Type	Document Name	Last Updated
Data Sheets	HAS350M12BM3 (PDF)	03/2025
User Guide	PRD-08333: Wolfspeed Module CIL Evaluation Kits User Guide (PDF)	03/2025
User Guide	PRD-07933: Power Module Thermal Interface Material Application User Guide (PDF)	03/2025
User Guide	PRD-09035: Wolfspeed Power Module RC Thermal Models User Guide (PDF)	01/2025
User Guide	PRD-07913: Wolfspeed Power Module SPICE Models User Guide (PDF)	12/2023
User Guide	PRD-06983: BM Module Platform Mounting User Guide (PDF)	12/2023
Application Notes	PRD-09597: Introduction to Pulsed Current Safe Operating Area (PDF) New	10/2025
Application Notes	PRD-09301: Gate Driver Design for SiC Power Modules (PDF)	05/2025
Application Notes	PRD-07845: Power Module Baseplate Capacitance and Electromagnetic Compatibility (PDF)	03/2025
Application Notes	PRD-08911: Considerations for Current Balancing in Paralleled SiC Power Modules (PDF)	01/2025
Application Notes	PRD-04814: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies (PDF)	01/2025
Application Notes	PRD-08907: Mitigating EMI with SiC Solutions in Renewable Energy & Grid-Connected Power Converters (PDF)	01/2025
Application Notes	PRD-08710: Measuring Stray Inductance in Power Electronics Systems (PDF)	07/2024
Application Notes	PRD-08734: Understanding and Simulating Parasitic Inductance in Silicon Carbide Systems (PDF)	07/2024
Application Notes	PRD-08376: Thermal Characterization Methods and Applications (PDF)	01/2024
Application Notes	PRD-08296: SiC MOSFET Short Circuit Events (PDF)	11/2023
Application Notes	PRD-06379: Environmental Considerations for Power Electronics Systems (PDF)	08/2023
Application Notes	PRD-06933: Capacitance Ratio and Parasitic Turn-on (PDF)	01/2023
Application Notes	PRD-05653: Recommended Solder Profiles for Power Products (PDF)	09/2022
White Papers	Designed to Last, Even in the Harshest Environments (PDF) New	11/2025
White Papers	Enhancing System Durability with Advanced Packaging for Silicon Carbide (PDF)	11/2025
White Papers	SiC Power Module Reliability: Wolfspeed’s Power Cycling and Lifetime Modeling Approach (PDF) New	11/2025
White Papers	Driving Industrial E-Mobility With Silicon Carbide Semiconductors (Link)	11/2024
Sales Sheets & Flyers	Power Modules Gate Driver Boards One-Page Overview (PDF)	01/2024
Sales Sheets & Flyers	Silicon Carbide Power Modules Product Brief (PDF)	01/2024
Sales Sheets & Flyers	Wolfspeed BM3 Power Modules Product Brief (PDF)	02/2023
Sales Terms	Wolfspeed, Inc. Sales Terms and Conditions (PDF)	04/2025
Product Catalog	Power Product Line Card (PDF)	01/2025
