EDB003M06TM3L

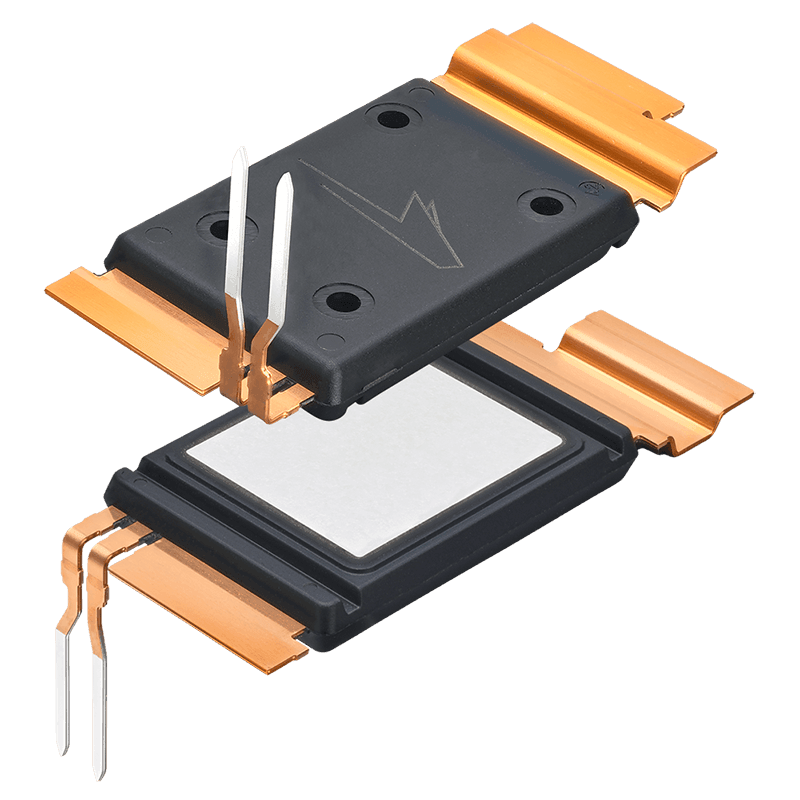

650 V, 3.3 mΩ, TM, Single Switch, Automotive qualified, Silicon Carbide (SiC) Power Module with long Leads

Parametric Data

No filters selected, showing all 1 products

Product SKU	Data Sheet	Status	Package	Configuration	Blocking Voltage	Current Rating	R_DS(ON) at 25°C	Generation	T_jmin	T_jmax	Module Size	Qualification	View Product
EDB003M06TM3L		Active	TM	Single Switch	650 V	440 A	3.3 mΩ	Gen 3	-40 °C	175 °C	43.65 mm x 18.9 mm x 19 mm	Automotive

Ordering & Compliance

EDB003M06TM3L Ordering

Part Number	EDB003M06TM3L
Order Status	Active
Package	TM
Container Type	Tray
Container Qty.	10
Standard Packing Qty.	30
Minimum Order Qty.	300

EDB003M06TM3L Compliance

Halogen Free	Yes
RoHS Declaration	Download
REACH Declaration	Download
California Prop 65	Learn More
ECCN	EAR99
UL Recognized	No
Moisture Sensitivity Level	MSL 3

Product Details

Features

AQG 324 Qualified
Very low On-State Resistance
Baseplateless Module with High Performance Si₃N₄ Insulator
Laser Weldable Power Terminals
Sinterable and Solderable Backside (Silver Plated)
Solderable Signal Pins (Silver Plated)
Package with Extended Creepage (Creepage Distance > 6.3 mm)
Comparative Tracking Index (CTI) > 600 (Material Group I)
Limited Extended Operation (T_VJ(op) = 200 °C for 100 h)
Available in two Signal Pin Length (18.5 mmm and 19 mm) Variants

Benefits

Ultra-Low Loss
High Performance in a Small Footprint
Design Flexibility
Enables high Reliability Interconnects

Typical Applications

Automotive Traction Inverters
Hybrid Electric Vehicles
E-Mobility and Motor Drives
Electric Aircraft and eVTOL
