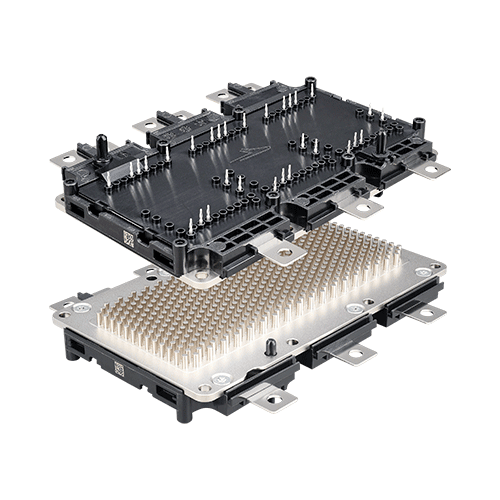

Wolfspeed's YM six-pack power module streamlines Silicon Carbide integration into commercial, construction, and agricultural vehicle traction systems with its industry-standard footprint and advanced design. The YM features an optimized power terminal layout that minimizes package inductance enabling reduced overshoot voltage and ultra-low switching loss. This package boasts industry-leading durability through hard epoxy encapsulation, sintered die attach, a copper top-side clip, and welded terminals. A direct-cooled pin-fin baseplate enhances thermal performance, while press-fit pins simplify assembly. Available in various current ratings up to 1200 V / 650 A, the YM meets the AQG 324 automotive power module standard.
Product SKU | Buy Online | Request Sample | Data Sheet | CAD Model | Status | Package | Configuration | Blocking Voltage | Current Rating | RDS(ON) at 25°C | Tjmin | Tjmax | Module Size | Generation | Qualification | View Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | YM | Six-pack (three-phase) | 1200 V | 600 A | 2.1 mΩ | -40 °C | 175 °C | 154.5 x 126.5 x 32 mm | Gen 3 | Automotive | ||||||
Active | YM | Six-pack (three-phase) | 1200 V | 600 A | 2.1 mΩ | -40 °C | 175 °C | 154.5 x 126.5 x 32 mm | Gen 3 | Automotive | ||||||
Active | YM | Six-pack (three-phase) | 1200 V | 460 A | 2.8 mΩ | -40 °C | 175 °C | 154.5 x 126.5 x 32 mm | Gen 3 | Automotive | ||||||
Active | YM | Six-pack (three-phase) | 1200 V | 460 A | 2.8 mΩ | -40 °C | 175 °C | 154.5 x 126.5 x 32 mm | Gen 3 | Automotive | ||||||
Active | YM | Six-pack (three-phase) | 1200 V | 330 A | 4.3 mΩ | -40 °C | 175 °C | 154.5 x 126.5 x 32 mm | Gen 3 | Automotive | ||||||
Active | YM | Six-pack (three-phase) | 1200 V | 330 A | 4.3 mΩ | -40 °C | 175 °C | 154.5 x 126.5 x 32 mm | Gen 3 | Automotive |
