KIT CRD 8FF90P

Evaluation Board for 900V SiC C3M™ MOSFET in a 7-pin D2PAK (TO-263-7L)

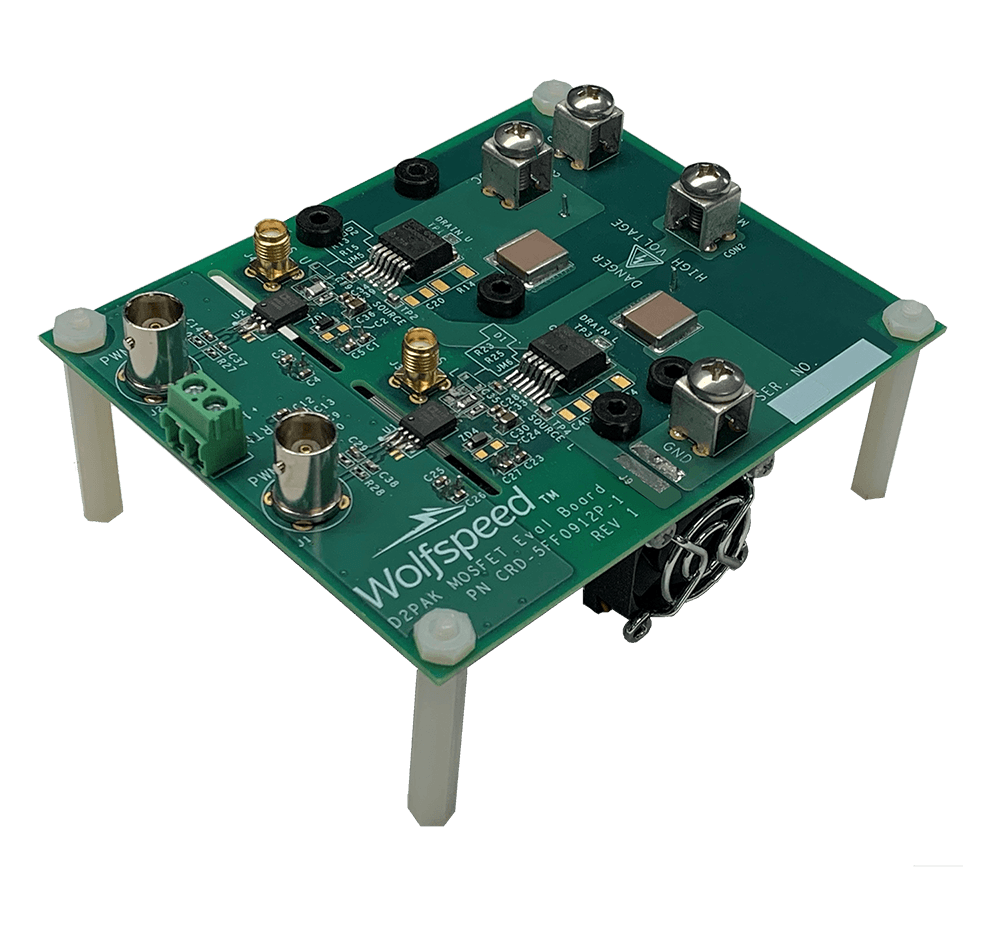

Wolfspeed KIT-CRD-8FF90P
KIT-CRD-8FF90P
Request Sample

This evaluation board demonstrates the switching and thermal performance of 900V SiC C3M™ MOSFET in a 7-pin D2PAK (TO-263-7L) configured in a half bridge topology. The board is designed for characterizing EON and EOFF losses and steady state thermal performance in SiC MOSFETs. The PCB contains AlN inserts under the MOSFETs to provide electrical isolation and optimized heat transfer to the heat sink.

This design :

  • Demonstrates use of an AlN inlay PCB for thermal management of surface mount power devices
  • Serves as a PCB layout example for driving D2PAK SiC MOSFETs

Specifications

  • Max DC Bus Voltage of 650V
  • Max Power of 4.2kW @ 100kHz
  • Optimized locations for scope probe measurements of drain current; VGS; and Vds
  • Predrilled thermocouple locations in the heat sink under the MOSFET
  • Synchronous and asynchronous buck and boost topologies supported
  • Kit includes two SMA and BNC adapters for measuring VGS waveforms
  • Includes heatsink; fan; fan guard; and thermal pads
  • Can be configured as full bridge DC/DC by using two evaluation boards
Applications
  • Industrial Power Supplies
  • Server/Telecom
  • EV-Charging Systems
  • Energy Storage Systems (ESS)
  • Uninterruptible Power Supplies (UPS)
What's Included
  • Fully Assembled Evaluation Board
  • Schematics
  • PCB Design File
  • Bill of Materials
  • Application Note
Request Separately
  • Low Inductance Current Monitor
  • Mechanical Specifications

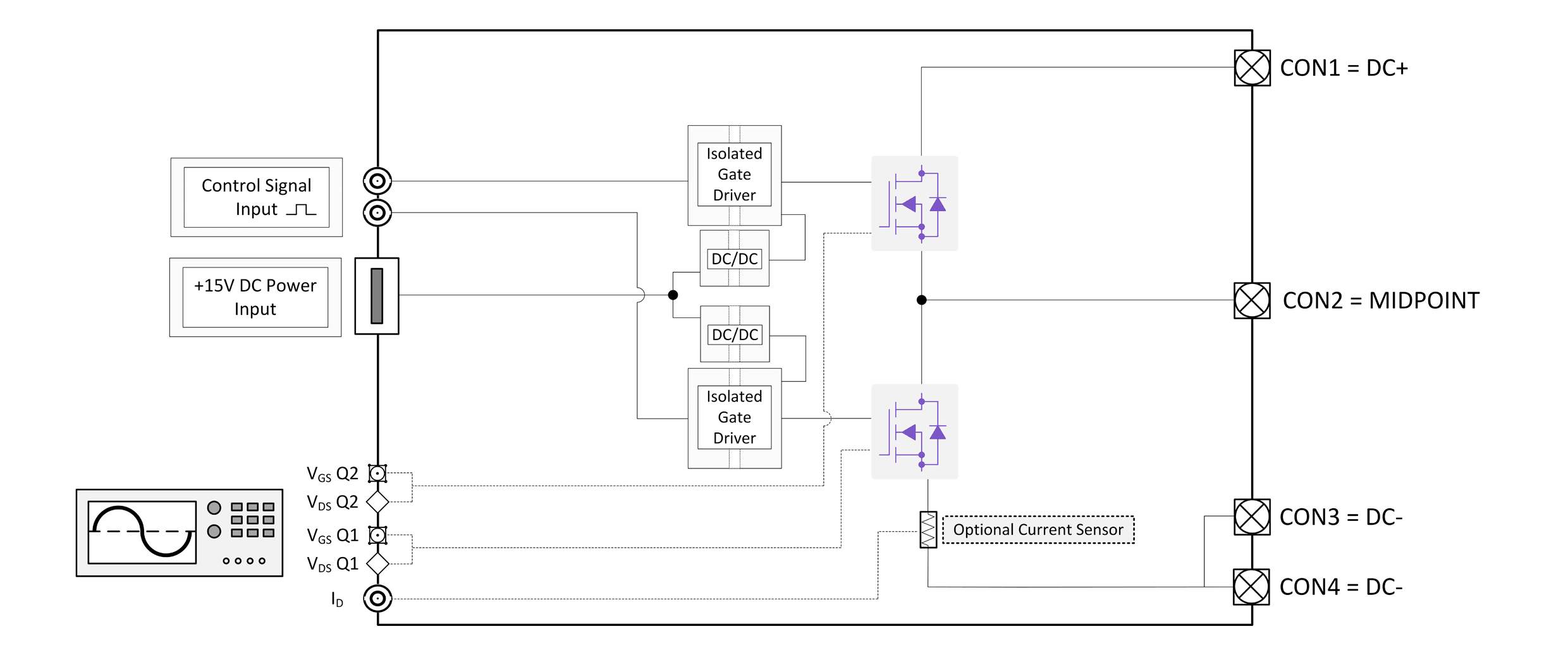

kit_crd-8ff90p_block_diagram
ADuM4121 Gate Driver

High Voltage, Isolated Gate Driver with Internal Miller Clamp, 2 A Output with Thermal Shutdown. The integrated miller clamp activates on the falling edge of an edge transition to further clamp the output low to counteract miller turn on effects.

View on Analog Devices
ADuM4121 Gate Driver

High Voltage, Isolated Gate Driver with Internal Miller Clamp, 2 A Output with Thermal Shutdown. The integrated miller clamp activates on the falling edge of an edge transition to further clamp the output low to counteract miller turn on effects.

View on Analog Devices
c3m0060065j_block
C3M0065090J

900V Silicon Carbide C3M™ MOSFET in 7-pin D2PAK provides low parasitic inductances for faster switching in power conversion applications

View Product
c3m0060065j_block
C3M0065090J

900V Silicon Carbide C3M™ MOSFET in 7-pin D2PAK provides low parasitic inductances for faster switching in power conversion applications

View Product
