Features
- Automotive Qualified
- High blocking voltage with industry leading low RDS(on) over temperature stability
- Resistant to latch-up
- High gate resistance for drives
1200 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 3+
EPM3-1200-R015D
1200 V, 15 mΩ, 148 A, Gen3+ Bare Die SiC MOSFET

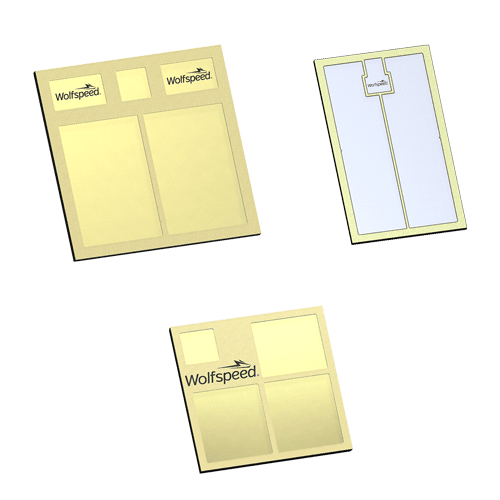

Wolfspeed’s Generation 3+ of high performance silicon carbide MOSFET in a packageless bare die format to be implemented into any custom module design.
Products
1200 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 3+
No filters selected, showing all 1 products
1200 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 3+
Product SKU | Buy Online | Data Sheet | Blocking Voltage | RDS(ON) at 25°C | Current Rating | Output Capacitance | Reverse Recovery Charge (Qrr) | Reverse Recovery Time (Trr) | Maximum Junction Temperature | Generation | Recommended For New Design? |
|---|---|---|---|---|---|---|---|---|---|---|---|
EPM3-1200-R015D New | 1200 V | 15 mΩ | 148 A | 200 pF | 1388 nC | 34 ns | 175 °C | Gen 3+ | Yes |
Product Details
Benefits
- Improves System Efficiency with lower switching and conduction losses
- Reduces System Size, Weight, and Cooling Requirements
- Enables high switching frequency operation
- Easy to parallel and compatible with standard gate drive design
Application
- Automotive Drivetrain
- Motor Drives
- Solid State Circuit Breaker
- Resonant Topologies
