1200 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 4

Wolfspeed's family of Automotive Qualified 1200 V, Gen 4 SiC Bare Die MOSFETs

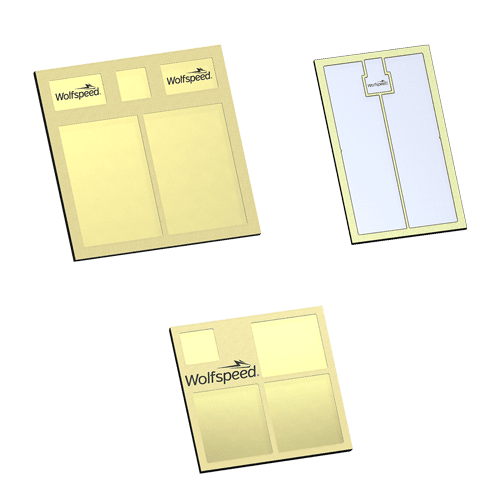

This is Wolfspeed’s 4th generation of high-performance silicon carbide MOSFET in a package less bare die format to be implemented into any custom module design. The high blocking voltage with low on-resistance, high-speed switching with low capacitance makes this MOSFET ideal for applications in automotive drivetrain and motor drives.

  • Overview
  • Parametric Data
  • Product Details
  • Tools & Support
  • Overview
  • Parametric Data
  • Product Details
  • Tools & Support

Parametric Data

No filters selected, showing all 4 products
Product SKU
Buy Online
Data Sheet
Status
Blocking Voltage
RDS(ON) at 25°C
Current Rating
Gate Charge Total
Output Capacitance
Reverse Recovery Charge (Qrr)
Reverse Recovery Time (Trr)
Tjmax
Generation
Qualification
EM4E120-032D10​
Active
1200 V
9.6 mΩ
202 A
317 nC
259 pF
2184 nC
45 ns
185 °C
Gen 4
Automotive
EM4E120-028D00
Active
1200 V
11.6 mΩ
166 A
260 nC
220 pF
700 nC
31 ns
185 °C
Gen 4
Automotive
EM4E120-025D10
New
Active
1200 V
12.5 mΩ
159 A
242 nC
206 pF
1180 nC
40 ns
185 °C
Gen 4
Automotive
EM4E120-025D00
New
Active
1200 V
13 mΩ
149 A
234 nC
210 pF
1133 nC
33 ns
185 °C
Gen 4
Automotive

Product Details

Features

  • Automotive Qualified
  • High blocking voltage with industry leading low RDS(on) over temperature stability
  • Resistant to latch-up
  • High gate resistance for drives
  • High capacitance ratio

Benefits

  • Improves System Efficiency with lower switching and conduction losses
  • Reduces System Size, Weight, and Cooling Requirements
  • Enables high switching frequency operation
  • Easy to parallel and compatible with standard gate drive design

Typical Applications

  • Automotive Drivetrain
  • Motor Drives
  • Solid State Circuit Breaker
  • Resonant Topologies

Tools & Support

  • Technical & Sales Documents
  • Tools & Support
  • Compliance

Documents

12 Documents Available
Document Type
Document Name
Last Updated
Application Notes
PRD-09129: Mitigating Package Induced Failures (PDF)
05/2025
Application Notes
PRD-04814: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies (PDF)
01/2025
Application Notes
PRD-08937: Impact of VGS on SiC MOSFET Characteristics (PDF)
11/2024
Application Notes
PRD-07969: Sintering Considerations and the Die Top System (PDF)
04/2024
Application Notes
PRD-08296: SiC MOSFET Short Circuit Events (PDF)
11/2023
Application Notes
PRD-06933: Capacitance Ratio and Parasitic Turn-on (PDF)
01/2023
White Papers
Designed to Last, Even in the Harshest Environments (PDF)
New
11/2025
White Papers
Enhancing System Durability with Advanced Packaging for Silicon Carbide (PDF)
11/2025
White Papers
SiC Power Module Reliability: Wolfspeed’s Power Cycling and Lifetime Modeling Approach (PDF)
New
11/2025
Product Catalog
Power Product Line Card (PDF)
01/2025
Sales Sheets & Flyers
Wolfspeed Silicon Carbide Solutions for EV Inverters (PDF)
03/2022
Sales Terms
Wolfspeed, Inc. Sales Terms and Conditions (PDF)
04/2025
