Wolfspeed's Gen 5 SiC MOSFETs are engineered for real-world performance — not just ideal conditions. Built on optimized planar MOSFET design, Gen 5 achieves better RDS(ON) through tightened epitaxy, increased active area, and enhanced soft body diode technology. The result: lower losses, higher reliability, and greater design confidence for automotive and industrial applications.

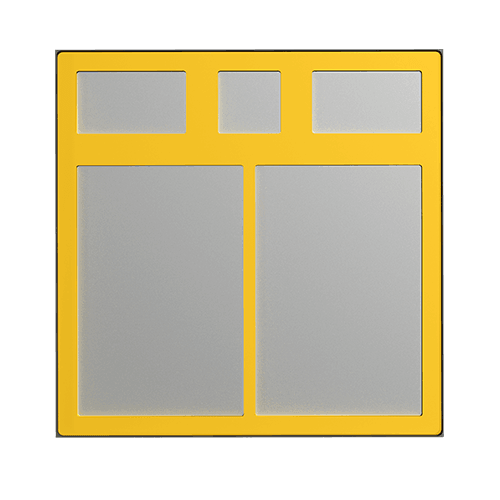

EM50120-025D10
1200 V, 7.6 mΩ, Gen 5, Automotive qualified, Bare Die Silicon Carbide (SiC) MOSFET
Parametric Data
No filters selected, showing all 1 products
Product SKU | Request Sample | Data Sheet | Status | Blocking Voltage | RDS(ON) at 25°C | Current Rating | Output Capacitance | Reverse Recovery Charge (Qrr) | Reverse Recovery Time (Trr) | Tjmin | Tjmax | Generation | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EM50120-025D10 New | Active | 1200 V | 7.6 mΩ | 200 A | 212 pF | 943 nC | 24 ns | -40 °C | 200 °C | Gen 5 | Automotive |
