Features
- Low RDS(on)
- Avalanche Ruggedness
- Easy to Parallel and Simple to Drive
- Temperature-Independent High-Speed Switching
3300 V Bare Die Silicon Carbide MOSFETs
Wolfspeed's 3300 V bare die silicon carbide MOSFETs offer high reliability and ruggedness for high power applications.
The MOSFETs enable greater system efficiency and smaller, more power dense systems optimized for use in heavy duty equipment, industrial uninterruptible power supply (UPS) systems, industrial motor drives, and more.
Products
3300 V Bare Die Silicon Carbide MOSFETs
No filters selected, showing all 1 products
3300 V Bare Die Silicon Carbide MOSFETs
Product SKU | Buy Online | Request Sample | Data Sheet | Blocking Voltage | RDS(ON) at 25°C | Current Rating | Gate Charge Total | Output Capacitance | Reverse Recovery Charge (Qrr) | Reverse Recovery Time (Trr) | Maximum Junction Temperature | Generation | Recommended For New Design? |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

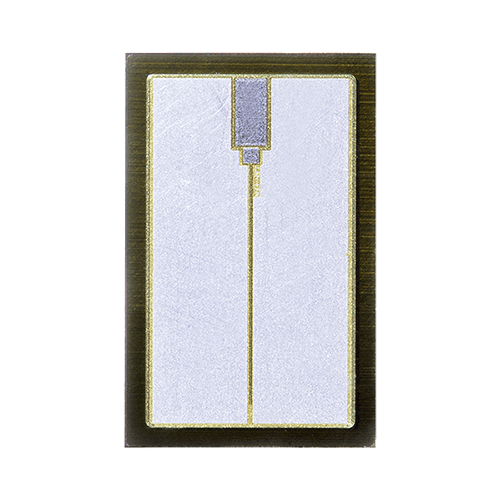

CPM3-3300-R050A | 3300 V | 53 mΩ | 52 A | 255 nC | 140 pF | 2.5 nC | 124 ns | 175 °C | Gen 3 MOS | Yes |
Product Details
Benefits
- Increased switching speed and efficiency compared to Si IGBTs
- Intrinsic body diode reduces BOM components
- High temperature operation, -55º C to 175º C
- Enhanced reliability
Applications
- Heavy-duty industrial e-mobility (transportation, construction, agricultural, mining, and logging vehicles)
- Ultra-fast DC chargers
- Industrial motor drives
- Industrial uninterruptible power supply (UPS) systems
- Marine & aerospace propulsion
- Terrestrial power distribution systems
- High voltage direct current (HVDC) and flexible AC transmission system (FACTS) controllers
