Features
- Automotive Qualified (AEC-Q101) and PPAP capable
- Top side cooling (TSC) for improved thermal performance
- Surface mount package for automated assembly
- Kelvin source pin for fast gate control
E3M0160120U2

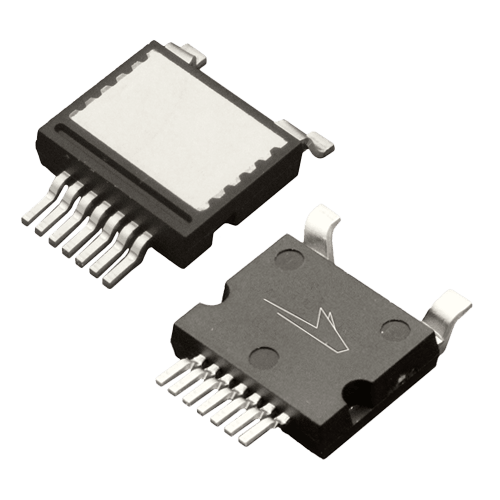

1200 V, 160 mΩ, TSC (U2) package, Automotive qualified, Discrete Silicon Carbide (SiC) MOSFET
Note Coming Soon.
Parametric Data
E-Series Automotive-Qualified Silicon Carbide MOSFETs
No filters selected, showing all 1 products
E-Series Automotive-Qualified Silicon Carbide MOSFETs
Product SKU | Data Sheet | Status | Blocking Voltage | RDS(ON) at 25°C | Current Rating | Tjmax | Package | Qualification | Technology |
|---|---|---|---|---|---|---|---|---|---|
E3M0160120U2 Coming Soon | Coming Soon | 1200 V | 160 mΩ | 18 A | 175 °C | TSC (U2) | Automotive | E3M |
End of Section
Ordering & Compliance
E3M0160120U2 Ordering
| Part Number | E3M0160120U2 Coming Soon |
|---|---|
| Order Status | Coming Soon |
| Package | TSC (U2) |
E3M0160120U2 Compliance
| California Prop 65 | Learn More |
|---|---|
| ECCN | EAR99 |
| Moisture Sensitivity Level | MSL 1 |
Related Documents
E3M0160120U2 Related Documents
| Soldering & Handling | |
|---|---|
| Packing & Shipping |
Product Details
Benefits
- High power density
- Low assembly cost compared to through-hole devices
- Rugged body diode
Typical Applications
- OBC & DC/DC converters
- Fuel cell DC/DC converters
- Fuel cell inverters
- Onboard HVAC / Battery Thermal Management
- Powertrain inverters
- Auxiliary power supplies
