E Series Discrete SiC MOSFETs

E-Series Discrete SiC MOSFETs

E-Series Automotive Silicon Carbide MOSFET 3rd Generation Technology
Industry's first automotive-qualified silicon carbide MOSFETs
SpeedFit Design SimulatorLTspice & PLECS Models

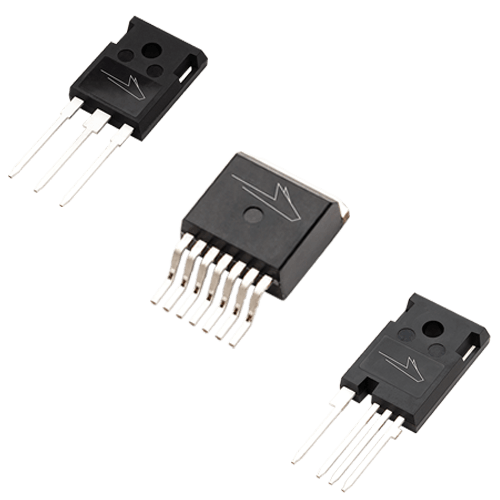

Wolfspeed extends its leadership in Silicon Carbide by introducing the E-Series line of SiC MOSFETs; the industry’s first automotive qualified; PPAP capable and humidity resistant MOSFET available in the industry. It features Wolfspeed’s 3rd generation rugged technology; offering the industry’s lowest switching losses and highest figure of merit. The E-Series MOSFET is optimized for use in EV battery chargers and high voltage DC/DC converters and is featured in Wolfspeed’s 6.6kW Bi-Directional On-Board Charger reference design; which can be found here.

Product SKU
Buy Online
Request Sample
Data Sheet
Blocking Voltage
RDS(ON) at 25°C
Generation
Current Rating
Gate Charge Total
Output Capacitance
Total Power Dissipation (PTOT)
Maximum Junction Temperature
Package
Recommended For New Design?
Qualification
E3M0120090J
900 V
120 mΩ
Gen 3
22 A
18 nC
48 pF
83 W
150 °C
TO-263-7
Yes
Automotive
E3M0075120D
New
1200 V
75 mΩ
Gen 3
32 A
57 nC
58 pF
145 W
175 °C
TO-247-3
Yes
Automotive
E3M0075120K
New
1200 V
75 mΩ
Gen 3
32 A
55 nC
58 pF
145 W
175 °C
TO-247-4
Yes
Automotive
Product SKU
Buy Online
Request Sample
Data Sheet
Blocking Voltage
RDS(ON) at 25°C
Generation
Current Rating
Gate Charge Total
Output Capacitance
Total Power Dissipation (PTOT)
Maximum Junction Temperature
Package
Recommended For New Design?
Qualification
E3M0120090J
900 V
120 mΩ
Gen 3
22 A
18 nC
48 pF
83 W
150 °C
TO-263-7
Yes
Automotive
E3M0075120D
New
1200 V
75 mΩ
Gen 3
32 A
57 nC
58 pF
145 W
175 °C
TO-247-3
Yes
Automotive
E3M0075120K
New
1200 V
75 mΩ
Gen 3
32 A
55 nC
58 pF
145 W
175 °C
TO-247-4
Yes
Automotive
Features
  • Automotive Qualified (AEC-Q101) and PPAP capable
  • High breakdown voltage across entire operating temperature range
  • High-speed switching with low output capacitance
  • High blocking voltage with low RDS(on)
  • Fast intrinsic diode with low reverse recovery (Qrr)
Benefits
    • High-voltage; high-temperature; and high-humidity resistance enables true outdoor application for solar power conversion and off-board charging
    • Easy to parallel and simple to drive
    • Significant system size reduction
    • Mitigates range anxiety and facilitates faster charging



Applications
  • Drivetrain traction inverters
  • Onboard EV battery chargers
  • PV inverters
  • High voltage DC/DC converters
Apply Filters
Document Type
Document Name
Version
Application Notes
Version: -
Application Notes
Version: D
Application Notes
[Design only; boards no longer available]
Version: 1.0
Data Sheets
Version: a
Data Sheets
Version: 1.0
Data Sheets
Version: 1.0
Data Sheets
Version: 1.0
Data Sheets
Version: 1.0
Product Ecology
E3M0065090D – E3M0075120D – E3M0120090D – E3M0280090D
Version: 1.0
Product Ecology
E3M0065090D – E3M0120090D – E3M0280090D
Version: 1.0
Product Ecology
E3M0075120K
Product Ecology
E3M0120090J
Version: 1.0
Sales Sheets & Flyers
Version: f
Sales Terms
Version: M
Document Type
Document Name
Version
Application Notes
Version: -
Application Notes
Version: D
Application Notes
[Design only; boards no longer available]
Version: 1.0
Data Sheets
Version: a
Data Sheets
Version: 1.0
Data Sheets
Version: 1.0
Data Sheets
Version: 1.0
Data Sheets
Version: 1.0
Product Ecology
E3M0065090D – E3M0075120D – E3M0120090D – E3M0280090D
Version: 1.0
Product Ecology
E3M0065090D – E3M0120090D – E3M0280090D
Version: 1.0
Product Ecology
E3M0075120K
Product Ecology
E3M0120090J
Version: 1.0
Sales Sheets & Flyers
Version: f
Sales Terms
Version: M
