Features
- Low RDS(ON)
- AlSiC baseplate
- High thermal conductivity AMB SiN substrates (90 W/m·K at 25 C)
- Exemplary thermal-mechanical cycling performance
- Low stray Inductance (10 nH)

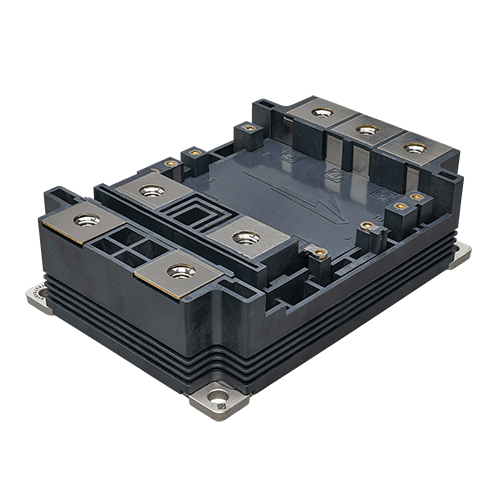

3300 V LM Silicon Carbide Half-Bridge Power Modules
Wolfspeed's 3300 V silicon carbide half-bridge power modules enable high efficiency and reliability for high power applications
Wolfspeed has developed the LM power module platform to provide the benefits of silicon carbide in applications that require increased power density, high reliability, faster switching and long lifetime. The LM module enables 175°C continuous junction temperature operation with high thermal conductivity Silicon Nitride (Si3N4) substrate to ensure mechanical robustness under extreme conditions and a lightweight AlSiC baseplate. The 3300 V power modules are a perfect fit for demanding applications such as heavy equipment, solid state circuit breakers, industrial UPSs and motor drives, and more.
The 3300 V modules are designed for low RDS(ON), are easy to parallel and compatible with standard gate driver design. At a system level, moving from a silicon to a silicon carbide module solution can help enable smaller, lighter, and more cost-effective designs.
Featured Resources
Design Tools
Technical Support
Featured Documents
Products
3300 V LM Silicon Carbide Half-Bridge Power Modules
No filters selected, showing all 1 products
3300 V LM Silicon Carbide Half-Bridge Power Modules
Product SKU | Data Sheet | Package | Configuration | Blocking Voltage | Current Rating | RDS(ON) at 25°C | Generation | Maximum Junction Temperature | Module Size | Recommended For New Design? | Qualification | View Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
CAB600M33LM3 | LM | Half-Bridge | 3300 V | 770 A | 2.7 mΩ | Gen 3 | 175 °C | 100 x 144 x 40 mm | Yes | Industrial |
Product Details
Benefits
- Faster switching speeds and higher efficiencies than Si IGBTs
- Lower system-level volume, weight, and cost
- Candidate for reduced or no cooling requirements
- Wide operating temperature range, -55º C to 175º C
Applications
- Heavy Duty Industrial E-Mobility: Transportation, Construction, Agricultural, Mining, Logging
- Ultra-Fast DC Chargers
- Industrial Motor Drives
- Industrial Uninterruptible Power Supply (UPS) Systems
- Marine and Aerospace Propulsion
- Terrestrial Power Distribution Systems
- High Voltage Direct Current (HVDC) and Flexible AC Transmission System (FACTS) Controllers
Documents, Tools & Support
- Technical & Sales Documents
- Tools & Support
Documents
Document Type | Document Name | Last Updated |
|---|---|---|
| Application Notes | 01/2023 | |
| Application Notes | 08/2023 | |
| Application Notes | 03/2024 | |
| Application Notes | 11/2023 | |
| Application Notes | 01/2024 | |
| Product Catalog | 02/2024 | |
| Sales Sheets & Flyers | 03/2024 | |
| Sales Terms | This document details the production packaging details including container type, quantity, MOQ, and dimensions as well as the moisture sensitivity level (MSL) for discrete SiC Schottky Diodes and MOSFETs
| 02/2024 |
| Sales Terms | 12/2021 |
