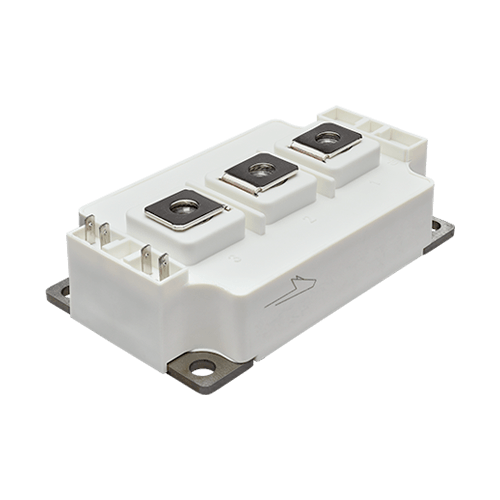

62 mm BM2 Silicon Carbide Half-Bridge Power Modules

BM2 Half-Bridge Module for Switching and Conduction Optimized Applications

NOTE: Not recommended for new designs. 62 mm BM3 Silicon Carbide Half-Bridge Power Modules is the recommended replacement.

Wolfspeed’s 62mm power module platform provides the system benefits of Silicon Carbide (SiC); while maintaining the robust; industry-standard 62 mm module package. The internal design of Wolfspeed’s 62mm BM package enables high speed Silicon Carbide switching benefits; due to the low-inductance layout. The BM platform is a perfect fit for applications in the industrial test equipment; rail / traction; and EV charging infrastructure markets.

Featured Resources

Products

62 mm BM2 Silicon Carbide Half-Bridge Power Modules

No filters selected, showing all 3 products

62 mm BM2 Silicon Carbide Half-Bridge Power Modules - Filter By

62 mm BM2 Silicon Carbide Half-Bridge Power Modules

Product SKU	Package	Configuration	Blocking Voltage	Current Rating	R_DS(ON) at 25°C	Generation	Maximum Junction Temperature	Module Size	Recommended For New Design?	Qualification
CAS120M12BM2	62mm	Half-Bridge	1200 V	120 A	13 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial
CAS300M17BM2	62mm	Half-Bridge	1700 V	225 A	8 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial
CAS300M12BM2	62mm	Half-Bridge	1200 V	300 A	4.2 mΩ	Gen 2 MOS + Diodes	150 °C	106 x 62 x 30 mm	No	Industrial

Product Details

Features

Industry-Leading; Reliable Silicon Carbide MOSFET Technology in Robust; Well-Established 62mm Form Factor
Strong Thermal Performance + Material Selections Optimized for Industrial & Harsh Environment Applications
Low-Inductance Design (10 – 15 nH) for Fast Switching with Low Power Losses
MOSFET Die and Selected Modules Qualified to HV-H3TRB

Benefits

Broad Portfolio of Current and Voltage Ratings Available to Fit Diverse Industrial Application Requirements
Fast Time to Market with Minimal Development Required for Transition from 62 mm IGBT Packages
Reduced Cooling Requirements & Overall System Cost
Optimized Internal Layout for Low Power Losses & Minimal Overshoot for Maximum Voltage Utilization

Applications

Railway & Traction
EV Charging Infrastructure
Industrial Automation & Testing
High Frequency Power Supplies
Renewable Energy Systems & Grid-Tied Inverters
Active Front Ends & AC Inverters
