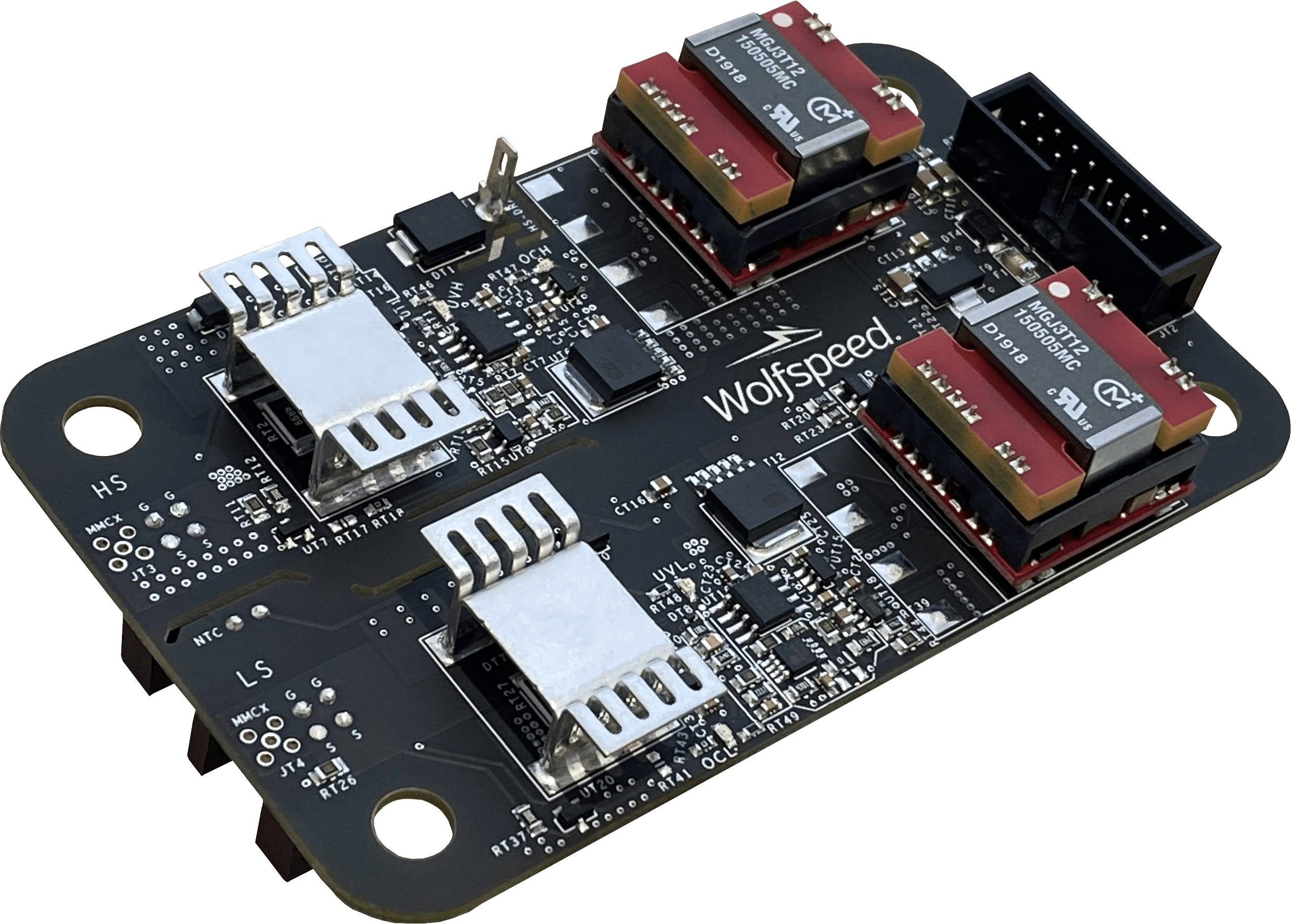

Evaluation Gate Driver Tool Optimized for the CGD1700HB3P-HM3
CGD1700HB3P-HM3
Wolfspeed’s CGD1700HB2P-HM3 is a form-factor-fitting; two-channel gate driver for the Gen3 high performance 62 mm power module platform (HM3). Each of the two gate drive channels is protected against over-current and reverse polarity. On-Board 3 W isolated power supplies supporting 90 kHz switching frequency.
Documents, Tools, & Support
- Technical & Sales Documents
- Tools & Support
Documents
Document Type | Document Name | Last Updated |
|---|---|---|
| Data Sheets | 01/2024 | |
| User Guide | 01/2024 | |
| Design Files | 06/2020 | |
| Application Notes | 08/2023 | |
| Application Notes | 01/2023 | |
| Sales Sheets & Flyers | 01/2024 |
