Benefits
- Enables 2 level operation with 1500 VDC link
- System scalability and reliability
- Reduced system complexity
- Ease of layout and assembly

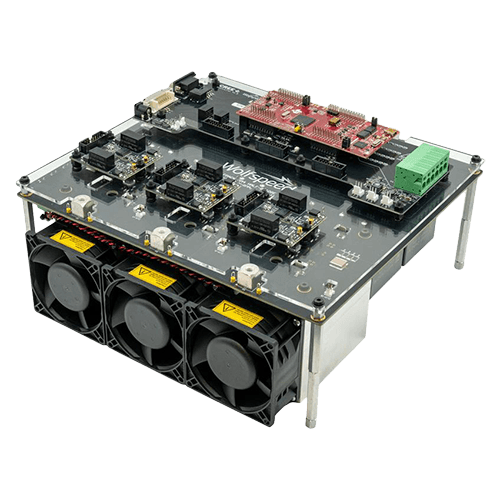

2300 V Three-Phase Inverter
CRD200DA23N-GMA
The 2300 V three-phase inverter reference design demonstrates the design simplicity and scalability of Wolfspeed’s new 2300 V baseplate-less SiC power modules. The simple two-level design provides a starting point for system designers looking to take advantage of 1500 V DC bus architectures– providing a practical application example of PCB creepage/clearance distances together with optimal snubber implementation in a 200 kW building block. Based on Wolfspeed’s Gen 4 MOSFET technology, this reference design is suitable for renewable energy, energy storage, and high-capacity fast-charging sectors where improved system efficiency, durability, reliability, and scalability are paramount.
Applications
- Energy Storage Systems
- Solar
- Renewable Energy
- Fast Charging
- Uninterruptible Power Supplies
- Test & Measurement Equipment
What's Included
- Schematics
- PCB Layout
- BOM
Product Compatibility
Documents, Tools, & Support

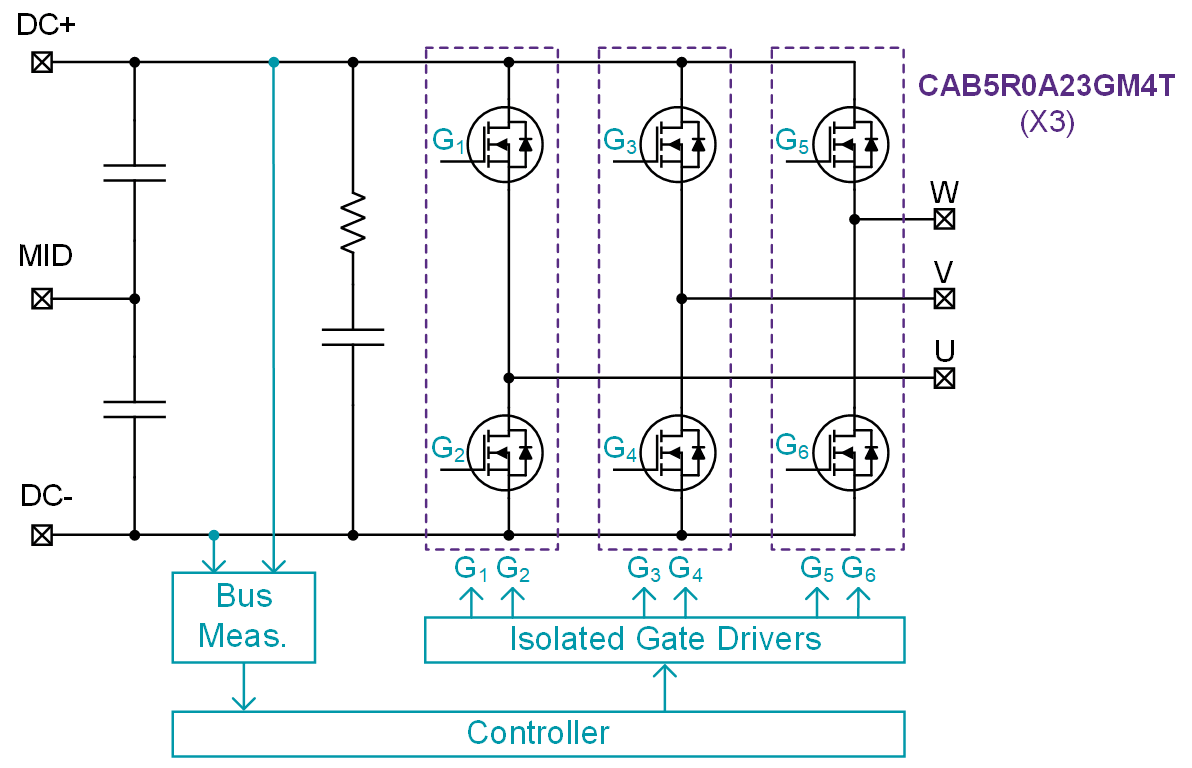

- Block Diagram
- Technical & Sales Documents
- Tools & Support
CAB5R0A23GM4T
2300 V, 5 mΩ, GM package, Half-Bridge (AlN substrate) SiC Power Module with Pre-Applied Thermal Interface Material (TIM)
CAB5R0A23GM4T
2300 V, 5 mΩ, GM package, Half-Bridge (AlN substrate) SiC Power Module with Pre-Applied Thermal Interface Material (TIM)
CAB5R0A23GM4T
2300 V, 5 mΩ, GM package, Half-Bridge (AlN substrate) SiC Power Module with Pre-Applied Thermal Interface Material (TIM)
