Features
- Low forward voltage (Vf) drop over temperature
- Zero reverse-recovery charge for fast switching operations
- Robust MPS technology
- High reverse-voltage blocking capability
600 V Discrete Silicon Carbide Schottky Diodes
C3D04060F

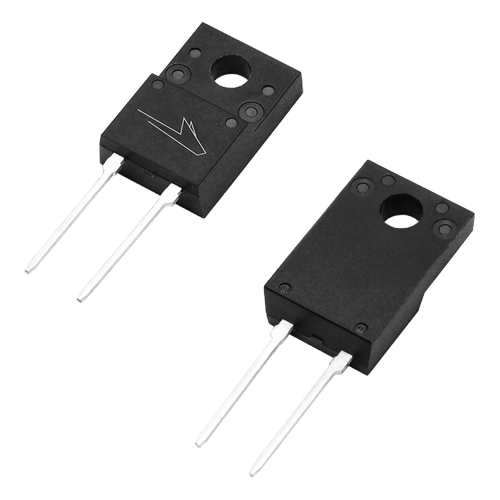

600 V, 4 A, TO-220-F2 package, Gen 3 Discrete SiC Schottky Diode
Wolfspeed's 600 V Discrete Silicon Carbide (SiC) Schottky Diodes feature the MPS (Merged PiN Schottky) design which is more robust and reliable than standard Schottky barrier diodes. Pairing Wolfspeed Silicon Carbide diodes with SiC MOSFETs creates a powerful combination of higher efficiency and reduced component pricing when purchased together.
Featured Resources
Design Tools
Technical Support
Products
600 V Discrete Silicon Carbide Schottky Diodes
No filters selected, showing all 1 products
600 V Discrete Silicon Carbide Schottky Diodes
Product SKU | Buy Online | Request Sample | Data Sheet | CAD Model | Blocking Voltage | Current Rating | Generation | Forward Voltage(VF(type)) | Maximum Continuous Current (IF) | Total Capacitive Charge (QC (typ)) | Total Power Dissipation (PTOT) | Package | Qualification | Recommended For New Design? |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C3D04060F | 600 V | 4 A | Gen 3 | 1.5 V | 4 A | 8.5 nC | 13.1 W | TO-220-F2 | Industrial | Yes |
Product Details
Benefits
- Improves System Efficiency with lower conduction losses
- Enables high switching frequency operation
- Improves System Level Power Density
- Reduces System Size; Weight; and Cooling Requirements
Applications
- Industrial Power Supplies
- Server/Telecom
- EV-Charging Systems
- Energy Storage Systems (ESS)
- Uninterruptible Power Supplies (UPS)
- Battery Management Systems (BMS)
