600V Discrete SiC Schottky Diodes

600V Discrete SiC Schottky Diodes

650V_Discrete_SiC Schottky_Diodes_sm
Wolfspeed 600V Discrete SiC Schottky Diodes
SpeedFit Design SimulatorLTspice & PLECS Models

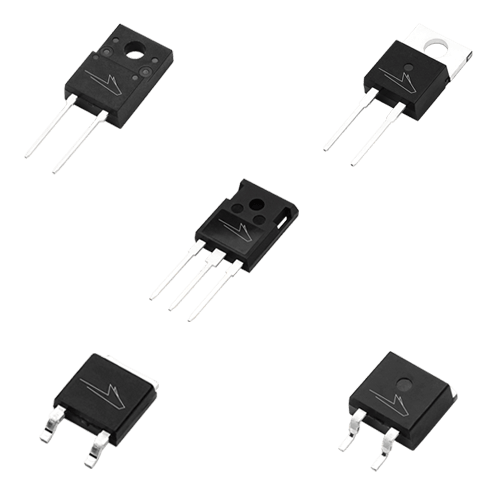

Wolfspeed’s 600V Discrete silicon carbide Schottky Diodes feature the MPS (Merged PiN Schottky) design which is more robust and reliable than standard Schottky barrier diodes. Pairing Wolfspeed SiC diodes with SiC MOSFETs creates a powerful combination of higher efficiency and reduced component pricing when purchased together.

Apply Filters
Product SKU
Buy Online
Request Sample
Data Sheet
Blocking Voltage
Current Rating
Generation
Forward Voltage(VF (type))
Maximum Continuous Current (IF)
Total Capacitive Charge (QC (typ))
Total Power Dissipation (PTOT)
Package
Qualification
Recommended For New Design?
CSD01060E
600 V
1 A
Gen 3
1.6 V
1 A
3.3 nC
21.4 W
TO-252-2
Industrial
Yes
CSD01060A
600 V
1 A
Gen 3
1.6 V
1 A
3.3 nC
21.4 W
TO-220-2
Industrial
Yes
C3D02060E
600 V
2 A
Gen 3
1.5 V
2 A
4.8 nC
39.5 W
TO-252-2
Industrial
Yes
C3D02060F
600 V
2 A
Gen 3
1.5 V
2 A
4.8 nC
10.8 W
TO-220-F2
Industrial
Yes
C3D02060A
600 V
2 A
Gen 3
1.5 V
2 A
4.8 nC
39.5 W
TO-220-2
Industrial
Yes
C3D03060E
600 V
3 A
Gen 3
1.5 V
3 A
6.7 nC
53 W
TO-252-2
Industrial
Yes
C3D03060F
600 V
3 A
Gen 3
1.5 V
3 A
6.7 nC
12.5 W
TO-220-F2
Industrial
Yes
C3D03060A
600 V
3 A
Gen 3
1.5 V
3 A
6.7 nC
53 W
TO-220-2
Industrial
Yes
C3D04060E
600 V
4 A
Gen 3
1.5 V
4 A
8.5 nC
75 W
TO-252-2
Industrial
Yes
C3D04060F
600 V
4 A
Gen 3
1.5 V
4 A
8.5 nC
13.1 W
TO-220-F2
Industrial
Yes
C3D04060A
600 V
4 A
Gen 3
1.5 V
4 A
8.5 nC
75 W
TO-220-2
Industrial
Yes
C3D06060G
600 V
6 A
Gen 3
1.5 V
6 A
16 nC
91 W
TO-263-2
Industrial
Yes
C3D06060F
600 V
6 A
Gen 3
1.5 V
6 A
16 nC
17 W
TO-220-F2
Industrial
Yes
C3D06060A
600 V
6 A
Gen 3
1.5 V
6 A
16 nC
79 W
TO-220-2
Industrial
Yes
C3D08060G
600 V
8 A
Gen 3
1.5 V
8 A
21 nC per leg
107 W
TO-263-2
Industrial
Yes
C3D08060A
600 V
8 A
Gen 3
1.5 V
8 A
21 nC
110 W
TO-220-2
Industrial
Yes
C3D10060G
600 V
10 A
Gen 3
1.5 V
10 A
25 nC per leg
136 W
TO-263-2
Industrial
Yes
C3D10060A
600 V
10 A
Gen 3
1.5 V
10 A
25 nC
136 W
TO-220-2
Industrial
Yes
C3D16060D
600 V
16 A
Gen 3
1.5 V per leg
16 A
21 nC per leg
200 W
TO-247-3
Industrial
Yes
C3D20060D
600 V
20 A
Gen 3
1.5 per leg
20 A
25 nC per leg
500 W
TO-247-3
Industrial
Yes
Product SKU
Buy Online
Request Sample
Data Sheet
Blocking Voltage
Current Rating
Generation
Forward Voltage(VF (type))
Maximum Continuous Current (IF)
Total Capacitive Charge (QC (typ))
Total Power Dissipation (PTOT)
Package
Qualification
Recommended For New Design?
CSD01060E
600 V
1 A
Gen 3
1.6 V
1 A
3.3 nC
21.4 W
TO-252-2
Industrial
Yes
CSD01060A
600 V
1 A
Gen 3
1.6 V
1 A
3.3 nC
21.4 W
TO-220-2
Industrial
Yes
C3D02060E
600 V
2 A
Gen 3
1.5 V
2 A
4.8 nC
39.5 W
TO-252-2
Industrial
Yes
C3D02060F
600 V
2 A
Gen 3
1.5 V
2 A
4.8 nC
10.8 W
TO-220-F2
Industrial
Yes
C3D02060A
600 V
2 A
Gen 3
1.5 V
2 A
4.8 nC
39.5 W
TO-220-2
Industrial
Yes
C3D03060E
600 V
3 A
Gen 3
1.5 V
3 A
6.7 nC
53 W
TO-252-2
Industrial
Yes
C3D03060F
600 V
3 A
Gen 3
1.5 V
3 A
6.7 nC
12.5 W
TO-220-F2
Industrial
Yes
C3D03060A
600 V
3 A
Gen 3
1.5 V
3 A
6.7 nC
53 W
TO-220-2
Industrial
Yes
C3D04060E
600 V
4 A
Gen 3
1.5 V
4 A
8.5 nC
75 W
TO-252-2
Industrial
Yes
C3D04060F
600 V
4 A
Gen 3
1.5 V
4 A
8.5 nC
13.1 W
TO-220-F2
Industrial
Yes
C3D04060A
600 V
4 A
Gen 3
1.5 V
4 A
8.5 nC
75 W
TO-220-2
Industrial
Yes
C3D06060G
600 V
6 A
Gen 3
1.5 V
6 A
16 nC
91 W
TO-263-2
Industrial
Yes
C3D06060F
600 V
6 A
Gen 3
1.5 V
6 A
16 nC
17 W
TO-220-F2
Industrial
Yes
C3D06060A
600 V
6 A
Gen 3
1.5 V
6 A
16 nC
79 W
TO-220-2
Industrial
Yes
C3D08060G
600 V
8 A
Gen 3
1.5 V
8 A
21 nC per leg
107 W
TO-263-2
Industrial
Yes
C3D08060A
600 V
8 A
Gen 3
1.5 V
8 A
21 nC
110 W
TO-220-2
Industrial
Yes
C3D10060G
600 V
10 A
Gen 3
1.5 V
10 A
25 nC per leg
136 W
TO-263-2
Industrial
Yes
C3D10060A
600 V
10 A
Gen 3
1.5 V
10 A
25 nC
136 W
TO-220-2
Industrial
Yes
C3D16060D
600 V
16 A
Gen 3
1.5 V per leg
16 A
21 nC per leg
200 W
TO-247-3
Industrial
Yes
C3D20060D
600 V
20 A
Gen 3
1.5 per leg
20 A
25 nC per leg
500 W
TO-247-3
Industrial
Yes
Features
  • Low forward voltage (Vf) drop over temperature
  • Zero reverse-recovery charge for fast switching operations
  • Robust MPS technology
  • High reverse-voltage blocking capability
Benefits
  • Improves System Efficiency with lower conduction losses
  • Enables high switching frequency operation
  • Improves System Level Power Density
  • Reduces System Size; Weight; and Cooling Requirements
Applications
  • Industrial Power Supplies
  • Server/Telecom
  • EV-Charging Systems
  • Energy Storage Systems (ESS)
  • Uninterruptible Power Supplies (UPS)
  • Battery Management Systems (BMS)
Apply Filters
