600 kW XM3 High Performance Dual Three-Phase Inverter

CRD600DA12E-XM3 62mm XM3 SiC Power Module
CRD600DA12E-XM3

The 600kW three-phase inverter demonstrates system-level power density and efficiency obtained by using by using six of Wolfspeed’s XM3 half-bridge power modules. With half the weight and volume of a standard 62mm module; the XM3 footprint maximizes power density while minimizing loop inductance for low-loss; high-frequency operation with simple power bussing.

Advanced double-sided cold plate and highly-integrated DC Link capacitor reduce component count and increase power density. The three-phase dual inverter has greater than 4x the power density of comparable Si based designs and greater than 98% efficiency.

This design features:

  • Optimized for Wolfspeed’s All-SiC; Low Inductance; Conduction Optimized XM3 Power Module
  • Complete Stackup; including: Modules; Cooling; Bussing; Gate Drivers; Voltage / Current Sensors; and Controller
  • High-Frequency; Ultra-Fast Switching Operation with Ultra-Low Loss; Low Parasitic Bussing
  • Enables Compact; Lightweight Systems
  • Increased Power Density
  • High Efficiency Operation
  • Reduced Thermal Requirements
  • Reduced System Cost

Specifications

  • DC Bus voltage: 800 V nominal; 900 V maximum
  • Switching frequency: 80 kHz maximum
  • DC Link capacitance: 600 µF
  • Double-sided liquid cold plate
  • CAN interface
  • Single Bridge Operation
    • 360 Arms output current
  • Parallel Bridge Operation
    • 720 Arms output current
Applications
  • Vehicle Traction Inverters
  • Active Front-Ends
  • Uninterruptible Power Supplies
  • Industrial Motor Drives
  • Energy Storage
  • Grid-Tied Distributed Generation: Solar and Wind
  • Smart-Grid / Flexible AC Transmission Systems
What's Included

Reference Design Files for

  • Controller Board
  • Current Sensor Board
  • Bus Discharge Board

System design files for

  • System 3D model
  • Auxilary component BOM
Request Separately

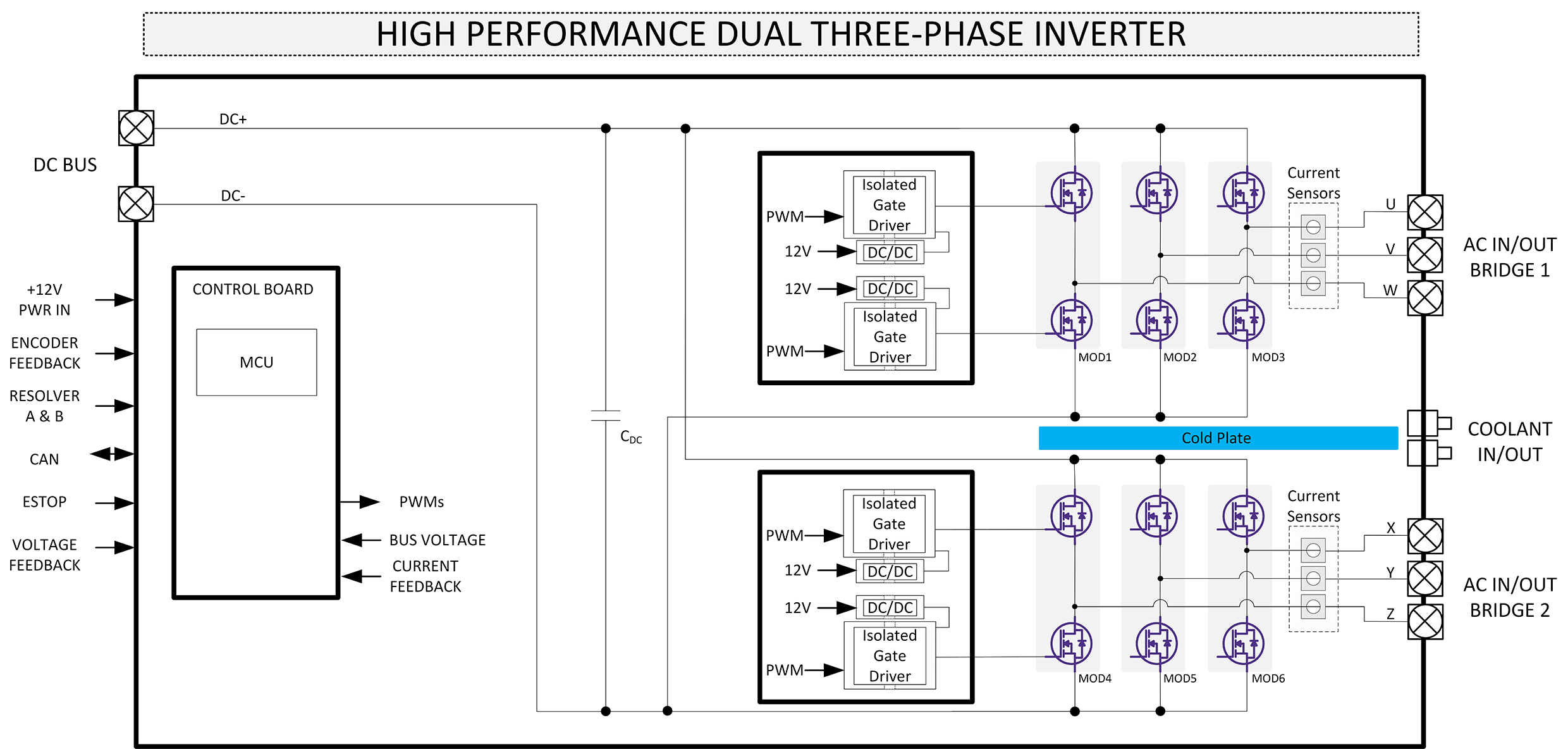

crd600da12e_xm3_block_diagram
F2837x C2000 real-time microcontroller

Dual Core MCU with control algorithms on a controlCARD development board

View Product
DC Link Capacitor

600 µF, 900 VDC film capacitor with integrated bus bars

View Product
cgd12hbxmp_prototype
CGD12HBXMP

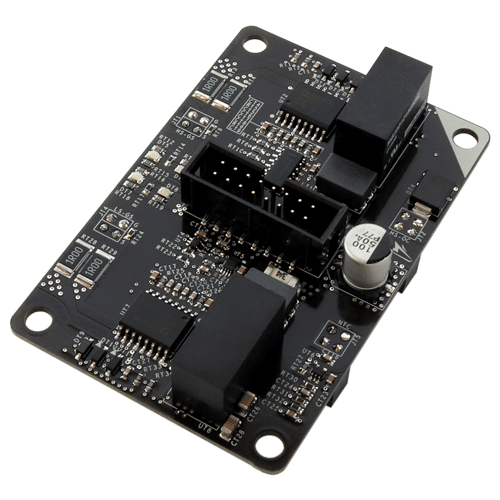

Form-factor-fitting two channel gate driver board optimized for XM3 power modules

View Product
cgd12hbxmp_prototype
CGD12HBXMP

Form-factor-fitting two channel gate driver board optimized for XM3 power modules

View Product
ADuM4135

4A, High Voltage, Isolated Gate Driver with Internal Miller Clamp and DESAT protection for MOD1-6

View Product
ADuM4135

4A, High Voltage, Isolated Gate Driver with Internal Miller Clamp and DESAT protection for MOD1-6

View Product
DC-DC Converter

2W Isolated DC-DC Converter Vin=12V, Vout= +15V/-4V

DC-DC Converter

2W Isolated DC-DC Converter Vin=12V, Vout= +15V/-4V

Two-Sided Cold Plate

Optimized for high-performance cooling

View Product
Wolfspeed XM3 Power Module Family
CAB450M12XM3

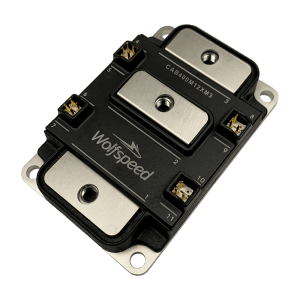

Silicon Carbide Power 1200V, 450A All-Silicon Carbide Conduction Optimized Half-Bridge Module

View Product
Wolfspeed XM3 Power Module Family
CAB450M12XM3

Silicon Carbide Power 1200V, 450A All-Silicon Carbide Conduction Optimized Half-Bridge Module

View Product
Wolfspeed XM3 Power Module Family
CAB450M12XM3

Silicon Carbide Power 1200V, 450A All-Silicon Carbide Conduction Optimized Half-Bridge Module

View Product
Wolfspeed XM3 Power Module Family
CAB450M12XM3

Silicon Carbide Power 1200V, 450A All-Silicon Carbide Conduction Optimized Half-Bridge Module

View Product
Wolfspeed XM3 Power Module Family
CAB450M12XM3

Silicon Carbide Power 1200V, 450A All-Silicon Carbide Conduction Optimized Half-Bridge Module

View Product
Wolfspeed XM3 Power Module Family
CAB450M12XM3

Silicon Carbide Power 1200V, 450A All-Silicon Carbide Conduction Optimized Half-Bridge Module

View Product
