Features
- Low Forward Voltage (VF) Drop with Positive Temperature Coefficient
- Zero Reverse Recovery Current / Forward Recovery Voltage
- Temperature-Independent Switching Behavior
- Low Profile Package with Low Inductance

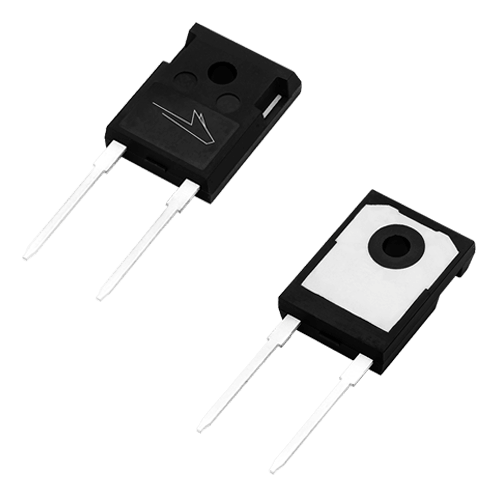

1700 V Discrete Silicon Carbide Schottky Diodes
Wolfspeed’s Family of 1700 V Silicon Carbide Schottky Diodes
Wolfspeed’s 1700 V Discrete Silicon Carbide (SiC) Schottky Diodes meet higher efficiency standards than standard silicon based solutions, while reaching higher frequencies and power densities. Silicon Carbide Schottky diodes can be easily paralleled to meet various application demands, without concern of thermal runaway. In combination with the reduced cooling requirements and improved thermal performance of Silicon Carbide products, these diodes are able to provide lower overall system costs in a variety of diverse applications.
Featured Resources
Design Tools
Technical Support
Products
1700 V Discrete Silicon Carbide Schottky Diodes
No filters selected, showing all 6 products
1700 V Discrete Silicon Carbide Schottky Diodes - Filter By
1700 V Discrete Silicon Carbide Schottky Diodes
Product SKU | Buy Online | Request Sample | Data Sheet | CAD Model | Blocking Voltage | Current Rating | Generation | Forward Voltage(VF(type)) | Maximum Continuous Current (IF) | Total Capacitive Charge (QC (typ)) | Total Power Dissipation (PTOT) | Package | Qualification | Recommended For New Design? |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C6D05170H New | 1700 V | 5 A | Gen 6 | 1.5 V | 5 A | 78 nC | 110 W | TO-247-2 | Industrial | Yes | ||||
C6D25170H New | 1700 V | 25 A | Gen 6 | 1.5 V | 25 A | 325 nC | 375 W | TO-247-2 | Industrial | Yes | ||||
C6D10170H New | 1700 V | 10 A | Gen 6 | 1.5 V | 10 A | 111 nC | 185 W | TO-247-2 | Industrial | Yes | ||||
1700 V | 25 A | Gen 5 | 1.5 V | 25 A | 255 nC | 384 W | TO-247-2 | Industrial | No | |||||
1700 V | 10 A | Gen 5 | 1.7 V | 10 A | 111 nC | 185 W | TO-247-2 | Industrial | No | |||||
1700 V | 5 A | Gen 5 | 1.5 V | 5 A | 69 nC | 115 W | TO-247-2 | Industrial | No |
Product Details
Benefits
- Enables High Switching Frequency Operation
- Increased Power Density
- Parallel Mode Operation Possible
- Reduces System Size, Weight, Cooling Requirements
Applications
- Industrial Switched Mode Power Supplies
- Uninterruptible & AUX Power Supplies
- Boost for PFC & DC-DC Stages
- EV Chargers
- Pulse Power
