Isolation Voltage 1000 V
Interface 16 pins
Output Peak Current 10 A
Mounting Direct low inductance
dv/dt 100 kV/µs
Maximum Switching Frequency 80 kHz
Topology Half-bridge

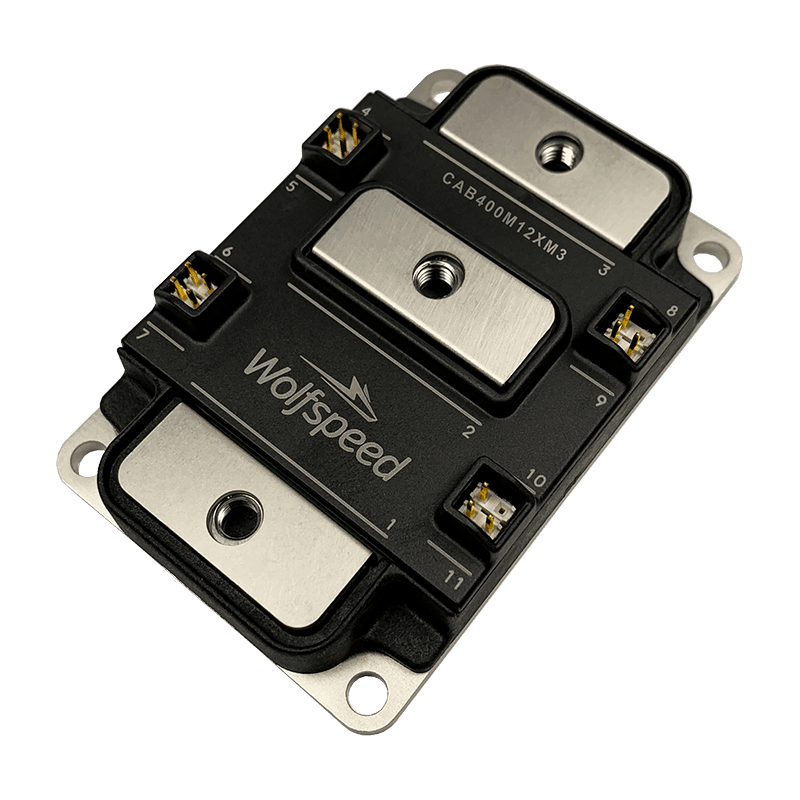

SiC Products Supported CAB400M12XM3
CAB450M12XM3
Voltage 5 kVDC 1 min
Channels 2

Evaluation Gate Driver Tool Optimized for the XM3 Module Platform

SKU: CGD12HBXMP

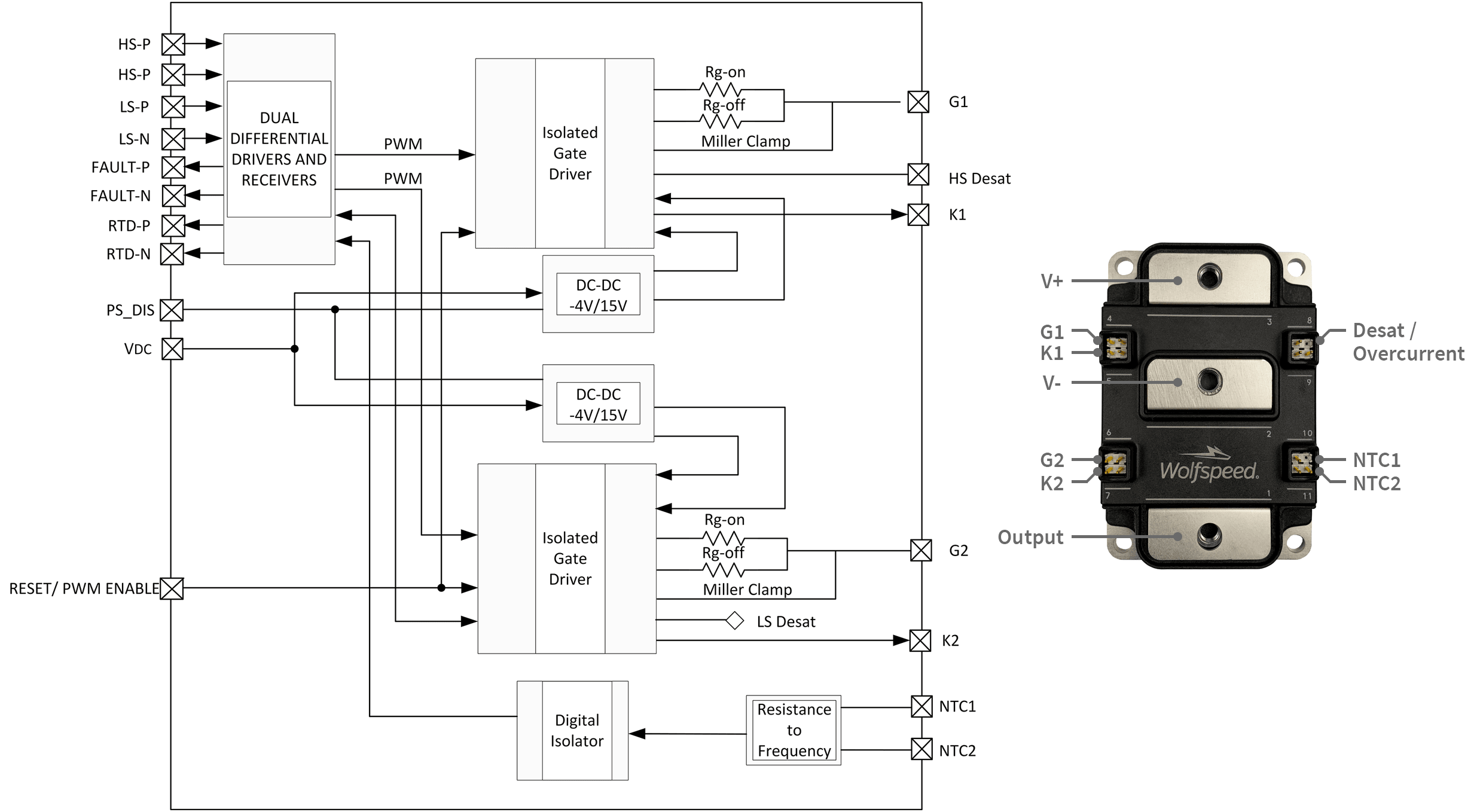

Wolfspeed’s CGD12HBXMP is a form-factor-fitting, two-channel gate driver for the XM3 power module platform. Each of the two gate drive channels is protected against over-current and reverse polarity.  On-board 2 W isolated power supplies supporting 80 kHz switching frequency.

Features:

  • Optimized for Wolfspeed’s high-performance XM3 SiC half bridge power modules
  • On-board 2 W isolated power supplies supporting 80 kHz switching frequency
  • User-configurable turn-on and turn-off gate resistors enabling switching loss optimization
  • On-board overcurrent, shoot-through prevention, and reverse polarity protection
  • Differential inputs for increased noise immunity
  • Very low isolation capacitance (<5 pF) and 100 kV/µs common-mode transient immunity (CMTI)
  • Fault and power indicator LEDs for instant visual feedback

Applications:

  • Evaluation Tool for XM3 1.2kV, SiC MOSFET modules
  • DC bus voltage up to 1000V

Companion Product (CGD12HB00D):

  • Differential Transceiver Sold Separately from Gate Drive Evaluation Board
  • Converts single-ended I/O to high noise immunity differential I/O
  • Supports single-ended 3.3 V or 5.0 V logic-level inputs
  • Integrated reverse polarity and overvoltage protections
  • Fault indicator LEDs for instant visual feedback
  • Single-ended and differential filter networks for additional EMC/EMI immunity
