SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards

The SpeedVal Kit Modular Evaluation Platform features power daughter cards arranged in a half-bridge configuration. The unique card edge interface provides low inductance while greatly simplifying the process of swapping out components, enabling high-quality measurements and quick comparisons between different devices. Power Daughter Cards are optimized for making accurate high-bandwidth current and voltage measurements.  ​ An on-board current shunt can be optimized for highly accurate dynamic switching tests, or high-power thermal testing with the evaluation board. The coaxial MMCX connectors for VGS and IDS and BNC connectors for VDS provide noise-free measurements to improve accuracy and simplify gate drive optimization.  ​ The power daughter cards include a pre-assembled heatsink which aligns with a fan on the motherboard to enable high-power testing.
Configure My Kit
  • Overview
  • Featured Resources
  • Products
  • Tools, Documents, & Support
  • Overview
  • Featured Resources
  • Products
  • Tools, Documents, & Support

Featured Resources

Design Tools

SpeedVal Kit Modular Evaluation PlatformSpeedVal Kit Configurator ToolSpeedFit™ Design SimulatorLTspice & PLECS Models

Technical Support

Power Applications Forum

Featured Documents

PRD-08554: SpeedVal™ Kit TO-247-3 Power Daughter Card User Guide
PRD-06831: SpeedVal™ Kit TO-263-7 Power Daughter Card User Guide
PRD-06832: SpeedVal™ Kit TO-247-4 Power Daughter Card User Guide
PRD-06834: SpeedVal™ Kit TOLL Power Daughter Card User Guide

Products

SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards

No filters selected, showing all 24 products

SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards - Filter By

SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards

Product SKU
Buy Online
Request Sample
User Guide
Design Files
Status
Upper Devices
Lower Devices
Blocking Voltage
RDS(ON) at 25°C
Package
View Product
MOD-PWR-MM-C3M0075120D
Active
C3M0075120D
C3M0075120D
1200 V
75 mΩ
TO-247-3
MOD-PWR-MM-C3M0025065K
Active
C3M0025065K
C3M0025065K
650 V
25 mΩ
TO-247-4
MOD-PWR-MM-C3M0015065K
Active
C3M0015065K
C3M0015065K
650 V
15 mΩ
TO-247-4
MOD-PWR-MM-C3M0060065K
Active
C3M0060065K
C3M0060065K
650 V
60 mΩ
TO-247-4
MOD-PWR-MM-C3M0045065K
Active
C3M0045065K
C3M0045065K
650 V
45 mΩ
TO-247-4
MOD-PWR-MM-E3M0021120K
Active
E3M0021120K
E3M0021120K
1200 V
21 mΩ
TO-247-4
MOD-PWR-MM-C3M0016120K
Active
C3M0016120K
C3M0016120K
1200 V
16 mΩ
TO-247-4
MOD-PWR-MM-C3M0021120K
Active
C3M0021120K
C3M0021120K
1200 V
21 mΩ
TO-247-4
MOD-PWR-MM-E3M0016120K
Active
E3M0016120K
E3M0016120K
1200 V
16 mΩ
TO-247-4
MOD-PWR-MM-E3M0160120K
Active
E3M0160120K
E3M0160120K
1200 V
160 mΩ
TO-247-4
MOD-PWR-MM-C3M0040120K
Active
C3M0040120K
C3M0040120K
1200 V
40 mΩ
TO-247-4
MOD-PWR-MM-C3M0075120K
Active
C3M0075120K
C3M0075120K
1200 V
75 mΩ
TO-247-4
MOD-PWR-MM-C3M0032120K
Active
C3M0032120K
C3M0032120K
1200 V
32 mΩ
TO-247-4
MOD-PWR-MM-C3M0045065J1
Active
C3M0045065J1
C3M0045065J1
650 V
45 mΩ
TO-263-7
MOD-PWR-MM-C3M0060065J
Active
C3M0060065J
C3M0060065J
650 V
60 mΩ
TO-263-7
MOD-PWR-MM-C3M0025065J1
Active
C3M0025065J1
C3M0025065J1
650 V
25 mΩ
TO-263-7
MOD-PWR-MM-C3M0065090J
Active
C3M0065090J
C3M0065090J
900 V
65 mΩ
TO-263-7
MOD-PWR-MM-C3M0160120J
Active
C3M0160120J
C3M0160120J
1200 V
160 mΩ
TO-263-7
MOD-PWR-MM-C3M0075120J
Active
C3M0075120J
C3M0075120J
1200 V
75 mΩ
TO-263-7
MOD-PWR-MM-C3M0040120J1
Active
C3M0040120J1
C3M0040120J1
1200 V
40 mΩ
TO-263-7
MOD-PWR-MM-C3M0032120J1
Active
C3M0032120J1
C3M0032120J1
1200 V
32 mΩ
TO-263-7
MOD-PWR-MM-C3M0025065L
Active
C3M0025065L
C3M0025065L
650 V
25 mΩ
TOLL
MOD-PWR-MM-C3M0060065L
Active
C3M0060065L
C3M0060065L
650 V
60 mΩ
TOLL
MOD-PWR-MM-C3M0045065L
Active
C3M0045065L
C3M0045065L
650 V
45 mΩ
TOLL

End of Section

Explore The Options​

There are several different families of power daughter cards to choose from depending on the device package. All the cards use the same interface and are compatible with the SpeedVal Kit motherboard.​

Front & side shots of Wolfspeed's SpeedVal Kit power daughter card (MOSFET modular accessory board) in a TOLL (TO-Leadless) discrete package.
SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards – TOLL
Product shot of Wolfspeed's MOD-PWR-MM, a MOSFET modular accessory board (power daughter card) in a TO-247-4 package designed for Wolfspeed's SpeedVal Kit modular evaluation platform.
SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards – TO-247-4

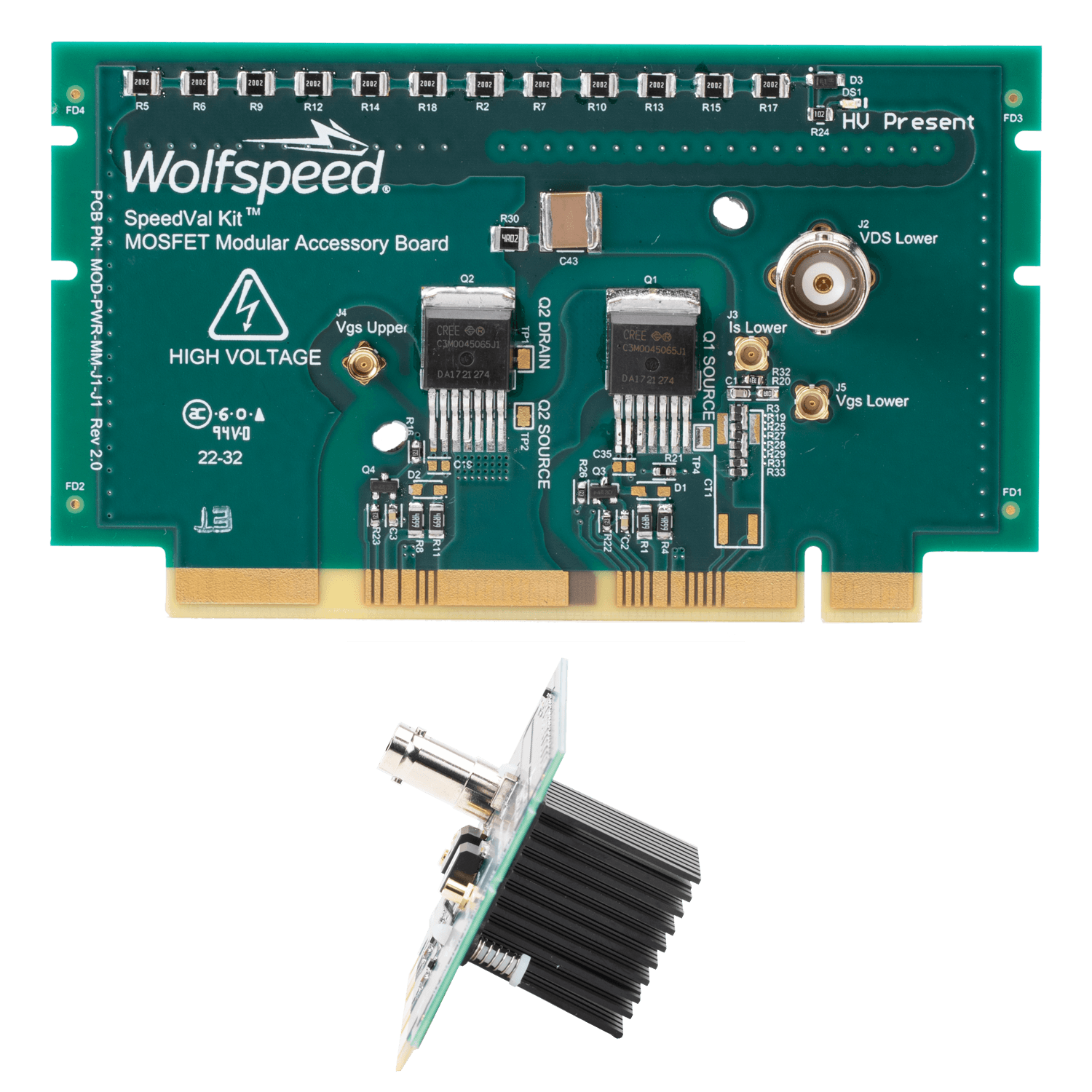

Product shot of Wolfspeed's MOD-PWR-MM, a MOSFET modular accessory board (power daughter card), in a TO-263-7 package designed for Wolfspeed's SpeedVal Kit modular evaluation platform.
SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards – TO-263-7

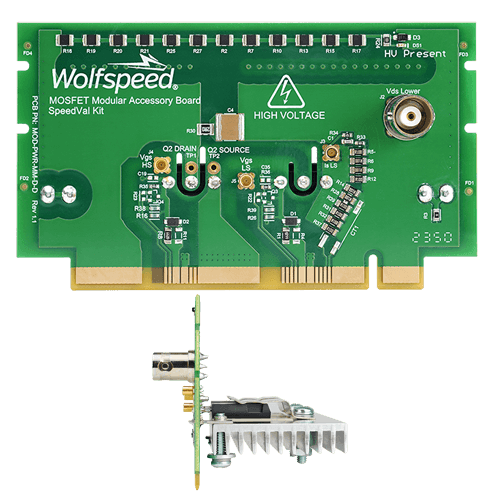

Product shot of Wolfspeed's MOD-PWR-MM-D-D, a MOSFET modular accessory board (power daughter card) in a TO-247-3 package designed for Wolfspeed's SpeedVal Kit modular evaluation platform.
SpeedVal™ Kit Modular Evaluation Platform​ Power Daughter Cards – TO-247-3
