SpeedVal™ Kit Modular Evaluation Platform Power Daughter Cards – TO-263-7

TO-263-7 Package Board

Silicon Carbide MOSFETs in a TO-263-7 package support high power designs and simplify assembly with SMT processes. The SpeedVal Kit TO-263-7 power daughter cards feature two MOSFETs arranged in a half-bridge configuration. The unique card edge interface provides low inductance and simplifies the process of swapping out components, enabling high-quality measurements and quick comparisons between different devices. Power Daughter Cards are optimized for making accurate high-bandwidth current and voltage measurements. An on-board current shunt can be optimized for highly accurate dynamic switching tests, or high-power thermal testing with the evaluation board. The coaxial MMCX connectors for VGS and IDS and BNC connectors for VDS provide noise-free measurements to improve accuracy and simplify gate drive optimization. The power daughter cards include a pre-assembled heatsink which aligns with a fan on the motherboard to enable high-power testing.

TO-263-7 package

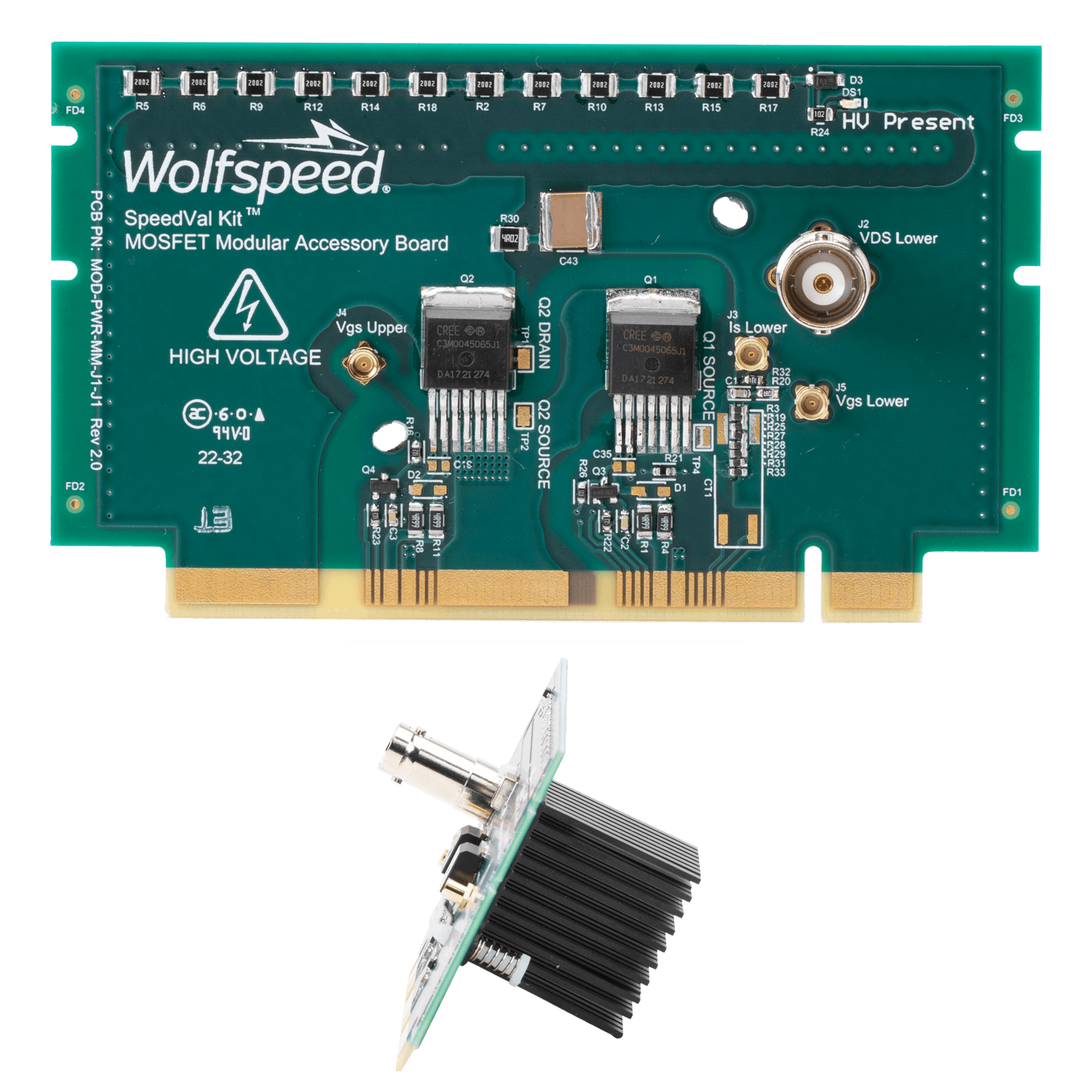

Front product image of the TO-263-7 package.

Side product image of the TO-263-7 package.

Parametric Data

No filters selected, showing all 12 products

Filter By

Product SKU	Buy Online	Status	Upper Devices	Lower Devices	Blocking Voltage	R_DS(ON) at 25°C	Package
MOD-PWR-MM-C3M0025065J1	Purchase MOD-PWR-MM-C3M0025065J1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0025065J1	C3M0025065J1	650 V	25 mΩ	TO-263-7 XL
MOD-PWR-MM-C3M0045065J1	Purchase MOD-PWR-MM-C3M0045065J1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0045065J1	C3M0045065J1	650 V	45 mΩ	TO-263-7 XL
MOD-PWR-MM-C3M0060065J	Purchase MOD-PWR-MM-C3M0060065J Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0060065J	C3M0060065J	650 V	60 mΩ	TO-263-7
MOD-PWR-MM-C3M0065090J	Purchase MOD-PWR-MM-C3M0065090J Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0065090J	C3M0065090J	900 V	65 mΩ	TO-263-7
MOD-PWR-MM-C4MS025120J2 Coming Soon		Coming Soon	C4MS025120J2	C4MS025120J2	1200 V	25 mΩ	TO-263-7 XL
MOD-PWR-MM-C3M0032120J1	Purchase MOD-PWR-MM-C3M0032120J1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0032120J1	C3M0032120J1	1200 V	32 mΩ	TO-263-7 XL
MOD-PWR-MM-C4MS036120J2 Coming Soon		Coming Soon	C4MS036120J2	C4MS036120J2	1200 V	36 mΩ	TO-263-7 XL
MOD-PWR-MM-C3M0040120J1	Purchase MOD-PWR-MM-C3M0040120J1 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0040120J1	C3M0040120J1	1200 V	40 mΩ	TO-263-7 XL
MOD-PWR-MM-C4MS047120J2 Coming Soon		Coming Soon	C4MS047120J2	C4MS047120J2	1200 V	47 mΩ	TO-263-7 XL
MOD-PWR-MM-C4MS065120J2 Coming Soon		Coming Soon	C4MS065120J2	C4MS065120J2	1200 V	65 mΩ	TO-263-7 XL
MOD-PWR-MM-C3M0075120J	Purchase MOD-PWR-MM-C3M0075120J Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0075120J	C3M0075120J	1200 V	75 mΩ	TO-263-7
MOD-PWR-MM-C3M0160120J	Purchase MOD-PWR-MM-C3M0160120J Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	Active	C3M0160120J	C3M0160120J	1200 V	160 mΩ	TO-263-7

Product Details

Specifications

Gate resistors onboard
Heatsink preassembled on board
BNC connector for lower VDS measurement
MMCX connectors for VGS and IDS measurement
Miller clamp transistor supported
High-Bandwidth current sensor

What's Included

Power Daughter Card
Complete design files

Purchase Separately

Motherboards (required)
All Power Daughter Cards (required)
Gate Drive Card (required)
Control Card (optional)
Accessories (optional)

Featured Resources

Documents, Tools & Support

Block Diagram
Technical & Sales Documents
Tools & Support

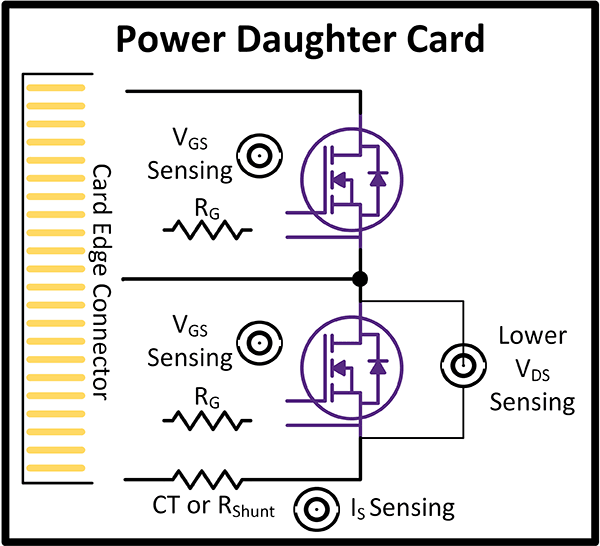

Block diagram of the circuit design of the Power Daughter Cards used in Wolfspeed's SpeedVal Kit modular evaluation platform.

SpeedVal Kit Videos

Now Playing: Unboxing Wolfspeed’s SpeedVal Kit

What’s in the box? Join Wolfspeed Global Distribution Technical Manager Nick Powers as he unboxes the SpeedVal Kit Modular Evaluation Platform and highlights the advantages of using this flexible set of power building blocks for in-circuit evaluation of power system performance.
