What's Included

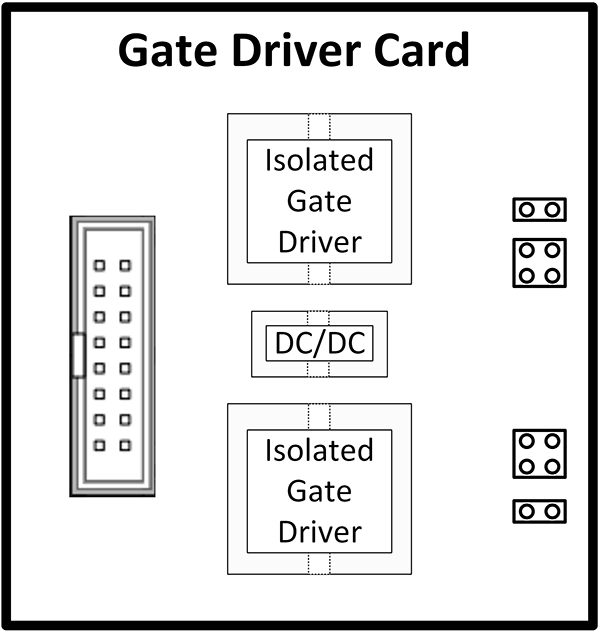

- Gate Driver Card
SpeedVal™ Kit Modular Evaluation Platform Gate Driver Cards
Numerous gate drive options to meet your needs
Wolfspeed has partnered with several industry-leading gate driver partners to provide you with a broad portfolio of gate driver cards that are compatible with the SpeedVal™ Kit platform. The cards allow users to test Wolfspeed Silicon Carbide devices with their choice of gate driver and feature set. All gate driver cards have two isolated gate drive outputs and associated gate power supplies for driving Wolfspeed Silicon Carbide MOSFETs. These cards have been tested for compatibility and are jointly supported by Wolfspeed and our partners.
These cards offer a range of features and current drive levels so that you can select the one that works best for your evaluation board. Having the freedom to select the gate driver you will use in your own design during the evaluation stage means that there won’t be any surprises when you move into the development stage.
The SpeedVal™ Kit gate driver cards are compatible with both the discrete SpeedVal™ Kit platform as well as the Wolfspeed WolfPACK evaluation boards.
Featured Resources
Technical Support
Featured Documents
Products
SpeedVal™ Kit Modular Evaluation Platform Gate Driver Cards
No filters selected, showing all 7 products
SpeedVal™ Kit Modular Evaluation Platform Gate Driver Cards
Product SKU | Buy Online | Platform | Designed By | Gate Driver | Output Channels | Gate Power | Miller Clamp | Short-Circuit Protection | Temperature Feedback | Recommended For New Design? | Interface Tool | View Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
FM, GM, SpeedVal Kit | Texas Instruments | 2 | 2W | Yes | Yes | Yes | Yes | |||||
FM, GM, SpeedVal Kit | Texas Instruments | 2 | 2W | Yes | Yes | Yes | Yes | |||||
FM, GM, SpeedVal Kit | Analog Devices | 2 | 2W | No | No | Yes | Yes | |||||
FM, GM, SpeedVal Kit | Analog Devices | 2 | 2W | Yes | No | Yes | Yes | |||||
FM, GM, SpeedVal Kit | Wolfspeed | 2 | 2W | Yes | Yes | Yes | Yes | |||||
FM, GM, SpeedVal Kit | Analog Devices | 2 | 2W | Yes | Yes | Yes | Yes | |||||
FM, GM, SpeedVal Kit | Skyworks | 2 | 1W | No | No | Yes | Yes |
Product Details
Purchase Separately
- Motherboard (required)
- All Power Daughter Cards (required)
- Gate Drive Card (required)
- Control Card (optional)
- Buck/Boost Filter (optional)
- Pearson Current Monitor (required for switching loss measurements)
- Firmware and GUI
Product Compatibility
SpeedVal Kit Videos
Unboxing Wolfspeed’s SpeedVal Kit
What’s in the box? Join Wolfspeed Global Distribution Technical Manager Nick Powers as he unboxes the SpeedVal Kit Modular Evaluation Platform and highlights the advantages of using this flexible set of power building blocks for in-circuit evaluation of power system performance.
