HM Power Module Family

1200 V & 1700 V Half-Bridge Power Module Footprint Designed for Ultra-High Power Density

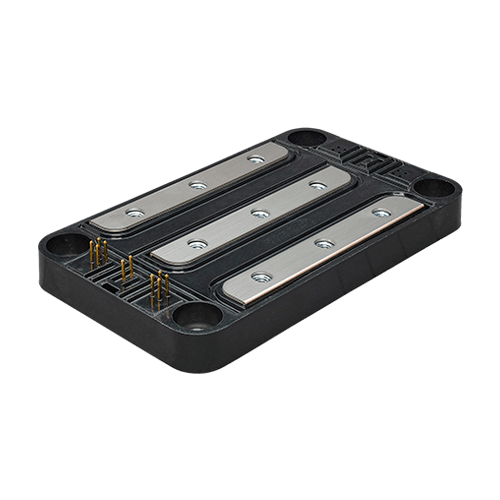

Wolfspeed has developed the HM power module platform to provide the benefits of Silicon Carbide (SiC) in power density sensitive applications; while maintaining the baseplate compatibility of a 62mm module. The HM platform’s Silicon Carbide optimized packaging enables 175°C continuous junction operation; with a high-reliability Silicon Nitride (Si3N4) power substrate to ensure mechanical robustness under extreme conditions and a lightweight AlSiC baseplate. The HM3 is a perfect fit for demanding applications such as industrial test equipment, medical power supplies, aerospace and traction drives.
  • Overview
  • Parametric Data
  • Product Details
  • Featured Resources
  • Tools & Support
  • Overview
  • Parametric Data
  • Product Details
  • Featured Resources
  • Tools & Support

Parametric Data

No filters selected, showing all 12 products

Filter By

Product SKU
Buy Online
Request Sample
Data Sheet
CAD Model
Status
Package
Configuration
Blocking Voltage
Current Rating
RDS(ON) at 25°C
Generation
Tjmax
Module Size
Qualification
CAB760M12HM3R
Active
HM
Half-Bridge Right GK for Paralleling
1200 V
1.33 mΩ
Gen 3 MOS
175 °C
110 x 65 x 12.2 mm
Industrial
CAS480M12HM3
Active
HM
Half-Bridge
1200 V
480 A
2.29 mΩ
Gen 3 MOS + Diodes
175 °C
110 x 65 x 12.2 mm
Industrial
CAR600M12HN6
Active
HM
Half-Bridge Rectifier
1200 V
600 A
Gen 6
175 °C
110 x 65 x 12.2 mm
Industrial
CAB760M12HM3
Active
HM
Half-Bridge
1200 V
760 A
1.33 mΩ
Gen 3 MOS
175 °C
110 x 65 x 12.2 mm
Industrial
CLB800M12HM3P
New
Active
HM
Common-Source
1200 V
800 A
1.3 mΩ
Gen 3+
175 °C
110 x 65 x 12.2 mm
Industrial
CLB800M12HM3PT
New
Active
HM
Common-Source
1200 V
800 A
1.3 mΩ
Gen 3+
175 °C
110 x 65 x 12.2 mm
Industrial
CAS380M17HM3
Active
HM
Half-Bridge
1700 V
380 A
3.3 mΩ
Gen 3 MOS + Diodes
175 °C
110 x 65 x 12.2 mm
Industrial
CAB500M17HM3
Active
HM
Half-Bridge
1700 V
500 A
2.5 mΩ
Gen 3 MOS
175 °C
110 x 65 x 12.2 mm
Industrial
CAR600M17HN6
Active
HM
Half-Bridge Rectifier
1700 V
600 A
Gen 6
175 °C
110 x 65 x 12.2 mm
Industrial
CAB650M17HM3
Active
HM
Half-Bridge
1700 V
650 A
1.67 mΩ
Gen 3 MOS
175 °C
110 x 65 x 12.2 mm
Industrial
CLB650M17HM3
New
Active
HM
Common-Source
1700 V
650 A
1.42 mΩ
Gen 3
175 °C
110 x 65 x 12.2 mm
Industrial
CLB650M17HM3T
New
Active
HM
Common-Source
1700 V
650 A
1.42 mΩ
Gen 3
175 °C
110 x 65 x 12.2 mm
Industrial

Product Details

Features

  • High Performance 62mm Footprint
  • Low Inductance (4.9 nH) Design to Enable High Speed Switching & High Efficiency with Reduced Losses
  • High Junction Temperature (175 °C) Operation
  • Configurations Available with both Second & Third Generation SiC MOSFETs
  • Lightweight AlSiC Baseplate
  • Silicon Nitride Insulator for Robust Thermal Cycling Capability

Benefits

  • Lightweight; Compact Form Factor with 62mm Compatible Baseplate Enables System Retrofit
  • Increased System Efficiency; due to Low Switching & Conduction Losses of Silicon Carbide
  • High-Reliability Material Selection enabling High-Temperature Operation

Typical Applications

  • Railway & Traction
  • Solar & Renewable Energy
  • EV Chargers
  • Industrial Automation & Testing
  • Medical Power Supplies
  • Motor Drives

Featured Resources

Design Tools

SpeedFit Design SimulatorLTspice & PLECS Models

Technical Support

Power Applications Forum

Featured Documents

PRD-08333: Wolfspeed Module CIL Evaluation Kits User Guide
PRD-07933: Power Module Thermal Interface Material Application User Guide
PRD-07913: Wolfspeed Power Module SPICE Models User Guide

Tools & Support

  • Technical & Sales Documents
  • Tools & Support
  • Compliance

Documents

32 Documents Available
Document Type
Document Name
Last Updated
Data Sheets
CLB800M12HM3P
New
05/2025
Data Sheets
CLB650M17HM3
New
05/2025
Data Sheets
CAB760M12HM3R
07/2024
Data Sheets
CAB500M17HM3
07/2024
Data Sheets
CAB650M17HM3
07/2024
Data Sheets
CAS380M17HM3
07/2024
Data Sheets
CAB760M12HM3
07/2024
Data Sheets
CAS480M12HM3
07/2024
Data Sheets
CAR600M12HN6
06/2024
Data Sheets
CAR600M17HN6
06/2024
User Guide
PRD-08333: Wolfspeed Module CIL Evaluation Kits User Guide
03/2025
User Guide
PRD-07933: Power Module Thermal Interface Material Application User Guide
03/2025
User Guide
PRD-09035: Wolfspeed Power Module RC Thermal Models User Guide
01/2025
Design Files
06/2020
Application Notes
PRD-09301: Gate Driver Design for SiC Power Modules
New
05/2025
Application Notes
PRD-07845: Power Module Baseplate Capacitance and Electromagnetic Compatibility
03/2025
Application Notes
PRD-08911: Considerations for Current Balancing in Paralleled SiC Power Modules
01/2025
Application Notes
PRD-04814: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies
01/2025
Application Notes
PRD-08907: Mitigating EMI with SiC Solutions in Renewable Energy & Grid-Connected Power Converters
01/2025
Application Notes
PRD-08710: Measuring Stray Inductance in Power Electronics Systems
07/2024
Application Notes
PRD-08734: Understanding and Simulating Parasitic Inductance in Silicon Carbide Systems
07/2024
Application Notes
PRD-08376: Thermal Characterization Methods and Applications
01/2024
Application Notes
PRD-08296: SiC MOSFET Short Circuit Events
11/2023
Application Notes
PRD-06379: Environmental Considerations for Power Electronics Systems
08/2023
Application Notes
PRD-06933: Capacitance Ratio and Parasitic Turn-on
01/2023

Knowledge Center

View All

Maximizing Performance of 1500 V DC Bus Applications with the 2300 V SiC Modules

View Now  Webinars

How Wolfspeed Power Modules are Revolutionizing 3-Phase Industrial Low Voltage Motor Drives

Continue Reading  Technical Articles

Gen 4 Silicon Carbide Technology: Redefining Performance and Durability in High-Power Applications

Continue Reading  White Paper

Support

Technical SupportPower Applications Forum
Buy OnlineFind a Distributor
Request SamplesVisit the Sample Center
