功率产品

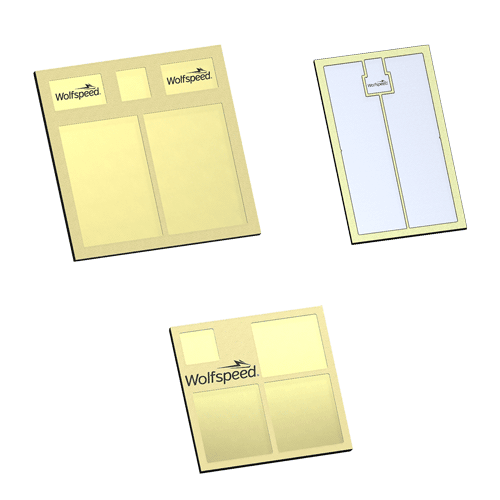

碳化硅 MOSFET – 裸芯片

产品

No filters selected, showing all 27 products

Filter By

产品SKU	Status	阻断电压	导通电阻 R_DS(ON) @ 25°C	额定电流	总栅极电荷	输出电容	反向恢复电荷 (Qrr)	反向恢复时间 (Trr)	最高结点温度	代际	认证
CPM3-0650-0015A	Active	650 V	15 mΩ	120 A	190 nC	290 pF	510 nC	22 ns	175 °C	Gen 3	Industrial
CPM3-0650-0045A	Active	650 V	45 mΩ	49 A	63 nC	100 pF	247 nC	13 ns	175 °C	Gen 3	Industrial
CPM3-0650-0060A	Active	650 V	60 mΩ	37 A	46 nC	80 pF	151 nC	11 ns	175 °C	Gen 3	Industrial
EPM3-0750-0010D	Active	750 V	10 mΩ	178 A	267 nC	340 pF	737 nC	25 ns	175 °C	Gen 3+	Automotive
CPM3-0900-0010A	Active	900 V	10 mΩ	194 A	210 nC	360 pF	1300 nC	36 ns	175 °C	Gen 3	Industrial
CPM3-0900-0065A	Active	900 V	65 mΩ	32 A	33 nC	70 pF	220 nC	22 ns	175 °C	Gen 3	Industrial
EM4E120-032D10	Active	1200 V	9.6 mΩ	202 A	317 nC	259 pF	2184 nC	45 ns	185 °C	Gen 4	Automotive
EM4E120-028D00	Active	1200 V	11.6 mΩ	166 A	260 nC	220 pF	700 nC	31 ns	185 °C	Gen 4	Automotive
EM4E120-025D10 新的	Active	1200 V	12.5 mΩ	159 A	242 nC	206 pF	1180 nC	40 ns	185 °C	Gen 4	Automotive
EM4E120-025D00 新的	Active	1200 V	13 mΩ	149 A	234 nC	210 pF	1133 nC	33 ns	185 °C	Gen 4	Automotive
EPM3-1200-R013D	Active	1200 V	13 mΩ	160 A	265 nC	226 pF	1259 nC	34 ns	175 °C	Gen 3+	Automotive
CPM3-1200-0013A	Active	1200 V	13 mΩ	149 A	260 nC	284 pF	1800 nC	43 ns	175 °C	Gen 3	Industrial
EM40120-026JS0	Active	1200 V	13.8 mΩ	159 A	251 nC	212 pF	1379 nC	50 ns	175 °C	Gen 4	Automotive
EPM3-1200-0014D1	Active	1200 V	14 mΩ	149 A	255 nC	200 pF	1068 nC	31 ns	175 °C	Gen 3+	Automotive
EPM3-1200-R015D	Active	1200 V	15 mΩ	148 A	238 nC	200 pF	1388 nC	34 ns	175 °C	Gen 3+	Automotive
CPM3-1200-0016A	Active	1200 V	16 mΩ	112 A	227 nC	230 pF	1238 nC	30 ns	175 °C	Gen 3	Industrial
EPM3-1200-0017D1-R01	Active	1200 V	17 mΩ	134 A	207 nC	221 pF	1242 nC	53 ns	175 °C	Gen 3	Automotive
EPM3-1200-0017D-R01	Active	1200 V	17 mΩ	134 A	200 nC	220 pF	1100 nC	52 ns	175 °C	Gen 3	Automotive
CPM3-1200-0021A	Active	1200 V	21 mΩ	100 A	162 nC	180 pF	928 nC	34 ns	175 °C	Gen 3	Industrial
CPM4-0120-0149JS0A	Active	1200 V	26 mΩ	90 A	136 nC	110 pF	590 nC	56 ns	175 °C	Gen 4	Industrial
CPM3-1200-0032A	Active	1200 V	32 mΩ	63 A	118 nC	130 pF	478 nC	27 ns	175 °C	Gen 3	Industrial
CPM4-0120-0104JS0A	Active	1200 V	42 mΩ	55 A	93 nC	85 pF	496 nC	24 ns	175 °C	Gen 4	Industrial
CPM3-1200-0075A	Active	1200 V	75 mΩ	30 A	54 nC	58 pF	109 nC	25 ns	175 °C	Gen 3	Industrial
CPM3-1700-R020E	Active	1700 V	17.5 mΩ	120 A	249 nC	188 pF	2557 nC	43 ns	175 °C	Gen 3	Industrial
EPM3-1700-0900A	Active	1700 V	900 mΩ	3.9 A	10 nC	8 pF	72 nC	40 ns	175 °C	Gen 3	Automotive
CPM4-0230-0255ES0A	Active	2300 V	30 mΩ	83 A	147 nC	102 pF	256 nC	16 ns	175 °C	Gen 4	Industrial
CPM3-3300-R050A	Active	3300 V	53 mΩ	52 A	255 nC	140 pF	2.5 nC	124 ns	175 °C	Gen 3	Industrial

产品系列

650 V Bare Die SiC MOSFETs – Gen 3

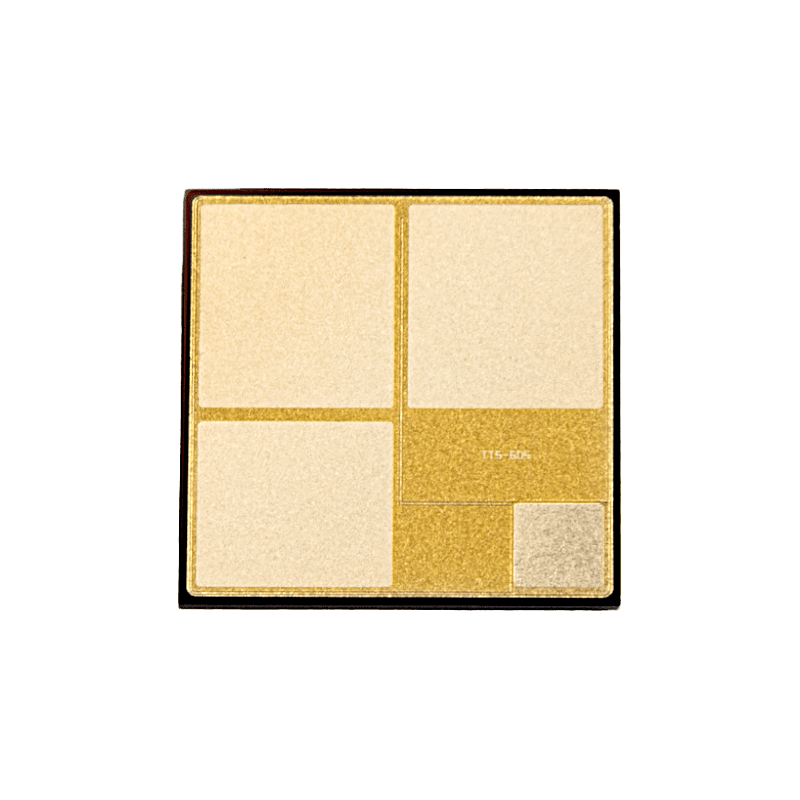

750 V Automotive Qualified Bare Die Silicon Carbide MOSFETs – Gen 3+

900 V Bare Die SiC MOSFETs – Gen 3

文档、工具和支持

技术和销售文档
工具 & 支持
合规

文件

Show All

应用指南

销售条款

9 Documents Available

文档类型	文档名称	最近更新
应用指南	PRD-05652: Mounting Recommendations and Thermal Measurement for Wolfspeed® SiC Power Devices in Through-Hole Packages	02/2025
应用指南	PRD-04814: Design Options for Wolfspeed® Silicon Carbide MOSFET Gate Bias Power Supplies	01/2025
应用指南	PRD-07969: Sintering Considerations and the Die Top System	04/2024
应用指南	PRD-08296: SiC MOSFET Short Circuit Events	11/2023
应用指南	PRD-06379: Environmental Considerations for Power Electronics Systems	08/2023
应用指南	PRD-06933: Capacitance Ratio and Parasitic Turn-on	01/2023
应用指南	PRD-05653: Recommended Solder Profiles for Power Products	09/2022
应用指南	PRD-05641: Designing with Silicon Carbide in Energy Storage Applications	02/2022
销售条款	Wolfspeed, Inc. Sales Terms and Conditions	04/2025
