Reference Designs

Wolfspeed offers time-saving Reference Designs for some of the most in-demand silicon carbide devices in power systems – Inverters, power converters, chargers and many more. These Reference Designs come complete with application notes, user guides and design files to allow designers to create rugged and reliable systems with best-in-class power density, performance and efficiency. Wolfspeed partners with experts in system integration to offer a wider selection of applications and power topologies built with the latest components. Our Partner reference Designs are developed and supported by our partners in collaboration with Wolfspeed.

Reference Designs

View Table

By Product Name
By Application

No filters selected, showing all 33 products

Filter By

Product SKU	Name	Buy Online	Type	Topology	Power	Discrete/Module	Package	Device SKU(s)	Designed By
TIDA-050063	Solid-State Relay Active Precharge		DC to DC	Buck		Discrete	TO-247-4	E3M0075120K	Texas Instruments

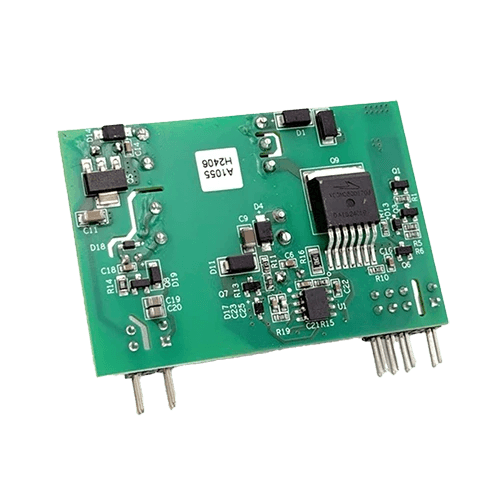

CRD-020DD17P-J	20W Auxiliary Power Flyback Converter		DC to DC	Flyback	0.020kW	Discrete	TO-263-7	C3M0900170J	Wolfspeed
CRD-02AD065N	2.2 kW Bridgeless Totem-Pole PFC		AC to DC	Totem-Pole PFC	2.2kW	Discrete	TO-247-3, TO-263-7	C3M0060065D C3M0060065J	Wolfspeed
CRD-03600AD065E-L	3.6 kW Bridgeless Totem-Pole PFC with Synchronous SiC MOSFETs	Purchase CRD-03600AD065E-L Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	AC to DC	Totem-Pole PFC	3.6kW	Discrete	TOLL, TO-247-3	C3M0045065L C3M0015065D	Wolfspeed
CRD-06600DD065N	6.6 kW High Frequency LLC		DC to DC	LLC	6.6kW	Discrete	TO-247-3	C3M0060065D C6D10065A	Wolfspeed
TIDA-01604	6.6 kW Bridgeless Totem-Pole PFC		AC to DC	Interleaved Totem-Pole PFC	6.6kW	Discrete	TO-247-3, TO-247-4	C3M0065100K	Texas Instruments
TIDM-02002	6.6 kW Bi-Directional CLLLC		DC to DC	CLLLC	6.6kW	Discrete	TO-247-4	C3M0030090K	Texas Instruments
CRD-06600FF065N-K	6.6 kW Bi-Directional Totem-Pole PFC and CLLC, High Power Density		AC to DC, DC to DC	Totem-Pole PFC and CLLC	6.6kW	Discrete	TO-247-4, TO-247-3	C3M0060065K C3M0060065D	Wolfspeed
CRD07500AA12N-FMC	7.5 kW FM3 Three-Phase Motor Drive		AC to DC, DC to AC	Passive Rectifier and Three-Phase, Three-Phase 2-Level	7.5kW	Module	FM	CCB032M12FM3	Wolfspeed
TIDA-010054	10 kW Phase Shift DAB		DC to DC	DAB (Dual Active Bridge)	10kW	Discrete	TO-247-4	C3M0075120K C3M0030090K	Texas Instruments
CRD-11DA12N-K	11 kW High Efficiency Three-Phase Motor Drive Inverter		DC to AC	Three-Phase 2-Level	11kW	Discrete	TO-247-4, TO-263-7	C3M0075120K C2M1000170J	Wolfspeed
CRD-13DA12N-J2	13 kW High Efficiency HVAC Motor Drive Inverter		DC to AC	Three-Phase 2-Level	13kW	Discrete	TO-263-7	E3M0075120J2	Wolfspeed
CRD-13DA12N-U2	13 kW High Efficiency Motor Drive Inverter with top-side cooled U2 package		DC to AC	Three-Phase 2-Level	13kW	Discrete	U2 (TSC)	E3M0075120U2	Wolfspeed
CRD-20DA12N-K	20 kW High Efficiency Three-Phase Motor Drive Inverter		DC to AC	Three-Phase 2-Level	20kW	Discrete	TO-247-4, TO-263-7	C3M0040120K C2M1000170J	Wolfspeed
CRD-22DD12N	22 kW Bi-Directional CLLC		DC to DC	CLLC	22kW	Discrete	TO-247-4	C3M0032120K E3M0032120K	Wolfspeed
CRD-22AD12N	22 kW Bi-Directional Active Front End (AFE)		AC to DC	Three-Phase 2-Level	22kW	Discrete	TO-247-4	C3M0032120K	Wolfspeed
CRD-22DD12N-J2	22 kW Bi-Directional CLLC Utilizing IMS Board		DC to DC	CLLC	22kW	Discrete	TO-263-7	E3M0032120J2	Wolfspeed
CRD-22DD12N-U2	22 kW Bi-Directional CLLC with Top-Side Cooled U2 package		DC to DC	CLLC	22kW	Discrete	U2 (TSC)	E3M0032120U2 C3M0032120U2	Wolfspeed
CRD25DA12N-FMC	25 kW FM3 Three-Phase Inverter	Purchase CRD25DA12N-FMC Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	DC to AC	Three-Phase 2-Level	25kW	Module	FM	CCB021M12FM3T	Wolfspeed
CRD-25BDA6512N-K	25 kW High Efficiency High Power Density Bi-directional T-type Inverter		DC to AC, AC to DC	Three-Phase 3-Level	25kW	Discrete	TO-247-4	C3M0032120K C3M0025065K	Wolfspeed
CRD-30DD12N-K	30 kW Interleaved LLC		DC to DC	LLC (3 Phase)	30kW	Discrete	TO-247-4, TO-220-2, TO-247-3	C3M0040120K C6D20065D C6D10065A	Wolfspeed
CRD-33FF12N-K	33 kW High-Efficiency Bi-Directional Active Neutral Point Clamped (ANPC) Converter with Wolfspeed Gen 4 Technology		DC to AC	Active Neutral Point Clamped (ANPC)	33kW	Discrete	TO-247-4	C4MS047120K C4MS025120K E4MS047120K E4MS025120K	Wolfspeed
CRD60DD12N-GMB	60 kW Dual Active Bridge Isolated DC/DC Converter		DC to DC	DAB (Dual Active Bridge)	60kW	Module	GM	CBB011M12GM4T	Wolfspeed
CRD-60DD12N-K	60 kW Interleaved LLC Converter		DC to DC	LLC (3 Phase)	60kW	Discrete	TO-247-4	C3M0040120K C3M0032120K C6D20065D	Wolfspeed
CRD-60DD12N	60 kW Interleaved Boost Converter		DC to DC	Boost - Asynchronous	60kW	Discrete	TO-247-4	C3M0075120K C4D10120D	Wolfspeed
CRD200DA23N-GMA	2300 V Three-Phase Inverter	Purchase CRD200DA23N-GMA Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	DC to AC	Three-Phase 2-Level	200kW	Module	GM	CAB5R0A23GM4T CAB6R0A23GM4T CAB7R5A23GM4T	Wolfspeed
CRD200DA12E-XM3	200 kW XM3 Three-Phase Inverter	Purchase CRD200DA12E-XM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	DC to AC	Three-Phase 2-Level	200kW	Module	XM	CAB400M12XM3 CGD12HBXMP	Wolfspeed
CRD250DA12E-XM3	250 kW XM3 Three-Phase Inverter	Purchase CRD250DA12E-XM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	DC to AC	Three-Phase 2-Level	250kW	Module	XM	CAB425M12XM3 CGD12HBXMP	Wolfspeed
TIDM-02014	300 kW Three-Phase Traction Inverter		DC to AC	Three-Phase 2-Level	300kW	Module	XM	EAB450M12XM3	Texas Instruments
CRD300DA12E-XM3	300 kW XM3 Three-Phase Inverter	Purchase CRD300DA12E-XM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	DC to AC	Three-Phase 2-Level	300kW	Module	XM	CAB450M12XM3 CGD12HBXMP	Wolfspeed
EV-INVERTERGEN3	EV Traction Inverter Control Reference Design Gen 3		DC to AC	Three-Phase 2-Level	300kW	Module	YM	ECB2R1M12YM3	NXP
CRD600DA12E-XM3	600 kW XM3 High Performance Dual Three-Phase Inverter	Purchase CRD600DA12E-XM3 Add to cart, or click Buy Now to purchase this product directly from any one of our distributors.	DC to AC	Dual Three-Phase, Three-Phase 2-Level	600kW	Module	XM	CAB450M12XM3 CGD12HBXMP	Wolfspeed
CRD1000DA23N-LM4	1500 V DC-Bus Three-Phase Inverter Using 2300 V SiC LM Power Modules		DC to AC	Three-Phase 2-Level	1000kW	Module	LM	CAB1K6C23LM4	Wolfspeed

Featured Resources

Documents, Tools, & Support

Technical & Sales Documents
Tools & Support
Compliance

Documents

24 Documents Available

Document Type	Document Name	Last Updated
User Guide	PRD-08904: 13 kW High-Efficiency HVAC Motor Drive Inverter User Guide (PDF)	10/2024
User Guide	PRD-08613: CRD-25BDA6512N-K 25kW Bi-Directional T-Type Inverter User Guide (PDF)	10/2024
User Guide	PRD-08423: CRD-22DD12N-J2 22 kW Bi-Directional CLLC Utilizing IMS Board User Guide (PDF)	04/2024
User Guide	PRD-06980: CRD-15DD17P 15 W Flyback Auxiliary Power Supply User Guide (PDF)	01/2024
User Guide	PRD-06979: CRD-60DD12N 60kW Interleaved Boost Converter User Guide (PDF)	01/2024
User Guide	PRD-07561: CRD07500AA12N-FMC 7.5 kW Motor Drive User Guide (PDF)	01/2024
User Guide	PRD-08373: 11 & 20 kW High-Efficiency Motor Drive Inverters User Guide (PDF) CRD-11DA12N-K & CRD-20DA12N-K	01/2024
User Guide	PRD-02282: CRD-22AD12N 22 kW Bi-Directional Active Front End (AFE) User Guide (PDF)	01/2024
User Guide	PRD-06975: XM3 Three Phase Inverter Reference Design User Guide (PDF)	01/2024
User Guide	PRD-06976: XM3 Three-Phase Dual Inverter Reference Design User Guide (PDF)	01/2024
User Guide	PRD-06981: CRD-06600DD065N 6.6 kW High Frequency LLC DC-DC Converter User Guide (PDF)	01/2024
User Guide	PRD-06982: CRD-02AD065N 2.2 kW Bridgeless Totem-Pole PFC User Guide (PDF)	01/2024
User Guide	PRD-01218: CRD-22DD12N 22kW Bi-Directional High Efficiency DC/DC Converter User Guide (PDF)	11/2023
User Guide	PRD-07560: CRD25DA12N-FMC 25 kW FM3 Three-Phase Inverter User Guide (PDF)	09/2023
User Guide	PRD-02490: CRD-06600FF065N-K 6.6 kW Bi-Directional Totem-Pole PFC AC-DC and CLLC DC-DC User Guide (PDF)	07/2023
User Guide	PRD-07229: CRD-60DD12N-K 60kW Interleaved LLC DC-DC Converter User Guide (PDF)	03/2023
User Guide	PRD-06616: CRD-0300AD065E-L 3.6kW Bridgeless Totem-Pole PFC User Guide (PDF)	09/2022
User Guide	PRD-05777: CRD-30DD12N-K 30kW Interleaved LLC DC-DC Converter User Guide (PDF)	03/2022
Application Notes	PRD-08907: Mitigating EMI with SiC Solutions in Renewable Energy & Grid-Connected Power Converters (PDF)	01/2025
Application Notes	PRD-06752: PCB Layout Techniques for Discrete SiC MOSFETs (PDF)	09/2024
White Papers	Designed to Last, Even in the Harshest Environments (PDF) New	11/2025
White Papers	Enhancing System Durability with Advanced Packaging for Silicon Carbide (PDF)	11/2025
Sales Terms	Wolfspeed, Inc. Sales Terms and Conditions (PDF)	04/2025
Product Catalog	Power Product Line Card (PDF)	01/2025
